the large output nitrate fertilizer gyratory separation equipment
- 100 Set / Sets per Month
- Shanghai Port
- T/T L/C D/P D/A Credit Card
You May Like
-
the large output magnesium nitrate NPFS gyratory screener
-
the large output sodium nitrite NPFS gyratory screener
-
Compound fertillzer separation processing equipment/large capacity process
-
the large output potassium bicarbonate NPFS gyratory screener
-
potassium salt gyratory separation equipment/large output
-
Agricultural potassium sulfate separation processing equipment/huge output process
Product Details
| Condition | New | Type | Other, nitrate fertilizer Gyratory separation equipment | |
| Product Type | Fertilizer | Place of Origin | Shanghai, China | |
| Brand Name | NAVECTOR Nitrate fertilizer separation processing equipment | Model Number | NPFS1030-2050 | |
| Voltage | 380V, 50HZ or customized | Power(W) | 1.5-11kw | |
| Weight | 2000kg-7000kg | Dimension(L*W*H) | 2000*5000mm | |
| Certification | CE/ISO/BV | Warranty | 13 month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The leader in the separation technology in China!
Full Technical support and Spares Service to keep your Lines Running.
potassium salt gyratory separation equipment NPFS Specifiction:
Model sizes | 500x1000,500x1500,1000x2100,1000x3000,1500x3000,1800x3600,2000x5000 |
Layer | 1~3 decks |
Mesh | Within 100 mesh |
Mesh material: | Stainless steel 304,316L,201,Nylon |
Using Range: | Agriculture |
Voltage: | 3 phase, 380V, 50HZ or |
Power: | 0-300W Adjustable |
Screening ratio | ≥95% |
Warranty: | 13 months |
Particle feed size: | 150micron up to 20 mm |
Feed rates: | Up to 65T/h |
Anti blinding systems: | - Rubber balls |
Motor power | 1.5kw,2.2kw,4kw,5.5kw,7.5kw,11kw |
NPFS potassium salt gyratory separation equipment Feature:
l handle both large capacity and fine mterial
l Low angle, Gyratory-Reciprocating Motion gently sifts the material
l Multi deck screeners produce several grades of product in one machine
l Totally enclosed with effective sealing for clean operation
l Durable constructon and wear-resistant impact areas for long life and continuous operation
Self-clean bouncing balls in place for increase of throughput
Plastic wrapping around for initial packing
Strong fumigated wooden case as master shiper
After-sale Service:
- 13 months guarantee for whole machine
- 24 hours technical online support
- onsite service

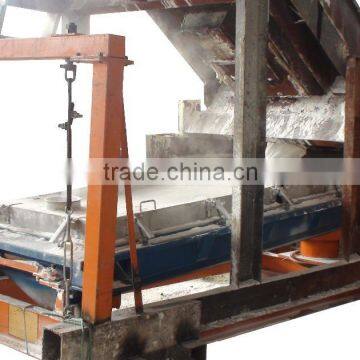

Case onsite
NPFS 1530/NPFS1836 Model separation equipment processing potassium salt grain
1. What the machine does?
Separate solids from liquids or segregate dry materials into various sizes.
3. Are there any self-cleaning devices on the sieving machine?
Yes, Bouncing/jumping ball or Ultrasonic system could be installed.
4. How many kinds of material are supported?
All stainless steel (201, 304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
5. What about the phase and the voltage?
0.12-0.55 kw single phase and three phase are both supported.
0.55-2.2 kw Three phase is just supported.
110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).
6. How long does the warranty last?
The warranty lasts 13 month (except for wearing parts: sealing strip, jumping ball and sieve mesh, etc.). Because the machine's usage life can very besed on uncertain circumstances.
7. Are OEM order and labeling services availiable?
Yes, OEM order and labeling services are supported. And we are seeking business partners throughout worldwide.
8. Whether the site visit is availiable?
Site visit is almost welcomed. Meanwhile, Navector will arrange the airport pick-up as per your schedule.
