Home > Products > Wind turbine > modeller designer wind turbine 230v wind turbine generator

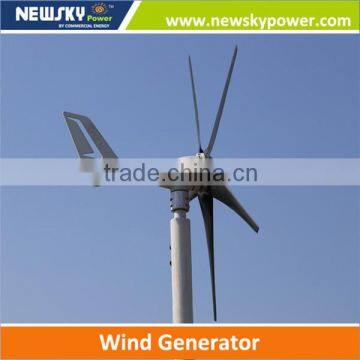

modeller designer wind turbine 230v wind turbine generator

FOB Price

USD $200 - $400 / Piece

1 Piece(Min. Order)

Port Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	Newsky
Model Number	Max600W		Type	Wind Power Generator

Product Description

Specifications

modeller designer wind turbine 230v wind turbine generator
1,Bearing from "SKF"
2,Easy installation,
3,Free of maintenance

modeller designer wind turbine 230v wind turbine generator

400W 600W 800W 1200W 1600W

Features: modeller designer wind turbine 230v wind turbine generator

1.Bearing from “SKF” Sweden.

2.Stainless steel screw bolt from “THE”.

3.Primary aluminum housing, not secondary aluminum.

4. Low start-up wind speed.

5.High-efficient Generator

6.Innovative Noise Reduction Technology

7.Perfect Wind Wheel System

8.Unique Design Of The Rudder

9. Damp-proof, sand-proof, Anti-rust, Anticorrosion

10 .Easy installation, Free of maintenance, Long lifespan over 15years.

Specification modeller designer wind turbine 230v wind turbine generator

Model	MAX 600W	MAX 800W	MAX 1200W	MAX 1600W
Rated power	600W	800W	1200W	1600W
Max power	750W	950W	1300W	1800W
Rated voltage	24 VDC	48 VDC	48VDC/110VDC	48VDC/110VDC
Rated current	25A	16.7A	25A/10.9A	33A/14.5A
Rated Rpm	650
Rated wind speed	12m/s
Blades	5 Pcs Nylon Fiber glass
Start-Up Wind Speed	1.5 ( m/s)	1.5 ( m/s)	2.0 ( m/s)	2.0 ( m/s)
Cut-In Wind Speed	2.0 (m/s)	2.0 (m/s)	2.5 (m/s)	2.5 (m.s)
Rotor Diameter	1.7 m	1.8 m	2.0 m	2.2 m
N.W	28.5KG	30KG	36KG	41KG
G.W	33KG	35.5KG	41KG	46KG
Shipping Dimensions	1690540290mm	1690540290mm	1890540290mm	1890540290mm
Mount	Flange connection
Turbine Controller	MPPT wind solar hybrid controller
Body	Cast aluminum
Overspeed Protection	Electromagnetic & blade aerodynamic braking
Working temperature	—40°C~ 150°C
Certificate	ISO9001:2008 ,CE, Rohs
Survival Wind Speed	50 m/s
Warranty	3 year limited warranty

Dimmensions modeller designer wind turbine 230v wind turbine generator

Power Curve

Pictures Show in Detail modeller designer wind turbine 230v wind turbine generator

Applications in Our Life modeller designer wind turbine 230v wind turbine generator

Certification

Work Shop modeller designer wind turbine 230v wind turbine generator
