Specifications

            steel pipe inner walls shot blast cleaning machine

Advantages:

1)New and high efficiency

2)rotary drum structure

3)suitable for all types of mass production of small and medium-sized casting, forging

4)particularly suitable for thin-walled parts

Product Introduction:

This machine is a new and high efficiency rotary drum type shot blasting machine , which is produced according to market demand by Shandong Kaitai Company, it takes rotary drum structure. When shots are projecting, the rotary drum will not only turns but also swing up and down, so the workpieces in drum won't clash with each other when they are turned completely, shot blasitng is more evenm cleaning time is reduced and efficiency is improved. It is suitable for all types of mass production of small and medium-sized casting and forging particularly suitable for thin-walled parts.

1,Rotary drum system, high efficiency blasting wheel, during shots projection, rotary drum can turn and swing up-down, workpieces stir but not clash with each other, shots projection is uniform.

2, It can process thin and slender workpieces, and the workpieces with possibility to be clawed.

3, Rotary drum structure adopts hydraulic control, equipment working process is stable and positioning is precise.

It is applicable to various industries casting and forging with weight below 15kg sand cleaning, rust removal, oxide skin removal and surface strengthening.

According to structure of workpieces rotating and swinging up-down in rotary drum, products in drum will stir completely.

Consist and structure feature

The device is mainly composed of front and rear sealing chamber, shot blasting chamber, blast wheel assembly, roller conveyor system, abrasive circulation purification system, dust removing system and electrical control system (see general drawing).Welded plate of the machine after shot-blasting processing, in order to improve the antirust performance and coating adhesion.

 Other roller throuth type shot blasting machine which also can be used to blast cleaning pipes Paramter will be found below:

If the above model not suit for your workpiece, please tell me your need and the following information then we will send you the best technical drawing to you.

1. The max. Length of the workpiece.

2. The max. Width of the workpiece.

3. The max. Height of the workpiece.

4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)

5. The power supply you need ( such as 380V, 3P, 50HZ)

6. Better to send us the workpiece photo or drawing.

4: Before and after the workpiece cleaning(Compare the photos)

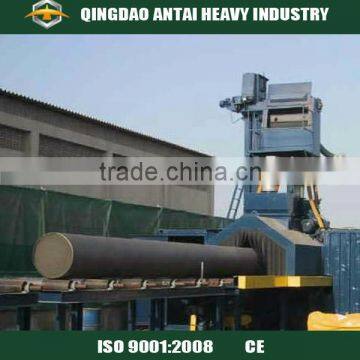

5:Machine photos:

6: Certification:

7:    Commercial terms for shot blasting machine:

1. MOQ: 1 set

2. Quality guarantee: 12 months from installation date

3. Payment term: 30% downpayment by T/T, 70% balance paid by L/C
