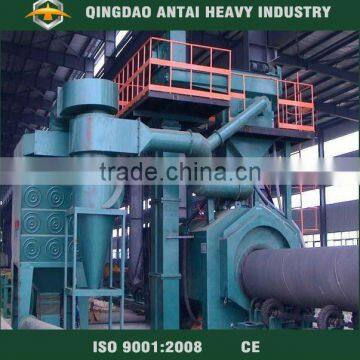

QGW10 steel pipe inner wall shot blast machine

Specifications

Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.

Detailed Product Description

1.Steel pipe inner wall shot blasting machine
2.Diameter from 17mm to 2000mm
3.Special roller conveyor
4.Tailor made shot blasting mach

QG series steel pipe inner/outer wall special purpose shot blasting machine is suitable for cleaning inner/outer surface of steel pipes, remove the scales and weld dregs, make it show metal color, increase its ratio surface and weld dregs, make it show metal color, increase its ratio surface area, and thus contribute to painting and coating.

Scope of the steel pipe: Diameter from 10mm to 2800mm

Technical Specification:

Model: QGW 10

1. Pipe diameter: Φ19- Φ 77 mm

2. Pipe length: 7620

3. Pipe moving speed: 18.3-30.5 m/min

4. Ventilation of dust collector: 5000 m³/h

Technical parametes:

notice :

According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.

1.what kind of workpiece will you clean ?

2.The workpiece size,length ,width and height of maximum workpiece?

3.How many workpiecs do you want to clean per day ?

Based on this question,the detailed technical proposals will be sent to you for reference.

1.Production time of 40 days steel pipe shot blasting machine

2.Installation and commissioning time:20 days

3.installation and commissioning issue:Antai will send 1-2 technicians to help with machine installation

and commissioning for our shot blasting machine,customer pays for their tickets,hotel and diet Salary is USD

70 per day per person.

4.warranty time of shot blasting  machine:12 months from date of commissioning completion,but no more

than 18 months from date of delivery.

5.Payment term:30% as down payment,70%balance at sight of B/L copy before delivery

6.Antai supply full english (or Russian)documents,including general installation drawing,pit design drawing,

manual book,electric wiring diagram,electric manual book and maintenance book ,etc
