Home > Products > H beam shot blast machine > Q69 Opening Size 800*1600 h beam shot blasting machine

Q69 Opening Size 800*1600 h beam shot blasting machine

FOB Price

USD $30,000 - $60,000 / Set

1 Set(Min.Order)

Supply Ability 150 Set / Sets per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Antai	Model Number	Q698
Feature	Critical Cleaning / Residue Free, Rust / Corrosion Inhibitor	Fuel	Electric
Certification	CE, Other, CE, ISO BV	Use	Burnishing, Descaling / Stripping
Cleaning Process	Other, Steel shot	Cleaning Type	Other, Shot blasting
Industry Used	Other, Steel plate and H beam cleaning	Material	Metal / Coil
Power(W)	90kw	Dimension(LWH)	2501745009015 mm
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Design based on requirment
2.Prompt delivery
3.Competitive price
4.Roller conveyor
5.Pass through

Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.

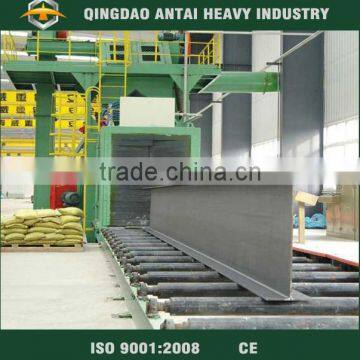

H beam shot blasting machine:

shot blasting machine for h beam is designed and produced by adopting the advantages of similar products from both within the country and abroad. The rusting cleaning part (shot blasting) adopts high-efficient blast wheel and full shutter type shot sand separator. The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator. The preheating and drying part of shot blasting machine may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method. The complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced.

QH69 shot blasting machine is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts.

Shot blasting machine Technical Specification:

Technical parameter of pass-through type shot blasting machine Q69
No.	Model Item		Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
1	Width of workpiece	mm	800	1200	1500	2000	2500	3000	4000
2	Size of inlet opening	mm	800* 1600	1200* 400	1500* 400	2000* 400	2500*800	3000*800	4000*400
3	Length of workpiece	mm	1200- 12000	1200- 6000	1200- 12000	1200- 12000	3000-12000	2400-12000	4500-18000
4	Roller speed	m/min	0.5-4	0.5-4	0.5-5	0.5-4	0.5-4.5	0.5-4	2-8
5	Thickness of plate	mm	3-60	3-60	1.5-60	3-60	3-60	3-110	4.5-110
6	Abrasive flow rate	kg/min	8*120	4*250	4*250	6*250	6*250	6*360	8*360
7	Abrasive initial fill	kg	4000	4000	4000	4500	4500	8000	11000
8	Adjusting height of rolling brush	mm	400	200	350	450	600	850	900
9	Ventilation capacity	m3/h	22000	17560	19000	19550	27758	28050	38000
10	Total power of shot blast machine (no dust collector)	kw	90	78.3	113.6	156.6	224.55	204.8	293.6

notice :

According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.

1.what kind of workpiece will you clean ?

2.The workpiece size,length ,width and height of maximum workpiece?

3.How many workpiecs do you want to clean per day ?

Based on this question,the detailed technical proposals will be sent to you for reference.

1.Production time of 40 days h beam shot blasting machine

2.Installation and commissioning time:20 days

3.installation and commissioning issue:Antai will send 1-2 technicians to help with machine installation

and commissioning for our shot blasting machine,customer pays for their tickets,hotel and diet Salary is USD

70 per day per person.

4.warranty time of shot blasting machine:12 months from date of commissioning completion,but no more

than 18 months from date of delivery.

5.Payment term:30% as down payment,70%balance at sight of B/L copy before delivery

6.Antai supply full english (or Russian)documents,including general installation drawing,pit design drawing,

manual book,electric wiring diagram,electric manual book and maintenance book ,etc
