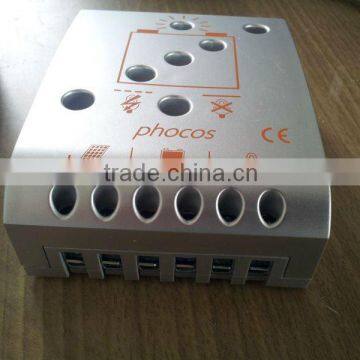

Phocos CML 5A/ 8A /10A /15A /20A 12V/24V Solar Charge Controller

Specifications

12V/24V Phocos Solar Charge Controller (5A/8A/10A/15A/20A)

Feature:

•Battery   State-of-Charge display with 3LEDS

•Acoustic load disconnect pre-warning

•PWM-regulation (series type)

•Boost,   Equalize and Float charging, also for VRLA

•Automatic    12/24V detection

•Integrated    temperature   compensation

•Large   terminals (up to 16 mm wire size)

•SOC and voltage controlled LVD

•Fully electronically protected

The CML series is a sophisticated solar charge controller family for low cost applications. The electronic circuit  is equipped with a microcontroller that provides high- efficiency charging technology together with a number of outstanding status display, warning and safety functions. The temperature-compensated three-stage PWM charging method (boost-equalization-float) is now adjustable to sealed and vented lead-acid batteries. The new version  also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearly indicated by three LEDs. As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre- warning feature
