Home > Products > Video TeleConferencing Camera > USB3.0 Web Conference PTZ 1080p@30fps | UVC/VISCA Control| 10x Optical Zoom | HOV 51.8 degree| USB3.0 YUY2,micro usb camera
USB3.0 Web Conference PTZ 1080p@30fps | UVC/VISCA Control| 10x Optical Zoom | HOV 51.8 degree| USB3.0 YUY2,micro usb camera
- ShenZhen
- T/T L/C D/P D/A Credit Card
You May Like
-
HD 1080p PTZ video conference camera Compatible With W7 W8 Linux MAC OS Web Video Conference System
-
HD SDI Video Conference PTZ Camera With 20x Optical Zoom For Web Conferencing System
-
HD HDMI Conference Camera Compatible With W7 W8 Linux MAC OS Web Video Conference System
-
HD PTZ Conference Camera With 20x Optical Zoom For Web Conferencing System
-
HD PTZ Video Camera Supports VISCA Protocol For PTZ Control Using RS232 RS485 Protocols
-
HD Pan/Tilt/Zoom Camera Supports VISCA Protocol For PTZ Control Using RS232 RS485 Protocols
Product Details
| Brand Name | Oneking | Model Number | HD380-U30-K2 | |
| High Definition Support | 1080P (Full-HD) | Media Type | HDD / Flash Memory | |
| Optical Zoom | 10x - 20x | |||
| Color | Black | Place of Origin | Guangdong, China |
Product Description
TelePresence Precision Camera for tele conference room and distance learning
Features:
- Private Tooling design High Definition PTZ camera
- Fast and smooth video handling
- Work & Standby LED indicator
- Speed Match
- Auto/Manual focus/brightness/WB
- RS-232C/VISCA Protocol
- Lens/Dome OSD menu
- Boundary scanning
- Swap video format button
- USB3.0 Video output
- Pin 6 to receive IR signal
Performance:
- 1/2.5"Primary CMOS, 2.1 M compatible
- 10xoptica zoom
- f = 4.5 –45 mm F1.8 – 2.2
- HOV 51.8° degree
- 1920x1080p@30
- Pan ±175°
- Tilt±120°
- 64 preset positions
- 4 cruise lines
- DC 12V, 2A

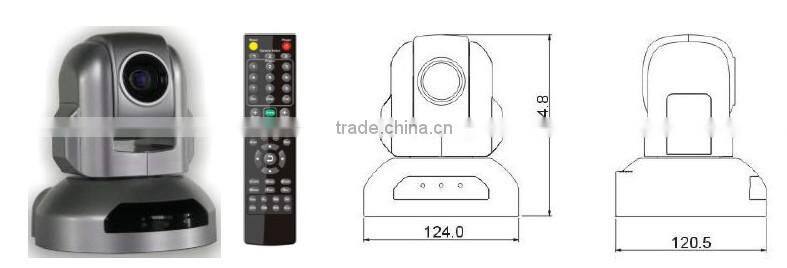

Dimension:
- L 124mm x W 120mm x H145mm
- 220x175x220mm (Package)
- N. Weight: 1.4kgs
- G. Weight: 1.7kgs
Installation:
- Desktop
- Ceiling mount
- Standard Tripod accessory
video conference camera specifications:
Image Sensor | Sensor | 1/3" Primary CMOS, 2.1 M compatible |
Minimum Scene illumination | 0.1Lux at | |
White Balance | AUTO/Manual | |
Gain Control | AUTO | |
Back-light compensation | ON/OFF | |
Electronic shutter | 1/5~1/4000S | |
S/N Ratio | >50db | |
Lens | Focus | AUTO |
Iris | AUTO/Manual | |
Zoom | 10 X Optical ZOOM | |
f = 5 – 50mm F1.8 – 2.2 | ||
Horizontal Angle of view | 51.8 | |
Video Output | USB3.0 | |
Video format | 1080P@30,1080P@25, 1080I@60,1080I@50,720P@60,720P@50 | |
Control Decoder | EIA/RS-485 | |
Communication | EIA/RS-232(Bidirectional) | |
PTZ Control Protocol | VISCA,PELCO-P,PELCO-D | |
Baud Rate | 9600/38400 bps | |
Patrol tours | 4 | |
Preset | 64 | |
Save status after Power off | Support | |
Speed Matching Function | Support | |
OSD Menu | Support | |
Image Auto Flip | Support | |
Pan Speed | 0-100 degrees/s | |
Tilt Speed | 0-80 degrees/s | |
Pan Rotation Angle | 359degrees | |
Tilt Rotation Angle | 240degrees | |
Auto Pan Scan | Support | |
Boundary Scan | 0-359degrees(Programmable) | |
Remoter Control | IR Wireless remote control P/T/Z | |
Power | DC12V ±10% 1.2A | |
Operation Temperature | -10~60 | |
Environmental humidity | 0-95%RH(non-condensation) | |
Length X width X high | 124x120x145mm/220x175x220mm(NET/PACKAGE) | |
Weight | 800g/1300g(NET/PACKAGE) | |

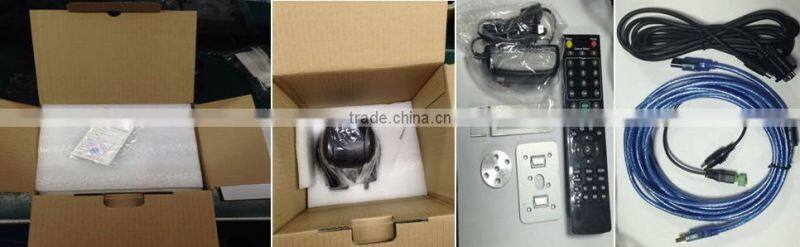

Accessories kits in package:
- 1x HD 380 Video Camera
- 1x DC 12V/2A Power Adaptor
- 1x User’s manual
- 1x Installation brackets & screws
- 1xIR Remote Controller
