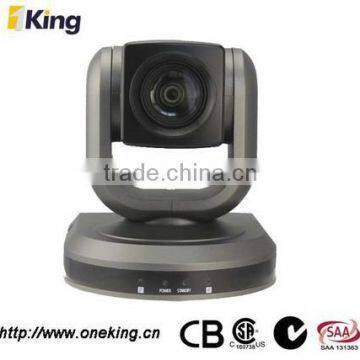

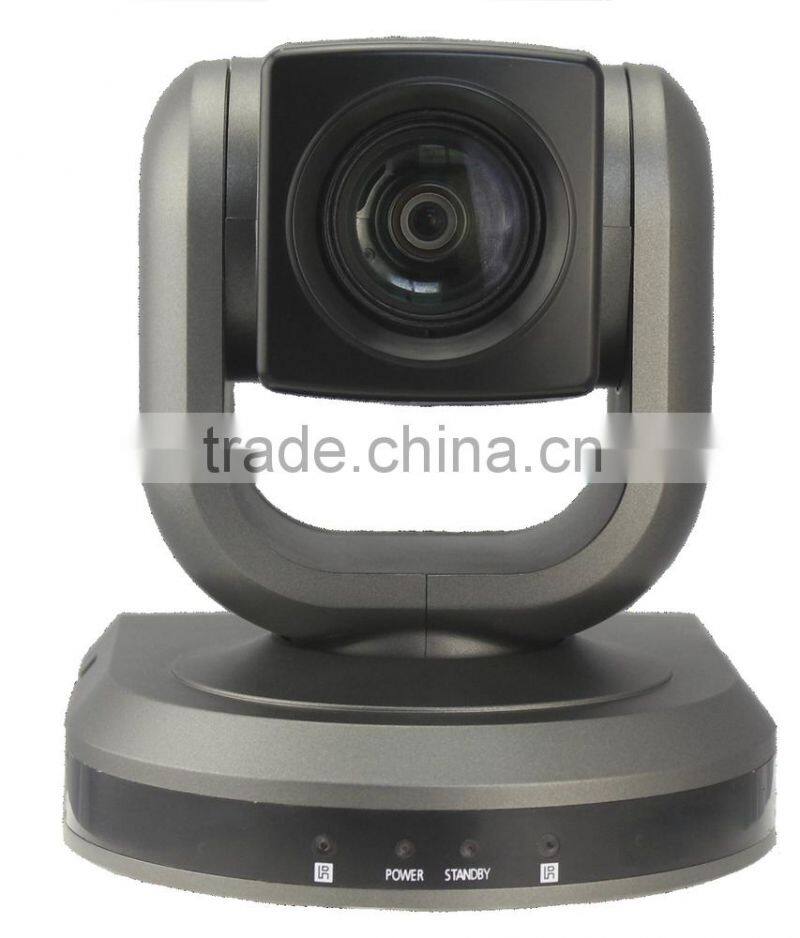

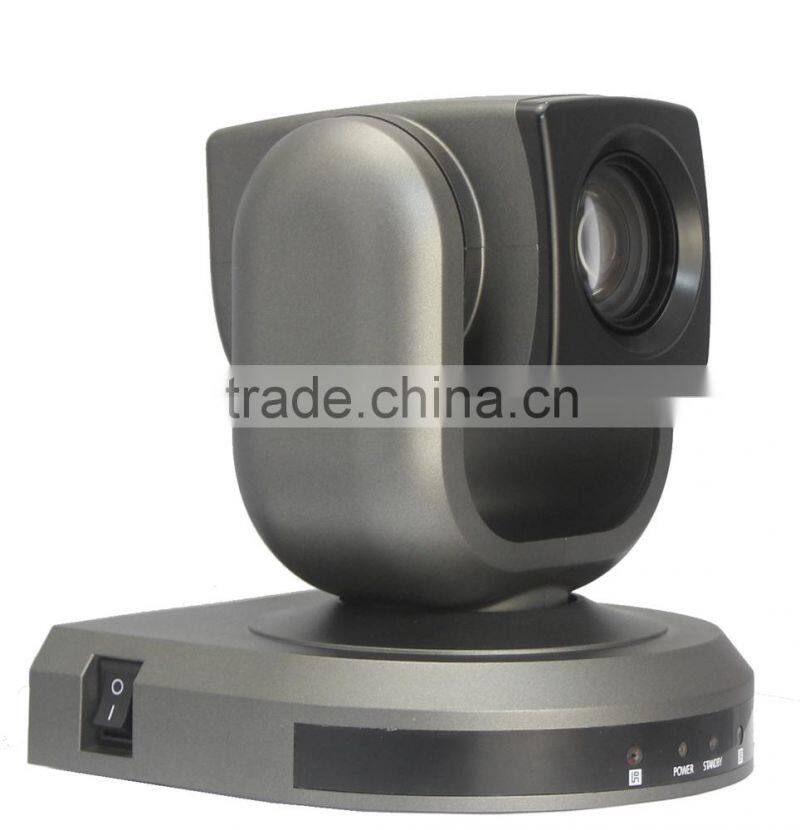

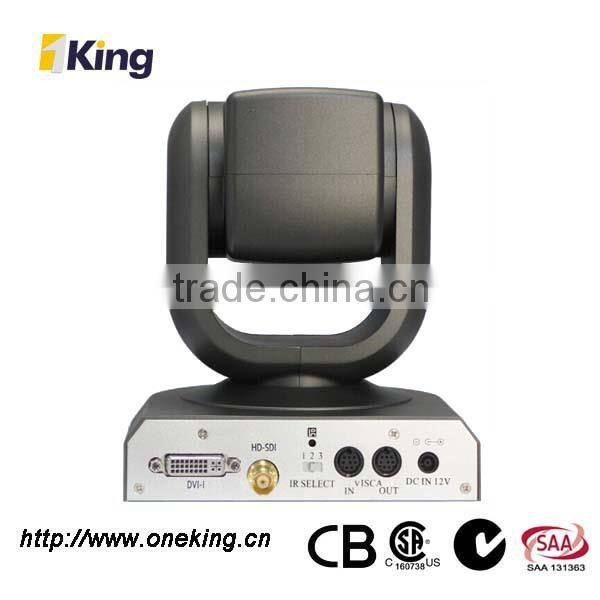

20x full DVI-I camera for skype


Sensor

Sensor

1/2.8” Progressive CMOS

Effective Pixels

2.1 Mega Pixel

White Balance

Auto /Manual /Indoor /Outdoor

Minimum  Illumination

0.5 Lux at F1.6

Back-light compensation

On/Off

S/N Ratio

>50db

Shutter speed

1/1s - 1/10,000s

S/N ratio

>50dB

Lens

Focus

f=4.7-94 mm

Hov

55.4°-2.9°

Zoom

20 Optical Zoom

Video Output

10M/100M LAN

Network protocol

PPPOE,TCP/IP,DHCP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,STP,DDNS,DNS

Video output formats

1080P60,720P60

Audio Input

MIC

Audio Output

linear

Communication control interface

RS-485

Communication control protocol

PELCO-D  VISCA

Baud Rate

9600bps

Preset

64

Patrol tours

4

Speed Matching Function

Pan/Tilt movement speed depends on camera module zoom in/out

OSD Menu

Access to OSD Menu and adjust camera module parameters

Image Auto Flip

Support Horizontal/Vertical image flip

Pan Speed

0-120 degrees/s

Tilt Speed

0-150 degrees/s

Pan Rotation Angle

355 degrees

Tilt Rotation Angle

+ 90 degrees, - 45 degree

Auto Pan Scan

Support

Boundary Scan

0-359 degree(Programmable)

Remoter Control

IR Wireless remote control P/T/Z

Power

DC12V±10%,1.2A

Operation Temperature

0℃~50℃

Length X width X high

250mm×140mm×154mm

Weight

1380g
