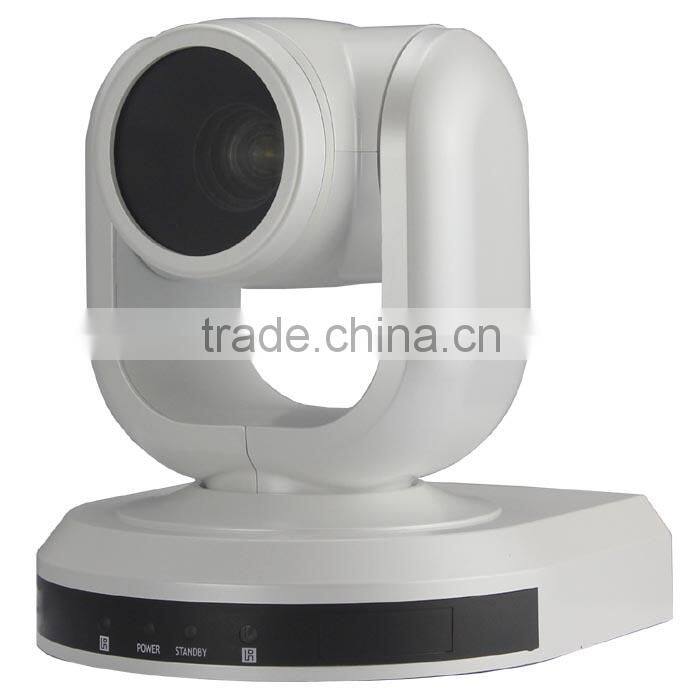

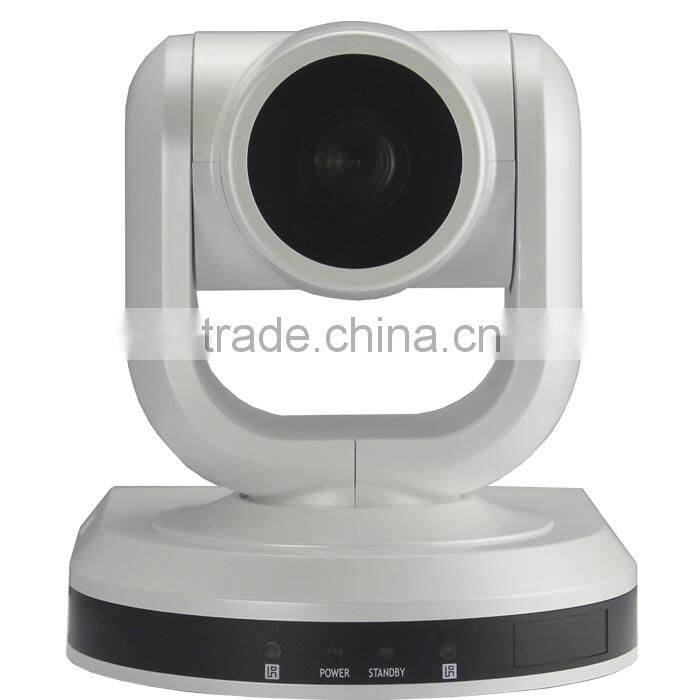

Telecommunication Equipment Ptz Webcam for Video Conference

Model No.

HD910-U30-K2

Sensor

Image Sensor

1/3" SONY CMOS

Effective Pix

2.1 Megapixel

Min. Illumination

0.1Lux

White balance

Auto/Manual

Gain control

Auto/Manual

Backlight compensation

On/Off

Shutter speed

1/1 - 1/10,000S

S/N ratio

>50db

Lens

Focus

f=5-50mm

Iris

Auto/Manual

Lens

10 Optical zoom

Horizontal view angle

51.8-5.86

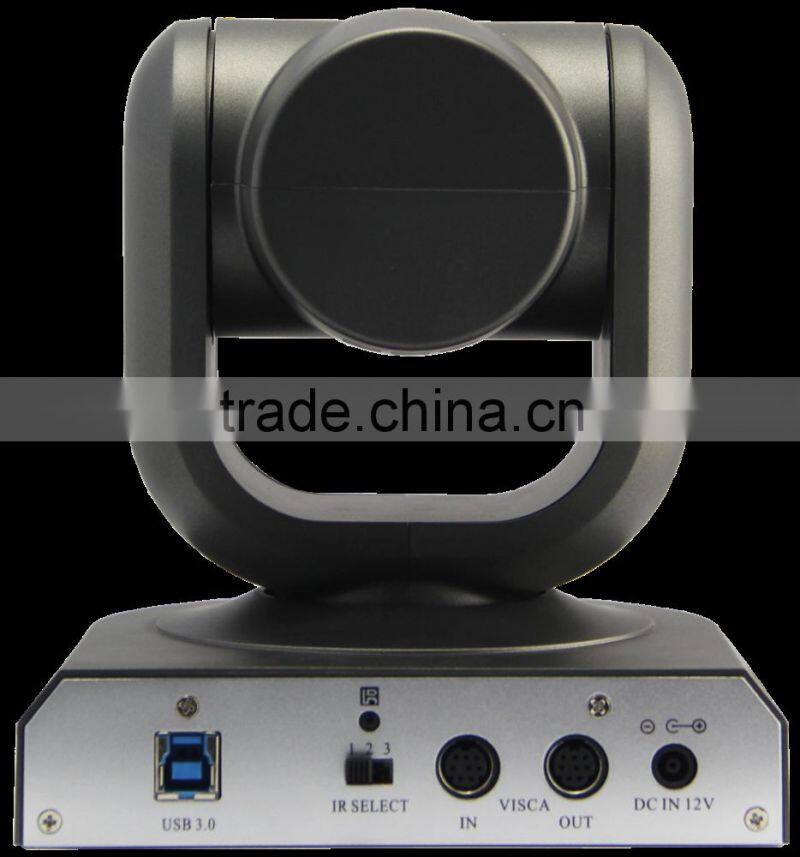

Video output

USB 3.0

Signal system

USB 2.0:1080P@30/25/20/15/10/5

720P60,720P50

Control terminal

EIA/RS232C,EIA/RS485(Bidirectional) USB

Control Protocol

VISCA,PELCO-D

baud rate

9600/38400bps

patrol line

4 cruise sequence

preset position

64 preset positions

Speed Match

Pan/Tilt movement speed depends on camera module zoom in/out

OSD Menu

Access to OSD Menu and adjust camera module parameters

Image auto flp

Support Horizontal/Vertical image flip

Pan movement speed

1-60°/Second

Tilt movement speed

1-60°/Second

Pan movement range

Pan: 0-355°

Tilt movement range

Up: 90°, Down: 45°

Pan scanning automatically

Support Pan scanning automatically

Boundary scanning

0-355°(programmable)

Remote controller

IR Wireless Remote controller P/T/Z

Power supply

DC12V,2A

Work Temperature

0-50℃

Humidity

0-95%RH

LxWxH

145mm x 148mm x 160mm

Weight

1100g

Symptom

Cause

Remedy

The power of the camera is not turned on.

The supplied AC power adaptor is not connected to the DC IN 12V jack firmly, or the AC power cord is not inserted firmly into the AC power adaptor or the AC outlet.

Insert the power cord firmly as far as it will go.

Not Turn On the Power switch as “ON”.

Turn On the Power switch as “ON”.

Insufficient frame rate detected

Cannot recognize USB 3.0 connection, but the USB 2.0 speed.

Make sure you connected USB 3.0 Cable, USB 3.0 connect, and firmly connect to USB 3.0 interface.

Pan,tilt or zoom cannot be operated.

Any menu is displayed on the monitor screen.

Press the “Dome OSD” OR “Lens OSD” on the Camera remote control Unit to turn off the menu from the monitor screen.

The panning or tilting range is limited

Pan/Tilt movement range is ± 45 degree.

The Remote Commander does not work.

The Camera Select button you pressed on the Remote Commander does not match the number set with the IR SELECT switch on the camera.

Press the Camera Select button corresponding to the IR SELECT SWITCH setting on the Camera.

Used out of battery

Change new battery (AA x 2)

The VISCA control is not available with a computer connected to the camera.

The computer is not correctly connected to the camera.

Make sure the connection between the computer and camera is made correctly.

Check that the VISCA control setting (RS-232C or RS-422) and the baud rate setting (9600 bps or 38,400 bps) are properly made with the BOTTOM switch on the bottom of camera and the COM Port which configured in your computer.

The camera cannot be operated at all.

Pull out the plug of the power cord from the AC outlet, then reinsert it into the AC outlet after a while.
