Home > Products > CCTV camera > Super CCD Mini IR PTZ Camera for CCTV Survelliance

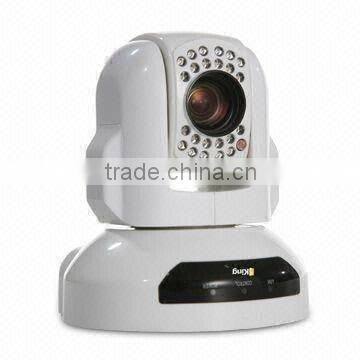

Super CCD Mini IR PTZ Camera for CCTV Survelliance

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Oneking
Model Number	D360	Type	Other, Analog Camera, CCTV PTZ Camera
Style	Mini Camera	Sensor	CCD
Technology	Infrared

Product Description

Specifications

Super CCD Mini IR PTZ Camera
1/4" Sony CCD, 420TVL IR, 30M IR Distance High Speed Dome PT 355 de pan & 180 de tilt rotation

We are the professional manufacturer of PTZ IP/ CCTV IR Dome Camera ------

Basic Features of D360 CCTV IR Dome Camera :

l 1/4" SONY CCD

l 10 Optical x 10 Digital zoom 480-530TVL, support SONY, SAMSUNG, Oneking Cam modules

l 360 degree Pan Continuously & 180 degree Tilt

l 64 preset positions, 4 Patrol cruise

l OSD Menu of lens and camera on screen

l RF remote control for optional (USD 8.00)

l Support Wall/Ceiling mount

Easy Install]

* DIY Wall & Ceiling mounts

* Manual in CD with products and necessary accessories in package

* OEM Packages and manual book

Super CCD Mini IR PTZ Camera for CCTV Survelliance

Additional advantages:

1. Private tooling for OEM/ODM project, we could put your logo on software and products for free under mass production (attached the logo for example).

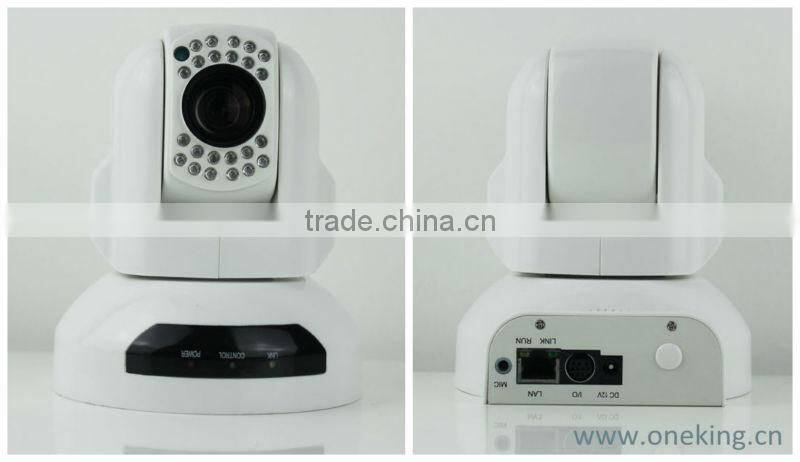

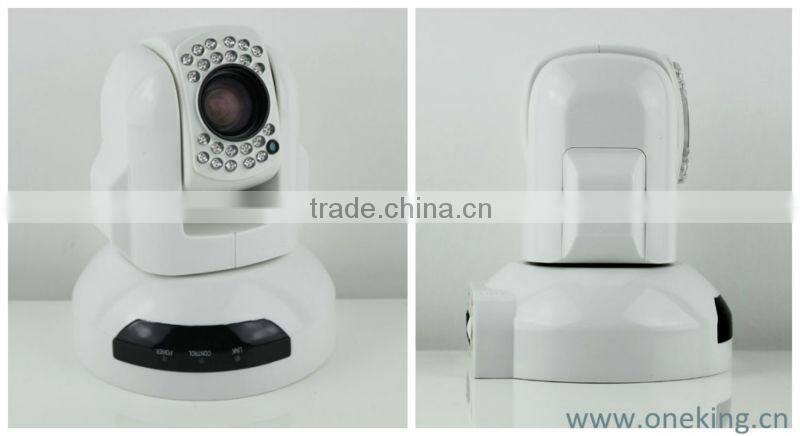

PTZ MINI Camera Details:

The Analogy PTZ CCTV Camera -Package Box:

Analogy CCTV Camera Spec sheet:

Model Number:D360

CCD	1/4" SONY CCD
Signal System	PAL/NTSC
Minimum Scene Illumination	0.05Lux
White Balance	AUTO/Manual
Gain Control	AUTO
Back-light compensation	On/off
Electronic shutter	1/50-1/120,000S
Horizontal resolution	480/540 TVL
S/N Ratio	More than 60 dB
Lens	Focus	AUTO
	Iris	AUTO/Manual
	Lens	10 Optical(sumsung LENS:10 Optical X 10 digital)
		f=3.9-39.0mm, F1.2
Video Output		VIDEO: VBS: 1.0Vpp at 75 ohm;
Control Decoder		Built-in
Communication		EIA/RS-485
		EIA/RS-232( Bidirectional)
PTZ Control Protocol		PELCO-P,PELCO-D
Baud Rate		4800/9600bps
Patrol tours		4
pattern tours		4
Preset		64
Privacy Mask Zone		4
Save stataus after power off		support
Speed Matching Function		Support
OSD Menu		Support
Image Auto Flip		(SUMSUNG LENS:Support)
Pan Speed		0-280 degrees/s
Tilt Speed		0-100 degrees/s
Pan Rotation Angle		360 degrees continuously
Tilt Rotation Angle		180 degrees
Auto Pan Scan		support
Boundary scan		0-359 degrees (programmable)
Remoter Control		RF Wireless remote control P/T/Z
Power		DC12V+-10% 1.2A
Operation Temperature		0°-60°C
Environmental humidity		0 - 95%RH(non-condensation)
Lengthxwidthxhigh		124X120X145mm/165x145x160mm(NET/PACKAGE)
Weight		800g/1300g(NET/PACKAGE)

Other optional:
