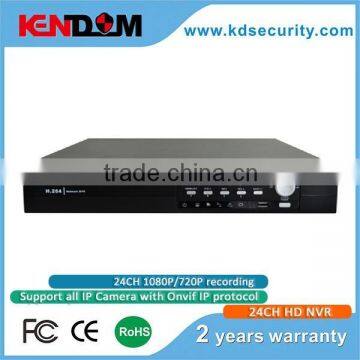

24CH Network Video Recorder

 GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly

 ONVIF standard protocol(Onvif agreement with standard)can be connected with the front –end IPC protocol support onvif.

Support Strong cloud service(specialized website for super cloud service:),one step to do remote control easily

 Support 8CH 1080P/16CH 960P  recording.

 Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.

 Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view

 Multiple record mode:Auto continuous,timing recording  ,motion detection , trigger alarm recording mode

 Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play

 Support drag the progress bar can be targeted playback time directly

 Support Multiple channel playback (Support 2CH 1080P/4CH 960P  playback simultaneously, each channel can be enlarge to full screen)

Powerful net service:support IE browser(built -in)and sub-control software to monitor and manage network focused on multiple DVR

 Strong network function:support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,IP authority,IP search,alarm center,etc,complete enclosure (WEB,CMS,SDK),to easily achieve interconnection.

 Supports remote surveillance up to 10 users simultaneously via the Internet Explorer web browser

 Supports Multiple backup mode: USB flash drive,USB hard disk and network backup

 Support pre-alarm recording (before 10 sec),not lose any suspicious screen

 Support two SATA HDD

 Support Mobile phone remote view by Symbian;Windows Mobile;Android system;Iphone;Blackberry.

 Support High-Definition VGA and HDMI(1080P) output.

 Support IR remoter controller

 Support twenty kinds of language.

 System auto recovery to power after power reconnected,and return to the pre-power-down state

Video Compression Format

H.264

Video Standard

NTSC / PAL

GUI OSD

YES

Video Input

24CH 1080P / 32CH 960P

Video Output

1CH VGA &HDMI output

Audio intercom

YES

Image Quality Setting

Supper Best,Well,Very good,Well,Good Common

Hard Disk Storage

Support  4 SATA HDD,

Alarm Input/Output

16 CH Input/2 CH Output

Multiplex Operation

Live display/record/playback/backup/network transmit

Recording Mode

Manual/Timer/Motion detection/alarm

Playback Mode

Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set.

Backup Device

USB flash drive,USB hard disk,USB  and network backup

Pre-alarm Recording

Recording for 10 seconds before alarming

Network Protocol

TCP/IP,PPPOE ,DDNS ,FTP,NTP and UPNP

Ethernet remote view

Support remote surveillance up to 10 users simultaneously

CMS software

YES

Mobilephone View

YES

Electronic zoom

YES

VGA Interface

YES

Log record function

YES

Image Tour

YES

IR Remote control

YES

Video Loss Detection

YES

Video Adjustable

Hue /Saturation /Contrast /Brightness adjust

PTZ Control

1CH 485

USB Mouse

YES

Power Source

DC 12V

Key Lock(Password Protection)

YES

Power-down recovery function

YES

Size(mm)

370(W) x 285(H) x 72(D)
