Home > Products > Alarm Camera > Kendom HD Alarm Cctv Camera Price List 1MP/1.3MP/2MP AHD Camera ALARM Cctv Camera With Sound 6-8M Motion Detection

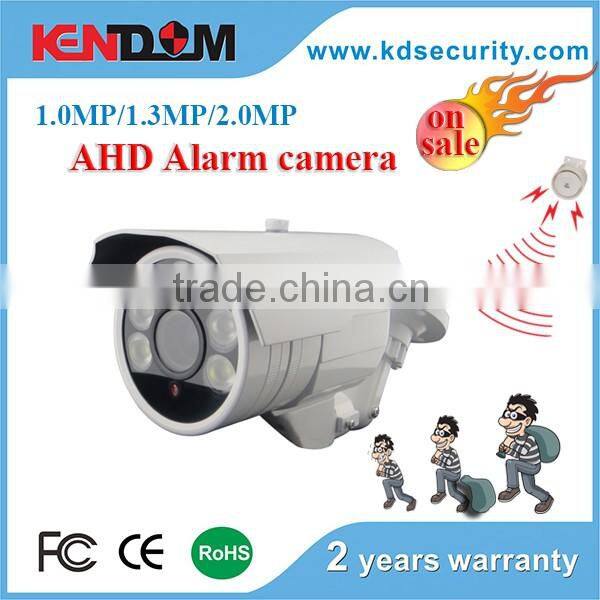

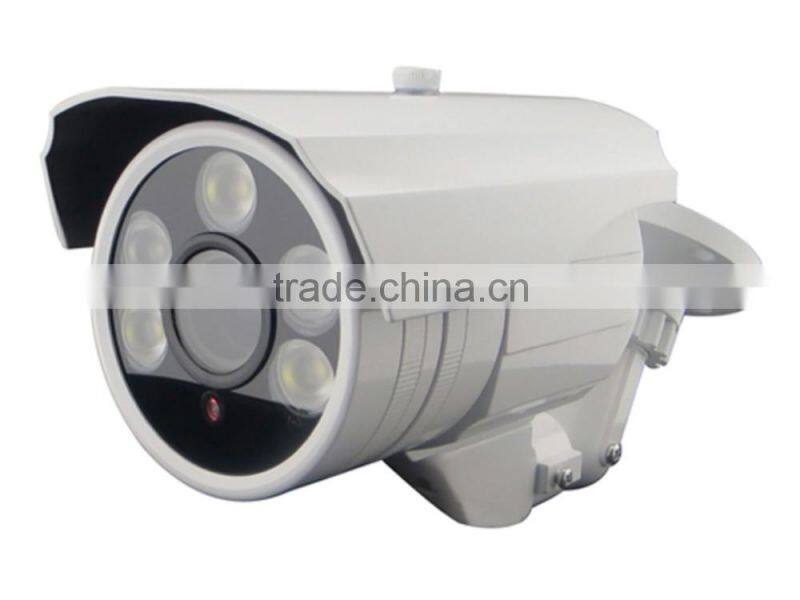

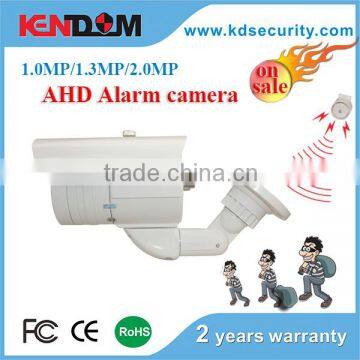

Kendom HD Alarm Cctv Camera Price List 1MP/1.3MP/2MP AHD Camera ALARM Cctv Camera With Sound 6-8M Motion Detection
- Shenzhen
You May Like
-
Kendom Unique Design Alarm Siren Camera Oem Cctv Security Camera 2 Years Warranty Rohs Cctv Camera
-
Kendom Hottest Casing Alarm CCTV Camera AHD Huge Size Bullet 1080p Night Vision Action Camera in Popular Security Alarm System Quality Choice
-
Low Price Cctv Bullet Camera Kendom Cctv Camera China Metal Waterproof 2.8-12mm Lens Cctv Camera in Dubai
-
Kendom Outdoor KD-AC6056BF HD Megapixel Alarm Camera Series Best Price Sony Cctv Camera Metal IR Cut Bullet Japan Cctv Camera
-
Kendom Low Cctv Camera Price List in Kolkata Cctv Dome Camera Analog Alarm New Model Cctv Camera
-
Top 10 Cctv Camera Factory China Kendom the Cheapest Analog Camera China Outdoor Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | Kendom | |
| Model Number | KD-AC4070BV-AH | Type | Other, Alarm Camera | |
| Style | Bullet Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Other, Waterproof / Weatherproof, Plug and play technology(P2P) |
Product Description
Kendom HD Alarm cctv camera price list 1MP/1.3MP/2MP AHD Camera ALARM cctv camera with sound 6-8M Motion Detection
Ⅰ.Alarm Camera's advantages:
1. Frighten intruder: Designed to frighten intruder enter your place at night.
Strong LED light will irradiate the intruder enter your place at night
2. Motion detect: Designed motion detect function
3. Color Video: Get clearly color video if intruder enter at night
4. Warning: Warning signal will show on your monitor
5. Energy saving: Take it as energy saving lamp, as only people move it will open.
Ⅱ.How to use alarm Camera
1. The alarm camera’s LED light will open 20 seconds for self-test once connect the power, then close.
2. Then all operate steps like normal analog camera.
When the IR led open at dark environment, if any intruder enter, strong LED light will irradiate the intruder for 20 seconds, if he keep moving the strong LED light will always irradiate him.
3.Detect level: Set the detect sense level(distance): OSD menu—Motion Det (ON)—Detect Sense
CCD Sensor: (default is 120, you can adjust from 0 to 127)
If<120 detect sensitivity is low, detect distance is short.
If>120 detect sensitivity is high, detect distance is long.
CMOS Sensor: (default is 70, you can adjust from 0 to 99)
If<70 detect sensitivity is low, detect distance is short.
If>70 detect sensitivity is high, detect distance is long.
4.Tracking signal,
If your alarm camera has OSD cable, you can set the tracking signal shows on your monitor. OSD menu—Motion Det (ON)—Block Disp (ON)
5.Siren function:
If you your alarm camera have siren function, connect the siren to the OSD cable. When the white Leds switch on the siren will working, when the white leds switch off the siren will switch off.
Ⅲ.Applications
Places need to frighten intruder
Places need higher quality color video recording at night
Places need light and energy saving.
Product Features:
1) Resolution: 1.0MP/1.3MP/2.0MP
2) Alarm DSP: designed by Kendom
3) White Leds:3pcs powerful white leds
4) IR Leds: 2pcs powerful IR leds
5) IR Range: 20-30M IR Range
6) Lens: 2.8-12mm HD fixed lens
7) OSD menu, 3D DNR, Smart IR
Technical Parameter:
Model | KD-AC4070BV-AH | |||
Type | AHD Alarm Camera | |||
Item No. | KD-AC4070BV-AH23 | KD- AC4070BV-AH22 | KD-AC4070BV-AH15 | KD-AC4070BV-AH12 |
Horizontal Resolution | AHD 2.0megapixel | AHD 2.0megapixel | AHD 1.3megapixel | AHD 1.0megapixel |
Effective Pixels (HxV) | 1920(W)*1080(V) | 1920(W)*1080(V) | 1280(W)*960(V) | 1280(W)*720(V) |
Signal System | PAL / NTSC | |||
Image Sensor | 1/3"Sony IMX322 | 1/3"AR0230 | 1/3"Sony IMX238 | 1/4"AR0141 |
Alarm IC | Kendom20IC | Kendom20IC | Kendom13IC | Kendom10IC |
Mini Illumination | 0.02lux(IR off) | 0.05lux(IR off) | 0.02lux(IR off) | 0.05lux(IR off) |
Lens | 2.8-12mm HD Vari-focal lens | |||
IR LEDs | 3pcs powerful led lamps, 2pcs powerful IR led(new) | |||
Night Vision | 25-35M | |||
OSD | 0~99(default 70) | 0~99(default 70) | 0~99(default 70) | 0~99(default 70) |
OSD | OSD | OSD | OSD | OSD |
WDR | WDR | D-WDR | D-WDR | D-WDR |
DNR | 3D-DNR | 3D-DNR | 3D-DNR | 3D-DNR |
AES | PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec | |||
S/N Ratio | > 48dB(Auto Gain Off) | |||
BLC | On/Off | On/Off | On/Off | On |
AGC | Auto/Manual/Off | Auto/Manual/Off | Auto/Manual/Off | Auto |
White Balance | ATW/Manual/Auto | ATW/Manual/Auto | ATW/Manual/Auto | ATW |
Operating Temperature | -10 ~ 50℃(relative humidity: max95%) | |||
Power Voltage | DC12V±10% | |||
IP range | IP66 | |||
Material | Aluminum alloy | |||
Weight | 1.17 KG | |||
Dimension | 255(L) x95(W) x150(H)mm | |||
Product Features:
1.) Alarm Dome Camera
2.) Lens: 3.6/6mm HD lens
3.) IR Leds: 28pcs IR leds
4.) White Leds: 28pcs white leds
5.) IR/White leds range: 30M
6.) Material: Metal
7.) Color: White
8.) Weight: 0.77kg
9.) Size:120(L)x120(W)x100 (H) mm
Main Features:
• Maximum resolution reach 2MG(1920×1280) @ 25 fps, video output full HD 1080p real-time
• H.264 video encoding
• Support dual-stream, Support 32K ~ 8M adjustable, frame rate 1-30 frames / sec adjustable
• Support WEB configuration
• Support Iphone, Android, Windows Mobile View
• Support OSD, Support for real-time video transmission
• Support motion detection and IO alarm linkage front-end storage / capture
• Support for front-end storage playback / download
• Support motion detection and IO linkage reminders and screen linkage
• Supports MJPEG capture Support remote management software for unified client,
• providing the perfect SDK development package
• Casing use high quality plastic material, full IP66

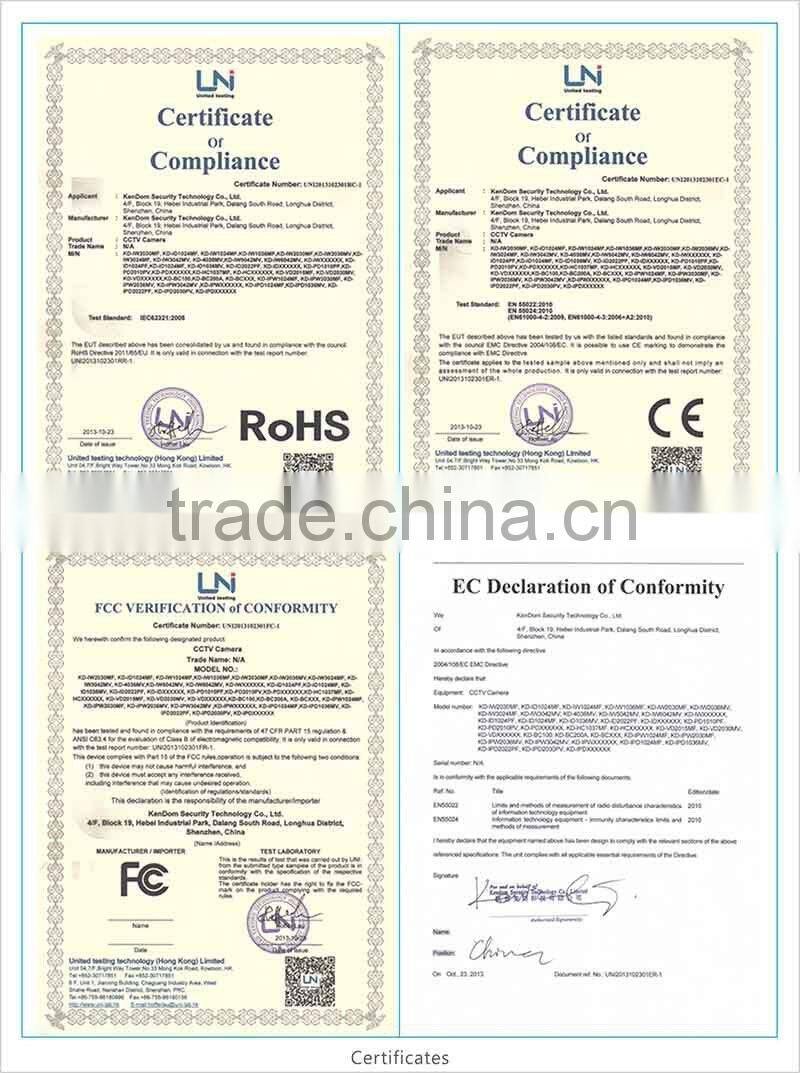

Certifications:
Warranty
a.24 Months From Shipping Date;
b.24 Months, any defective product caused by non-artificial reason we will get repaired or replaced for free;
OEM & ODM Services
a. Including Label,Manual,Packages,Logo Printing and Special Outside Color and so on;
Payment Terms
a. Telegraphic Transfer (T/T)
b. Paypal
4% commission charges will be added into the amount;
Alarm Camera
For more CCTV Cameras information,welcome to contact
Clark sales04 @ , Skype : Clark.kdsecurity
Website :
