Fine Powder Pulverizer Mill Fine Pulverizer With 200mesh Output Size

Jiangxi Walker Machinery is a leading large-scale professional manufacturer of laboratory equipment for mineral processing, as well as sample preparation equipment. We concentrate on researching, designing, and manufacturing many kinds of laboratory machines.

Our products mainly include below:

lab pulverizer for sample preparation,

lab crusher divider, lab crusher,

lab ball mill, lab grinding mill machine,

lab flotation machine ,

lab vacuum filter,

lab magnetic separator,

laboratory shaking table,

lab spiral chute, lab hydrocyclone,

lab centrifugal machine, lab sieve shaker, and many other lab testing equipment.

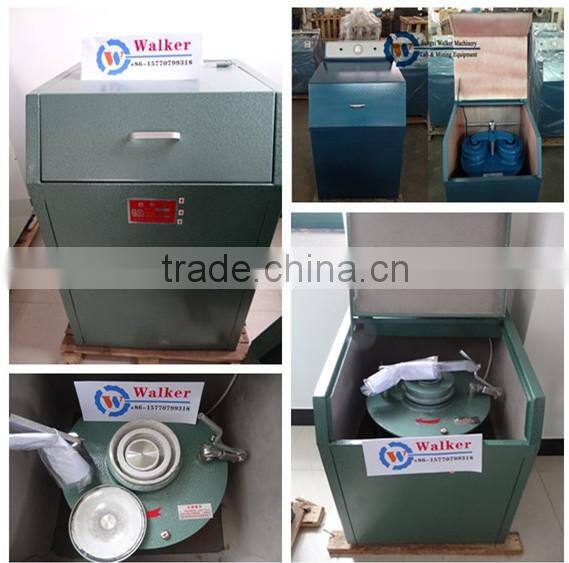

  fine powder pulverizer mill fine pulverizer

Description &Application area    :

Laboratory sealed sample pulverizer / lab sample grinder / lab sample grinding mill is a small lab grinding machine for grinding the ore/material samples into powder, which has been widely used in the laboratory of the geology, mining, metallurgy, coal, power, chemistry and building industries, for the none pollution sample testing.

The sealed pulveriser gets an “automatic dust proof” and a “pot anti-loose” device, which provide the machine advantages of low noise, no dust, and easy operation.

The machine adapt high frequency vibrating grinding method to make the power fine and event, no need screening and shrinking, prevent sample mixing.

This machine gets a simple structure, nice outlook , small volume, with a high efficiency, the output material is fine and evenly, which could meet the demand of education and research department. no need install and adjusting. Could be used in any location, it’s one of the best sampling machines for laboratory use.

Working Principle      :

The tungsten carbide pulveriser use eccentric weight to get a high frequency vibrating of the grinding device which is holed by six springs. The grinding part such as the grinding plate, grinding ring continuously hit the material inside the pot to make the material into powder.

Features:

1. High efficient, no need screening again, the output material could be used for testing directly.

2. Sealed grinding pot, dust proof, no pollution.

3. Digital timing screen, special designed high quality motor, with long service life.

4. With shock-absorbing stand.

5. Reliable, evenly output size, short grinding time.

6. Simple and reasonable structure, good out look, easy to operate, maintenance, and clean.

7. Low noise, smooth operating, complete sealed machine, with high safety operation standard.

8. High standard sealing design, no leaking for dry or wet method grinding.

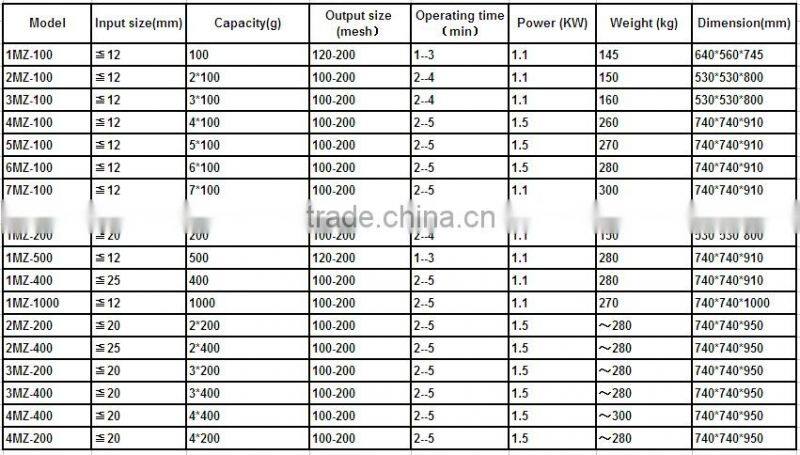

Specifications  :

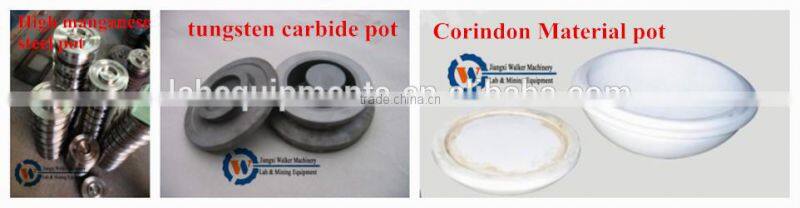

Earthen Bowl material:

Tungsten carbide/ High manganese stee/ Corindon, the widely using material is High manganese stee.please check below picture

Grinding capacity of material for each Earthen Bowl:

Various capacity, from 100g/Bowl, 150 g/Bowl, 200 g/Bowl, 400 g/Bowl, 500 g/Bowl,1000 g/Bowl.

Earthen Bowl Quantitys in each set:

We have the Laboratory sealed sample pulverizer / lab sample grinder / lab sample grinding mill with different quantity Earthen Bowl, such as

ONE pc Earthen Bowl,

TWO pcs Earthen Bowl,

THREE pcs Earthen Bowl,

FOUR pcs Earthen Bowl,

FIVE pcs Earthen Bowl,

SIX pcs Earthen Bowl,

SEVEN pcs Earthen Bowl.

The one pc Earthen Bowl, two pcs Earthen Bowl, three pcs Earthen Bowl sample pulverisers are most popular

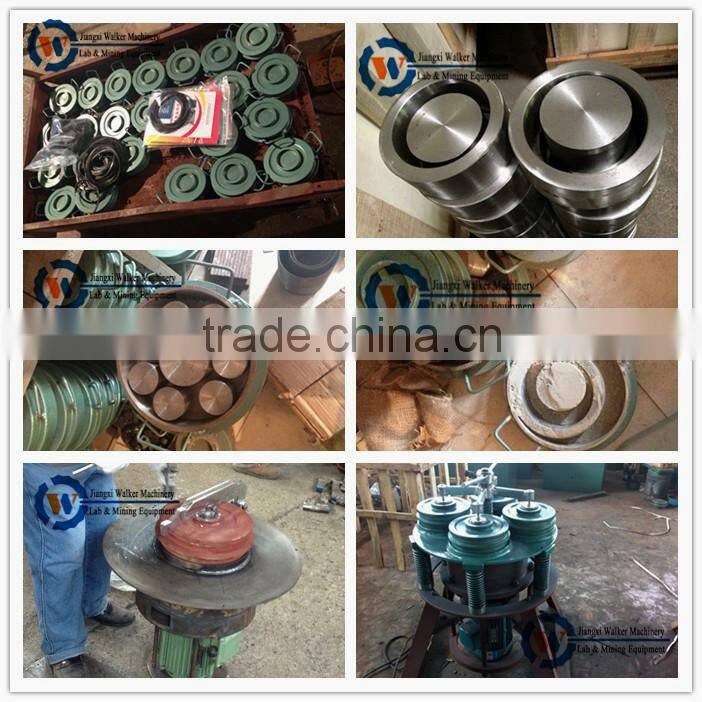

Main parts  :

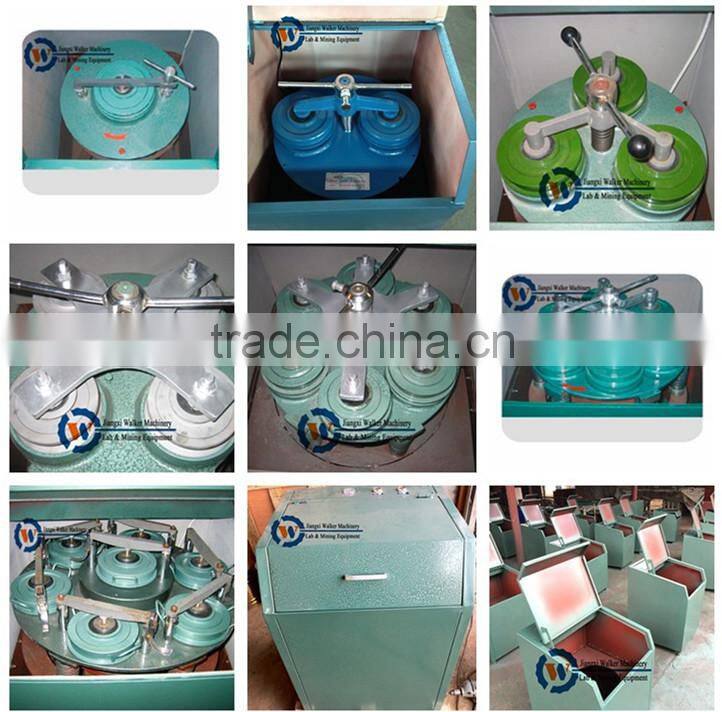

More Pictures  :

We also provide many other laboratory machines, such as laboratory flotation machine, laboratory magnetic separator, laboratory crusher divider, laboratory crusher, laboratory shaking table, laboratory spiral chute machine, laboratory ball mill,ect. as below pictures

Our showroom picture for LAB EQUIPMENTS:

We pack the lab equipments with WOODEN CASE,  can ship by AIR or by SEA as per your request:
