Lab Test Rotary Kiln,small Scale Ceramic Kiln,ceramic Dryer Kiln Made in China

2), Manufacturing according to the ISO9001:2008 quality control system guidelines.

3), Our products are widely recognized and trusted by users, sell well all over the world especially to Ghana, Sudan, South Africa, Nigeria, Philippines, Malaysia, Indonesia, Austrlia, Brazil, Chile, Peru and many other area.

4), Jiangxi Walker owned a strong R&D term so your OEM&ODM orders are very much welcomed!

Our laboratory series mining equipment are mainly include:

Lab crusher,

Lab ball mill,

Lab grinder miller,

Lab sampling pulveriser,

Lab flotation cell,

Lab shaking table,

Lab spiral chute,

Lab magnetic separator,

Lab screener and classifier,

Lab crusher divider,

Lab disk vacuum filter

--- lab test rotary kiln,small scale ceramic kiln,ceramic dryer kiln made in China

Laboratory Rotary Kiln Description:

SHY-1 Laboratory Rotary Kiln is applicable for tests of calcination and sintering of samples in metallurgical, geological, mine, chemical, building material and other industries. Compared with the traditional muffle furnace and tube furnace, the most important advantage of the kiln is that the furnace tube is rotating. In the processing of materials, the furnace tube keeps rotating with the resultant good quality and high efficiency of the processing and the test data obtained relatively similar to the production state. Given continuous material charging and discharging for the rotary kiln, processing of massive materials can more display its advantages. It also can be employed in pilot plant production. In addition, the rotary kiln tube is sealed off at its both ends and therefore, gases necessary for oxidation and reduction can be sent into it during operation.

Laboratory Rotary Kiln consists of two parts: part of kiln body; part of electric control box. The kiln body is divided into two sections of electrical furnace body and dynamic rotation with the kiln body constructed of clayed circular hearth uniformly inserted with 9 silicon carbon rods along the circular axis (one group made up of 3 rods and Y connection for every 3 groups). High aluminum ceramic furnace tube is installed in the silicon carbon rod. After being energized, the silicon carbon rod will generate high temperature to heat the furnace tube.

Lab Rotary Kiln Advantages & Features:

-- Reasonable structure

-- Good sealed performance

-- High efficiency sample preparation

-- Wide range of application

-- The biggest advantage is that the furnace pipe is rotating, Sample is keeping flip in process.

so the sample have a good quality and high efficiency, and the testing data is relatively close to the production status.

-- It can test and grinding all kinds of metal and non-metal ore sample, also can control the grinding time.

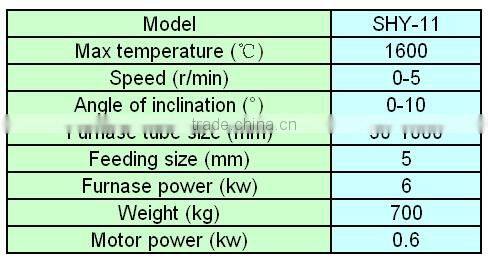

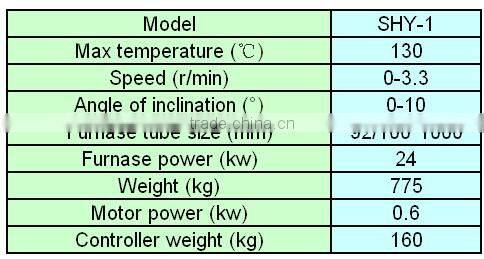

Lab Rotary Kiln Specifications:

Energy-saving Rotary Kiln Structure & Working Principle:

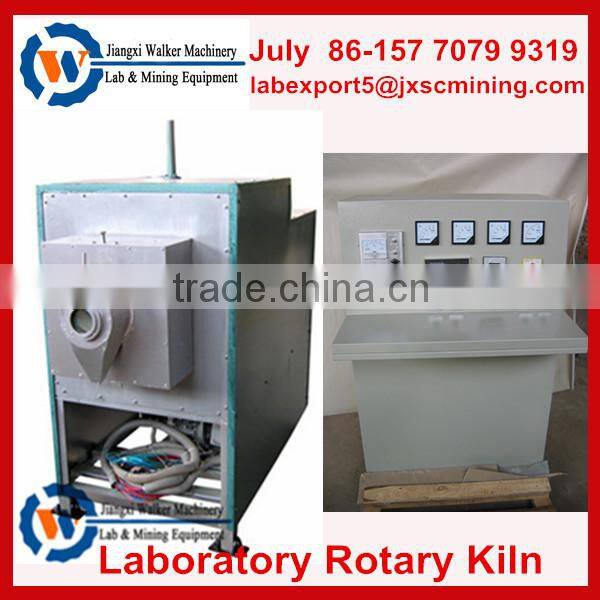

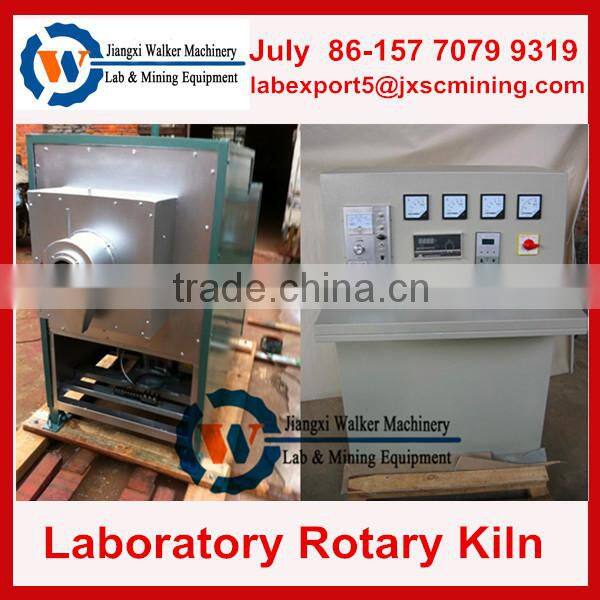

Laboratory rotary kiln is composed of two parts, namely kiln body and electrical control cabinet. Kiln body is composed of electric furnace body and rotating part. The furnace is provided with a round hearth made of clay. Nine silicon carbide rods are inserted evenly in axial direction around the circle (three connected in series compose one group, and the three groups are connected through Y-shaped connection). Around the inner circle of silicon carbide rod are high-aluminum ceramic furnace tubes which are heated by silicon carbide rod after the power supply is connected.

Power part is provided with a 0.6KW speed regulating motor that drives the transmission shaft through reduction gearbox, and then it drives the furnace tube to rotate through chains. A three-shift transmission is mounted between feeder and transmission shaft, enabling the feeding amount to be adjustable. The motor and reduction gearbox are under furnace body, and the overall structure is relatively compact.

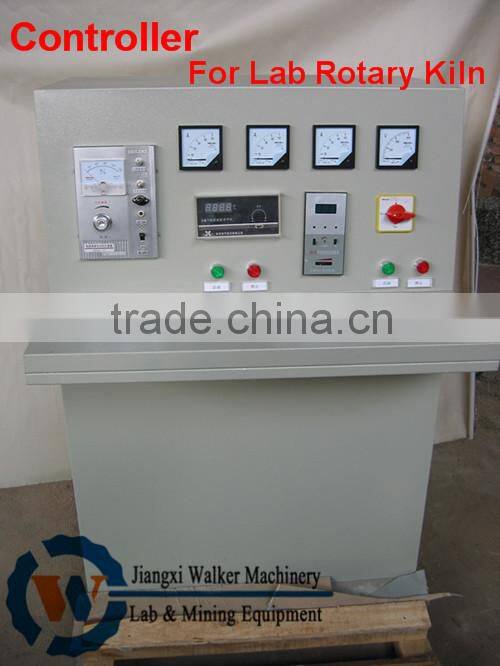

Electrical parts of the whole rotary kiln are concentrated in control cabinet. The electric signal detected by thermocouple of furnace gets into control cabinet and performs temperature regulation and automatic control. The speed regulating motor performs stepless speed regulation through the instrument on control cabinet.

For package of our Lab Equipment, we will use the Wooden Box packing to ensure its safety and stability during international transportation.

Jiangxi WALKER other hot selling Laboratory Mining Equipment for your choice:

Customers come to visit our factory

If you have any interesting of our various Laboratory mining machines, pls feel free to contact with me!

You are also very much welcomed to visit our factory which located in Shicheng country, Ganzhou city!
