Small Froth Flotation Machine With 0.5L/0.75L/1L/3L/8L Volume
- Xiamen/Shenzhen/Shanghai/Guangzhou
- T/T Credit Card
You May Like
-
Single Cell Flotation Machine for Laboratory Use
-
Gold Ore Testing Equipment Lab Flotation Cells
-
Laboratory Equipment for Mining, Laboratory Flotation Cell With 0.5L/1.5L/3L/8L Volum
-
Denver D12 Laboratory Flotation Cell With Adjustable Rotary Speed 700-2000rpm
-
Copper Ore Testing Equiopment Laboratory Flotation Machine
-
Laboratory Equipment, Laboratory Flotation Cell
Product Details
| Condition | New | Type | Flotation Separator | |
| Place of Origin | Jiangxi, China | Brand Name | WALKER | |
| Model Number | XFDIII 0.5L | Voltage | 380V/50HZ | |
| Dimension(L*W*H) | 520*338*770mm | Weight | 30kgs | |
| Warranty | 12months | After-sales Service Provided | Overseas third-party support available |
Product Description
Jiangxi Walker Machinery is a leading large-scale professional manufacturer of laboratory equipment for mineral processing, as well as sample preparation equipment. We concentrate on researching, designing, and manufacturing many kinds of laboratory machines.
Our products mainly include below:
lab pulverizer for sample preparation,
lab crusher divider, lab crusher,
lab ball mill, lab grinding mill machine,
lab flotation machine ,
lab vacuum filter,
lab magnetic separator,
laboratory shaking table,
lab spiral chute, lab hydrocyclone
lab centrifugal machine, lab sieve shaker, and many other lab testing equipment.
small froth flotation machine :
Introduction&application area of small froth flotation machine :
XFD series Single cell laboratory flotation machine is mostly used in geology, metallurgy, building materials, chemical and other industrial laboratory to floated small amount of ore samples.

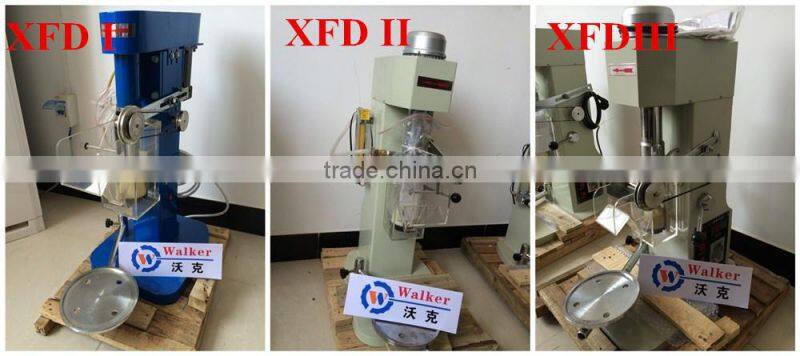

The XFD series single cell lab flotation machine have THREE TYPES: XFDI, XFDII, XFDIII. the features of each type as below:
XFDI: the ordinary simple type, the impeller rotary speed can not be adjustable, and without LED display screen, without heater device, can not control temperature of the minerals.
XFDII: it is the updated version of XFD I, the impeller rotary speed can be adjustable as your needs, but with LED display screen, without heater device, can not control temperature of the minerals.
XFDIII: It is the highest grade type. It uses inverter technology, variable speed impeller, digital display, and also change from the outside air to intake inflated with precise adjusted, clear and stable display.
According to user needs, it can be equipped with a heater, temperature control device to control, display tank mine fluid temperature at any time.
The machine can be equipped with additional water level automatically adjusts automatically administration and other devices, can achieve a higher level of automation.
Gas of pump tank supply to the rotor agitation, and mix with ore fluid, the stator is cut to produce tiny bubbles mineralization
Rotor speed is stepless and can be adjusted by inverter.
Fixed flotation tank fasten by hand wheel drive screw clamp.
Shaving foam body, its trajectory is a circular motion.

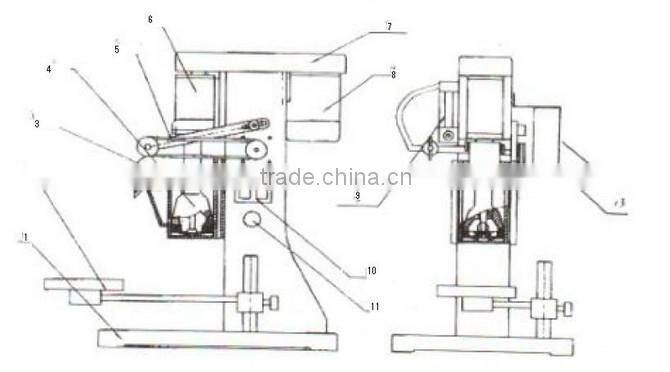

Main Structure of small froth flotation machine :
XFDI, XFDII Series cell Flotation machine consists of the following main components:
( 1 ) base ( 2 ) the carrier ( 3 ) the tank ( 4 ) stir part (5) blade part ( 6 ) spindle part ( 7 ) the cover ( 8 ) the motor ( 9 ) flow meter ( 10 ) switch controls ( 11 ) blade switch
XFDIII main structure: frame member, spindle transmission parts, locking parts, wiper parts, flotation tank, outside the inflatable devices and electrical control components.
Specifications for XFD I, XFDII, XFDIII:

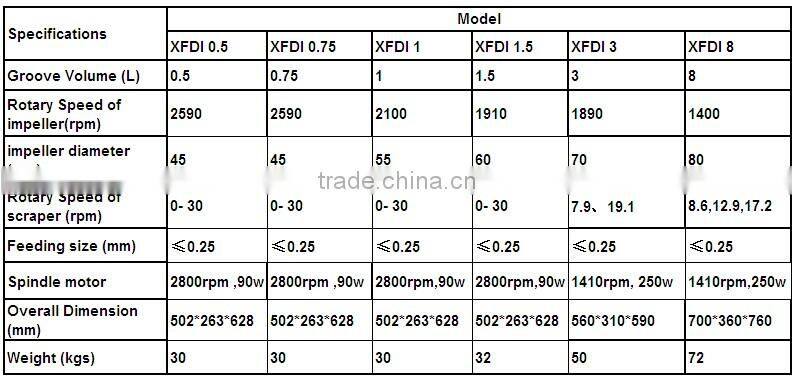

XFDI:
XFDII:
XFDIII:
Detail pictures of small froth flotation machine :

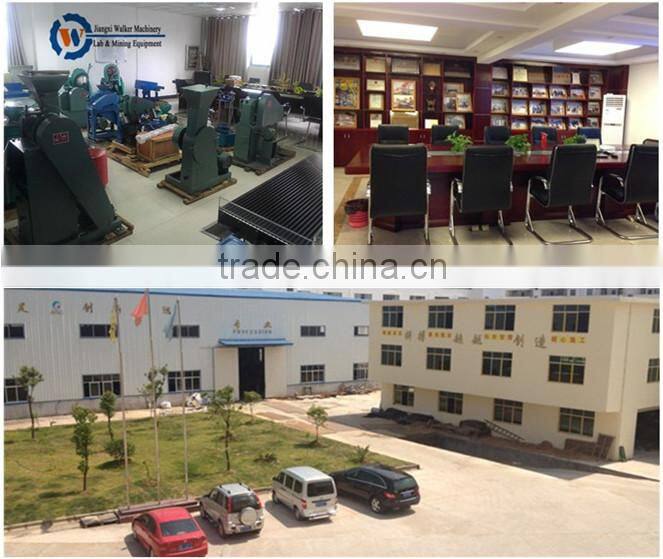

Workshop of small froth flotation machine :

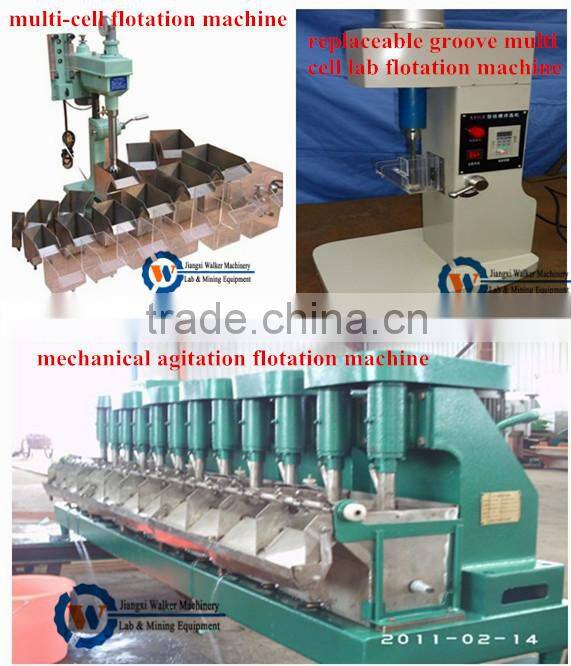

We have many other type lab flotation machine, such as lab multi-cell flotation machine, lab small leaching agitation machine, lab FX series continuous mechanical agitation flotation machine, replaceable groove multi cells lab flotation machine:

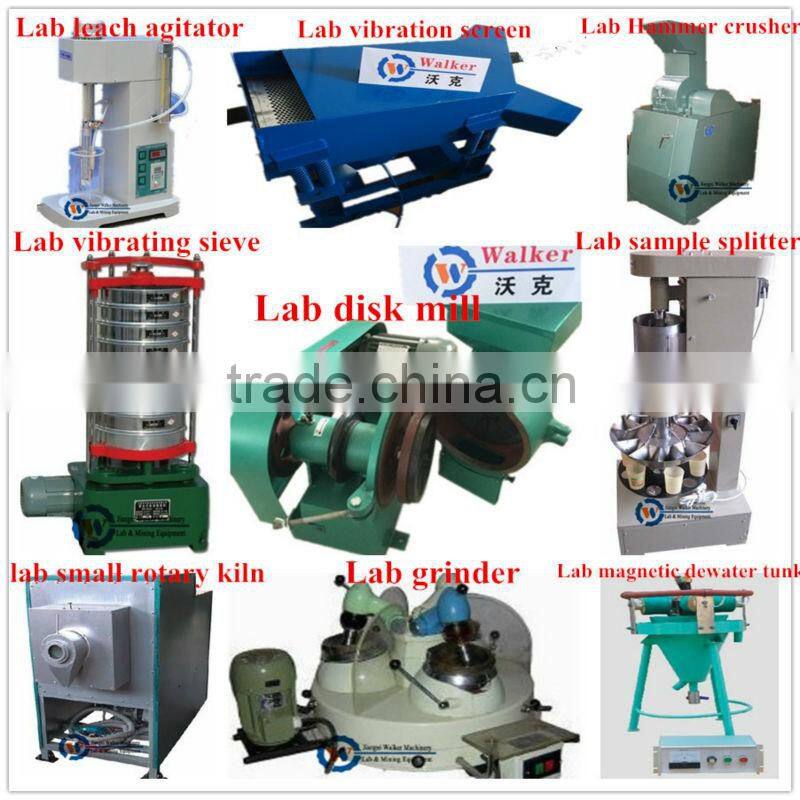

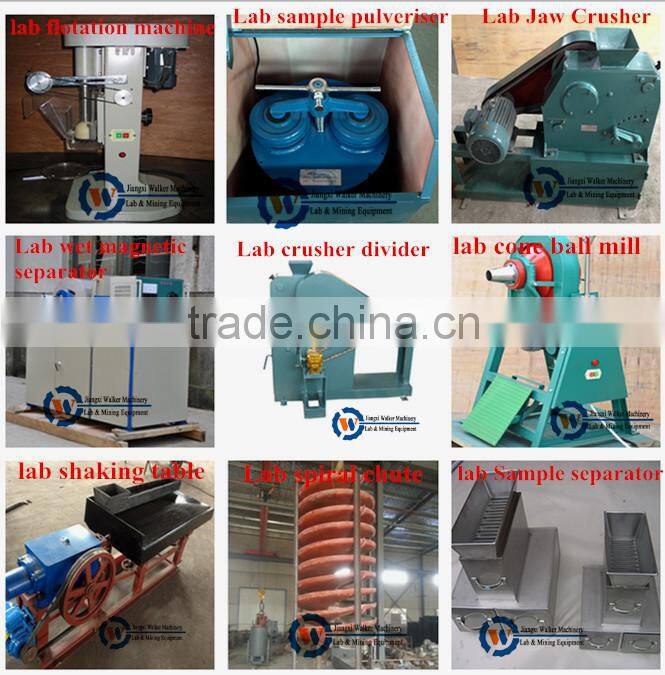

Excepting the small lab flotation machines , we also provide many other series lab mining equipments, check below pictures:
Why choose JX WALER?
- Optimum quality products
- Timely delivery
- Cost-effective Price
- Competent and efficient team
- Efficient logistic facility
- Vast industry experience
- Large production capacity
- Maximum customer satisfaction
- Belief in long-term relationship with clients

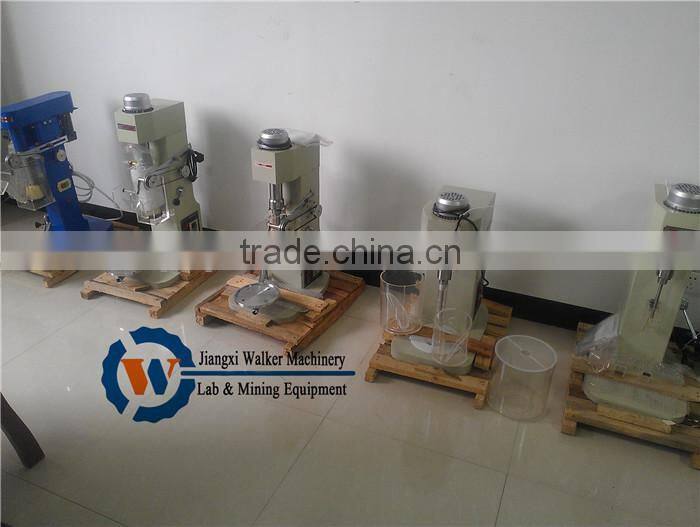

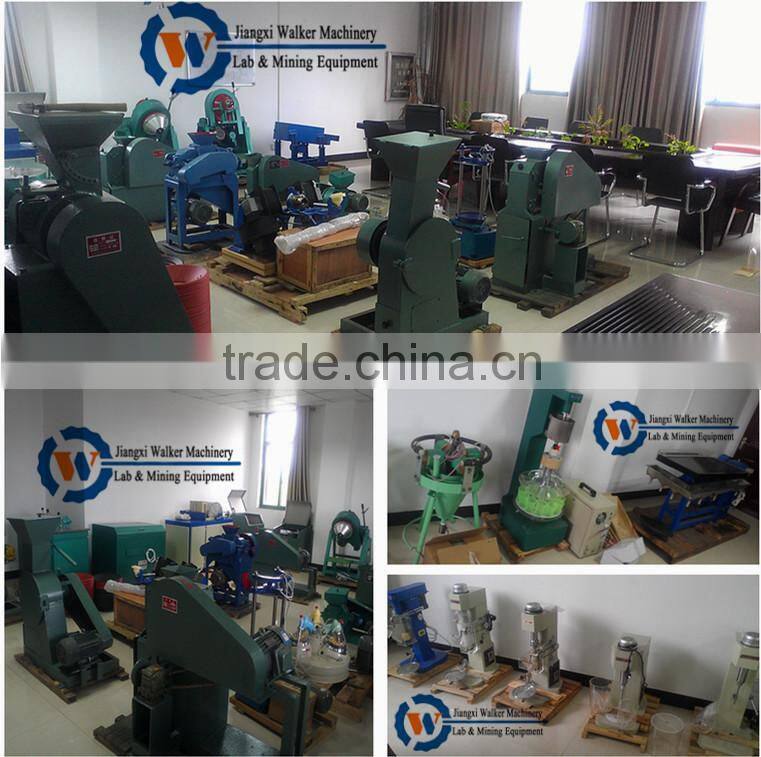

Our showroom for lab equipments:
Welcome to visit us, we are located in Ganzhou city, Jiangxi Province, Very near from Guangzhou, Shenzhen,Shanghai, only takes about ONE HOUR by air, also can by train very conveniently! We will pick you up at air port or train station
If you are interested in our products, please feel freely to contact me:
