Home > Products > Jig separator > JXSC new designed panent gold jig concentrator
JXSC new designed panent gold jig concentrator
- xiamen guangzhou
- Credit Card
You May Like
-
100 Ton alluvial coltan plant from Africa
-
JXSC Congo Alluvial tantalum tantalite separation machine
-
JXSC high quality tantalite ore jig separator
-
10tph alluvial tantalite jig machine,jig separator ,jig concentrator
-
diamond washing plant Jig machine
-
Simple operate and High Efficient Gold Ore Separating Jigger
Product Details
| Type | Other, Gravity Separator, Jig Separator | |||
| Place of Origin | Jiangxi, China | Brand Name | JXSC | |
| Model Number | JT2-2, JXSC JT2-2 | Voltage | Customize | |
| Power(W) | 3000 | Dimension(L*W*H) | 3225*1550*2150mm | |
| Weight | 1.637t | Certification | CE ROHS, CE,ISO9001, SGS | |
| Warranty | 12 month warranty | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JXSC new designed panent gold jig concentrator

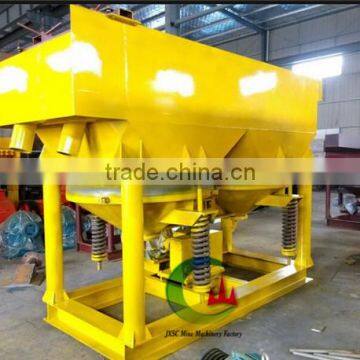

Detailed picture of jig machine
Jig machine Discription
Jig machine is one of the most important gravity mining machine, which is widely used for big size (size over 3mm) mineral particles concentration.
Jig machine application
Jig machine normally been used for primary processing of the raw ore, because of the high capacity and high efficiency. And also it's been used for the refining of the concentrate.
The jig machine was widely used in gold, diamond, tin, tungsten, coltan/columbite, hematite, ilmenite, iron ore mining.
Advantages of jig separator
1. high efficiency.
2. high capacity, compare with other gravity machine, the capacity of this machine is high.
3. continuously working, this machine could form a automatic processing line with other machines.
4. wide range of feeding size, this machine could concentrate the mineral with the size upto 20mm.
5. no pollution.
6. with small size, easy to install and move.
Structure of jig separator
Specification of jig separator
Model | Area jig | Stroke | Stroke | Feed size | Hutch water | Pressute water | Capacity | Power | Overrall dimensions | Weight |
| m2 | mm | r/min | mm | kg/cm2 | kg/cm2 | t/h | kw | mm | t |
JT0.57-1 | 0.57 | 8.5-12 (M12) | 60-160 | < 6 | 1-2 | ≥ 0.3 | 1-2.5 | 1.5 | 1560× 820 | 0.612 |
JT1-1 | 1.04 |
|
| < 10 | 2-3 |
| 4-10 | 2.2 | 1322× 1190 | 0.9 |
JT2-2 | 2.28 | 8.5-12 (M12) | 60-160 | < 10 | 2-4 | ≥ 0.3 | 8-15 | 3 | 3225× 1550 | 1.637 |
JT3-1 | 3.3 | 10-47 | 80-110 | < 20 | 3-6 | ≥ 0.1 | 10-15 | 5.5 | 2662× 2000 | 3.26 |
JT4-2 | 4 | 7-30 | 50-125 | < 10 | 4-8 | ≥ 0.1 | 8-16 | 7.5 | 4240× 1990 | 4.6 |
JT4-2A | 4 | 7-30 | 50-125 | < 10 | 4-8 | ≥ 0.1 | 8-16 | 4 | 4240× 1990 | 4.6 |
JT5-2 | 4.86 | 15-25 | 80-120 | < 10 | 4-10 | ≥ 0.1 | 10-20 | 7.5 | 3940× 2006 | 4.8 |
Jig machine working shop in JXSC factory
Packing of jigger machine
jig separator used in coltan washing plant
Any other question,Please please feel fre eto contact me
skype: manlyzhang
MOB/whatsapp: +86 1817271202
