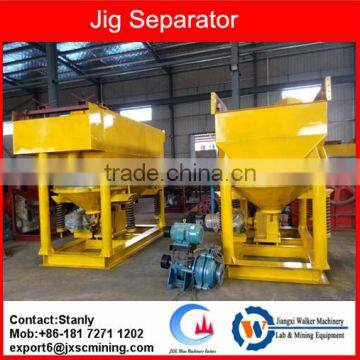

JXSC high efficiency JT1-1 gold jig machine for alluival gold wash plant
- xiamen guangzhou tianjin shenzhen qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
JXSC high recovery rate JT1-1 gold jig separator for alluival gold wash plant
-
JXSC high efficiency JT1-1 gold jig separator for alluival gold wash plant
-
JXSC new designed panent Barite jig separator
-
JXSC new designed panent gold jig concentrator
-
100 Ton alluvial coltan plant from Africa
-
JXSC Congo Alluvial tantalum tantalite separation machine
Product Details
| Type | Other, Gravity Separator, Jig Separator | |||
| Production Capacity | 2-3 tph | Place of Origin | Jiangxi, China | |
| Brand Name | JXSC | Model Number | JT2-2, JXSC JT1-1 | |
| Voltage | Customize | Power(W) | 3000 | |
| Dimension(L*W*H) | 3225*1550*2150mm | Weight | 1.637t | |
| Certification | CE ROHS, CE,ISO9001, SGS | Warranty | 12 month warranty | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
JXSC high efficiency JT1-1 gold jig machine for alluival gold wash plant
Detailed picture of Barite jig separator
Barite jig separator Discription
Jig machine is one of the most important gravity mining machine, which is widely used for big size (size over 3mm) mineral particles concentration.
Barite jig separator application
Jig machine normally been used for primary processing of the raw ore, because of the high capacity and high efficiency. And also it's been used for the refining of the concentrate.
The jig machine was widely used in gold, diamond, tin, tungsten, coltan/columbite, hematite, ilmenite, iron ore mining.
Advantages of Barite jig separator
1. high efficiency.
2. high capacity, compare with other gravity machine, the capacity of this machine is high.
3. continuously working, this machine could form a automatic processing line with other machines.
4. wide range of feeding size, this machine could concentrate the mineral with the size upto 20mm.
5. no pollution.
6. with small size, easy to install and move.
Structure of Barite jig separator
Specification of jig separator
Model | Area jig | Stroke | Stroke | Feed size | Hutch water | Pressute water | Capacity | Power | Overrall dimensions | Weight |
| m2 | mm | r/min | mm | kg/cm2 | kg/cm2 | t/h | kw | mm | t |
JT0.57-1 | 0.57 | 8.5-12 (M12) | 60-160 | < 6 | 1-2 | ≥ 0.3 | 1-2.5 | 1.5 | 1560× 820 | 0.612 |
JT1-1 | 1.04 |
|
| < 10 | 2-3 |
| 4-10 | 2.2 | 1322× 1190 | 0.9 |
JT2-2 | 2.28 | 8.5-12 (M12) | 60-160 | < 10 | 2-4 | ≥ 0.3 | 8-15 | 3 | 3225× 1550 | 1.637 |
JT3-1 | 3.3 | 10-47 | 80-110 | < 20 | 3-6 | ≥ 0.1 | 10-15 | 5.5 | 2662× 2000 | 3.26 |
JT4-2 | 4 | 7-30 | 50-125 | < 10 | 4-8 | ≥ 0.1 | 8-16 | 7.5 | 4240× 1990 | 4.6 |
JT4-2A | 4 | 7-30 | 50-125 | < 10 | 4-8 | ≥ 0.1 | 8-16 | 4 | 4240× 1990 | 4.6 |
JT5-2 | 4.86 | 15-25 | 80-120 | < 10 | 4-10 | ≥ 0.1 | 10-20 | 7.5 | 3940× 2006 | 4.8 |
Jig machine working shop in JXSC factory
Packing of jigger machine
jig separator used in coltan washing plant
