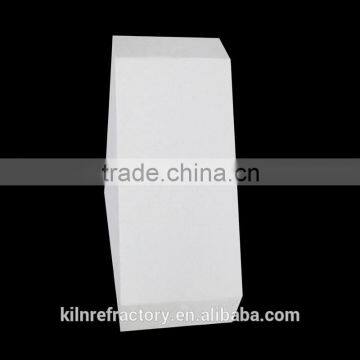

92% 95% Al2O3 High Alumina Lining Brick for Ball Mill
- Tianjin Qingdao Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
manufacturer high quality low price alumina brick
-
SK37 High Duty Standard size High Alumina Straight Refractory Brick for tunnel kiln
-
manufacturer of refractory brick high alumina fire bricks for furnace
-
Refractory kiln fire bricks sk35 sk36 sk37 sk38 sk40 for sale
-
henan refractory suppliers high temperature firebrick for sale
-
High Alumina Refractory Firebrick (Al2O3: 38-75%) for Industrial Furnace Construction
Product Details
| Place of Origin | Henan, China | Shape | Brick | |
| Material | Other, Alumina Ceramic | SiO2 Content (%) | International Standard | |
| Al2O3 Content (%) | ≥92% | MgO Content (%) | None | |
| CaO Content (%) | None | |||
| CrO Content (%) | 0.1~0.3% | SiC Content (%) | None | |
| Model Number | Customer's Requirement | Brand Name | 92% 95% Al2O3 High Alumina Lining Brick for Ball Mill |
Product Description
92% 95% Al2O3 High Alumina Lining Brick for Ball Mill
Features
1.Good wear-resistant,Corrosion resistant
2.Heat-resistance
3.The service life can be at least five years, which is 15% more efficient than a rubber liner.
4.Decreases the pollution to the grinding material and increases the capacity of mill ball, lowing the cost.
Application
·Ceramics, mines and other grinding equipment lining
·Material thansfer equipment,
·inside and outside surface of powder separating equipment on iron and steel works
·Thermal and power plants
92% 95% Al2O3 High Alumina Lining Brick for Ball Mill
Performance Index | 75 Series | 92 Series | 95 Series | 97 Series |
AL2O3 (%) | >75 | >92 | >95 | >97 |
FE2O3 (%) | <0.6 | <0.3 | <0.2 | <0.1 |
Moh's Hardness | 7.5 | 8 | 9 | 9 |
Moisture Content (%) | <0.02 | <0.02 | <0.02 | <0.02 |
Bulk Density (g/cm3) | >3 | >3.63 | >3.68 | >3.73 |
Wearing Loss (%) | <0.2 | <0.1 | <0.1 | <0.1 |
High Alumina Lining Brick for Ball Mill Size
Size(mm) | Length(mm) | Width(mm) | Thickness (mm) | Shape |
10X10 10*10 lining Facing | 10 | 10 | 1.5-10 | Mosaic/Hex.Tile |
11.55X11.55 | 11.55 | 11.55 | 3-12 | Mosaic/Hex.Tile |
12X12 | 12 | 12 | 3-12.7 | Mosaic/Hex.Tile |
17.5X17.5 | 17.5 | 17.5 | 4-10 | Mosaic/Hex.Tile
|
20X20 | 20 | 20 | 5-15 | Mosaic/Hex.Tile
|
23.7 x23.7 | 23.7 | 23.7 | 5-15 | Mosaic/Hex.Tile
|
25X25 | 25 | 25 | 5-15 | Mosaic/Hex.Tile
|
50X25 | 50 | 25 | 5-10 | Plain Tile(Without Hole) |
50X50 | 50 | 50 | 5-15 | Plain Tile(Without Hole) |
100X100 | 100 | 100 | 6.5-15 | Plain Tile(Without Hole) |
120X80 | 120 | 80 | 6-20 | Weldable Tile (With Hole) |
150X60 | 150 | 60 | 10-25 | Plain Tile(Without Hole) |
150X100 | 150 | 100 | 6-25 | Plain Tile(Without Hole) |
150X100 | 150 | 100 | 12-50 | Weldable Tile (With Hole) |
92% 95% Al2O3 High Alumina Lining Brick for Ball Mill
In carton box or PP-bag , packed in fumigated wooden pallet with net weight 20-25MT/20'FCL
1) Afford the standard and pre-engineered bricks
2) Professional technical team to afford CAD designs
3) Professional installation team to afford install service
4) Professional installation team to afford install service
