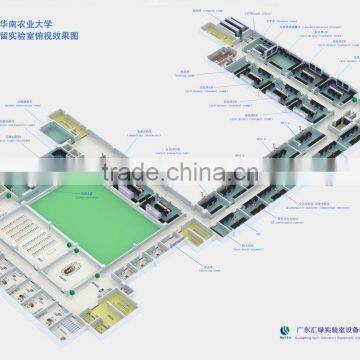

laboratory fume hood, island bench, lab layout

Specifications

Our company's main products are: laboratory decoration: clean rooms, sterile rooms, clean workshop, the construction of clean rooms; epoxy surface; PVC flooring; electronic transfer valve; air purification systems; ventilation systems engineering; stainless steel works and so on; Laboratory Furniture: Central Laboratory of the table, Laboratory side of the table, reagent racks, Laboratory cabinets, laboratory stool, Fume Hood, space platforms, gas cylinder cabinets, hazardous chemical storage cabinet, cabinet kit, utensils, counters, glass cabinets, counters wax tablets, eye browser, and an emergency shower, and universal exhaust hood, mask, such as atomic absorption.

The island/ side bench should be customized.

Work Top: the below options are available.all the lab worktops is chemical resistant,heat resistant,against solvent,

acid and alkali resistant, scratch and impact cutting resistant.monolithic smooth, non-glare finish.

Phenolic tops:13/16/19/25mm thickness of Wilsonart Chemsurf chemical resistant laminate;

                           15/19/25mm thickness Belmax Lab grade phenolic resin laminate.

Epoxy Resin Tops:13/16/19/25mm Durcon Epoxy Resin Worksurface.

                                   16/19/25mm Siruike lab grade epoxy resin tops.

Ceramic tops:20mm/30mm Ornices Ceramic Work Top.

 Trespa tops: 13mm/15/19mm Trespa worktop.

Compact tops: 13mm.

Body & Cabinet: Drawer / Cupboard Cabinet/Hunging cabinet.Using 1.2 mm thick of cold-rolled steel sheet production.

the steel parts by acid washing,phosphating and static electrical spraying with epoxy resin powder for erosion resistance.

high temperature curing treatment. the acid-and alkali coorosio, abrasion, scratch and impacting ing.

3mm special welding edging. Customized size and style.

Body & Cabinet:  Made of 18mm high pressure semi-solid wood (MDF) covered with 0.4mm High Pressure Laminate (HPL) on both sides with 3 mm PVC edging strips. Customized size and style.

Optional Sink: International standard lab grade PP sink,epoxy sink,ceramic sink are available for option.

Reagent Rack: The main frame is made of 1.5mm thickness of cold-rolled steel plate. The adjustable shelve

are made of 12mm thickness of reinforce glass with stainless steel tube for guardrail.

Electric Fitting:sockets and power point all are optional for electric supply.according to customer specification.

Water Faucet : cold & hot water outlet ,two way water Outlet,three way water outlet are available.

Accessories: pegboard,eyewash ,gas outlet are should be used in the lab bench.

Hinge:105/175 degree  open type high quality hinge;2.0mm thickness 304# stainless steel hinge;

             hydraulic hinge are available.

Handle:304# Stainless steel handle;embedded aluminum handle with epoxy coating,lines handle are available.

Slideway: Stainless steel self-closing three section slide rail, no noise.hydraulic slideway are available.

Please be noted:all the specification and requirement should be customized.
