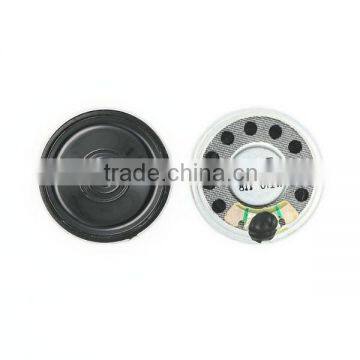

30mm 8ohm 0.1W small mylar tweeter flat speaker
- Xiamen/ Hongkong
- Credit Card
You May Like
-
66mm 8ohm 3W outdoor electronic speaker with water resistant
-
36mm 8ohm 2w small tweeter speaker
-
32mm 8 ohm 0.5w ultra thin mylar speaker with 4.0mm height
-
40mm 8ohm 0.3W water resistant speaker with clear mylar lcone
-
36mm 8ohm 2W mini mylar speaker with mounting holes
-
16mm 16ohm 0.2w micro speaker for toy, medical device
Product Details
| Brand Name | FCE | Model Number | F30M120B(GP) | |
| Use | Other, Voice | |||
| Channels | 2 (2.0) | Special Feature | Mini | |
| Place of Origin | Fujian, China |
Product Description
Specifications
1.Flat mylar tweeter or speaker2.Dia.30mm
3.8ohm,1.0~1.5W
4.For intercom,radio
5.RoHs compliant
1.Description:
- Mylar tweeter / small flat speaker
- Metal round basket with mylar cone
- Waterproof
- With RoHs compliant
2.Techinical Data:
| 1 | Model | F30M120B(GP) |
| 2 | Dimension | Outer diameter 28mm,height 4.5mm |
| 3 | Nominal Impedance | 8ohm |
| 4 | Power Rating | 0.1~0.4W |
| 5 | Lowest Resonant Frequency | 580±116 Hz |
| 6 | Output Sound Pressure Level | 86±3dB/1Watt 1Meter |
| 7 | Frequency Range | 380~5200 Hz |
3.Typical Applications:
- Voice and singal output in machines and other equipment / electronic devices both indoors and outdoors.
4.Technical specifications:
5.Certification:
All of our products are ROHS compliant.
