PLC Steel Sheet Coil Slitting Machine Line

PLC steel sheet coil slitting machine line

Layout plan of  PLC steel sheet coil slitting machine line

Commodity:  PLC steel sheet coil slitting machine line

1. Material: Hot/cold rolled coil, etc

2. Thickness: 0.3-16mm

3. Width:100-2200mm

4. Inner diameter: 508mm

5. Max outer diameter: 1600mm

6. Capacity: 15T(depends on client's demand)

General introduction of  PLC steel sheet coil slitting machine line

The whole line of the steel strip slitting machine can do uncoiling, slitting and recoiling works. slit the steel coil into narrower coils with any needed widths. The whole line mainly includes coil loading car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler, coil unloading car, hydraulic system and electrical control system, etc. It is mainly applied for processing cold/hot rolled carbon steel, silicon steel,stainless steel, and all the other kinds of metal materials with surface spreading.

Main components of  PLC steel sheet coil slitting machine line

Coil loading car

Decoiler

Straightener

Coill guider

Slitter

Edge scrap recoilers

Pinch devi, tension unit, separating device

Recoiler

Coil unloading car

Hydraulic system and electrical control system

Production process of  PLC steel sheet coil slitting machine line

Feed car--Uncoiler--Cutting head and Straightening--Pinch machine--Hydraulic shears--Pair guide--Disc Shear--Edge wire winders--Pre-dosing device--Winding--Unloading

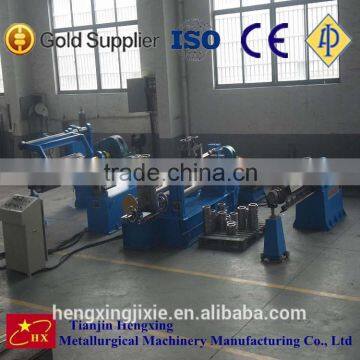

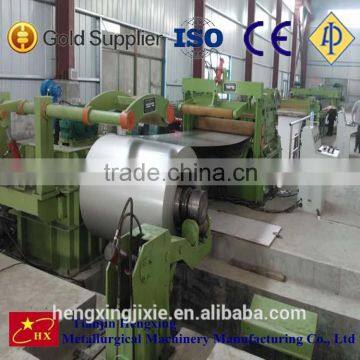

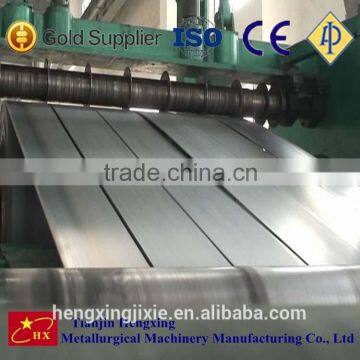

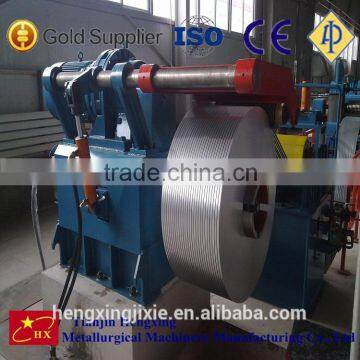

Main equipment pictures showcase

Shipping pictures

1. PLC steel sheet coil slitting machine line

2. Capacity: 400,000t/a
3. Delivery: About 90-100 days.

4. Packaging:  According to the export packing standard or customer's requirement or according to customer requirements.

Tianjin Hengxing Metallurgical Machinery Manufacturing Co., Ltd was established in 1998,  Equipped with more than 100 sets of small, medium and large-size mechanical machining equipment, our company has 12 professional engineer and more than 200employees. We have an annual capacity to produce over 60 sets of equipment and more than 400 tons of welded tube rollers and cold formed rollers, the annual sales total amount about 35 million USD. Our factory have authentication ABS and API.We are the only machinery factory to get this authentication in Tianjin.

Our main products is: Steel Pipe Making Machine,HF pipe Machinery,ERW Pipe Machinery for forming Round/Square/Rectangular Pipe,Slitting Line,Hot-dip Galvanizing Line,Pipe Forming Rollers etc.Our products are being sold to many countries ,such as Brazil in South America,Ukraine in Eastern Europe,Kazakhstan,Kenya, Indonesia,India and some other countries.

Factory and workshop photo

Exhibition photo

Q: Are you manufacturer?

A: Yes, we are manufacturer, we have our own machine factory and our own design team, our factory is  established in 1998, we have proffesional engineer, and our boss is also a machine engineer. Welcome you cooperation with us.

Q: How go to your factory?

A: Proposal 1: Flight to Tianjin Airport, we will arrange to pick you up from airport to our factory or office.

     Proposal 2: Flight to Beijing Airport, then by High speed train from Beijing South station to Tianjin South station, we will arrange to pick you up from south station to our office or factory.

Q: What is your machine advantage?

A:1) Our machines are manufactured from best materials. Steady, durable and long life.

   2) Automatic control, easy to operate.

   3) Easy to replace the moulds, save working hour and increase efficiency

   4) Lower noise

   5) Our competitive price will let you beat your competitor in your market.

Q: What details you need before you make technical proposal?

A: The steel pipe material, width and thickness range. Or you can send me the drawing of the machine and your special requirement.

Q: Why should I choose you?

A: We have professional engineer to design the machine, we can guarantee our high quality will satisfied with you. Our long time and high effciency after-sales service can let your mind at ease.

Welding mild pipe making machine

Steel coil slitting machine

Steel strip continuous galvanized line

Steel pipe forming machine

Thanks for your visit. If there is any problem, please feel free to let me know directly, I will do my best to assist you. Welcome to visit our factory.
