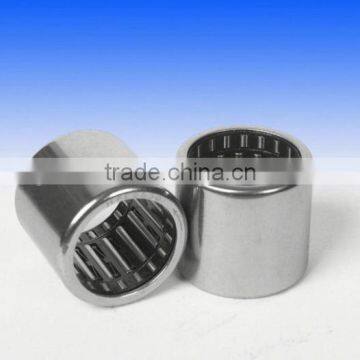

FC8 Clutch Bearing for wheel hub, Needle Roller Clutch Bearing
- 0 per Month
You May Like
-
FCL8K Bearing , Needle Roller Bearing for medical device
-
FCL8K Clutch Bearing for wheel hub, Needle Roller Clutch Bearing
-
8x12x12 mm bearings Clutch FCL8K ,Miniature Needle Bearing for hobby helicopter parts
-
FCL8K One Way Needle Bearing for medical device
-
FC10 One Way Needle Bearing for medical device
-
10x16x12 mm bearings Clutch FC10 ,Miniature Needle Bearing for hobby helicopter parts
Product Details
| Brand Name | LC | Model Number | FC8 | |
| Place of Origin | Guangdong, China | Bore Size | 8, | |
| Outside Diameter | 14, | Precision Rating | ABEC1,ABEC3,ABEC5,ABEC7,ABEC9 | |
| Number of Row | Other |
Product Description
One Way Clutch Needle Roller Bearing Data
Shaft Diameter |
| Mass Approx |
| Torgue Ma | 1 |
| ||||
| Borndary Dimensions |
|
| |||||||
Clutch Designation |
| Limiting Speed | Suitable Drawn Cup Bearings | |||||||
|
| Fw | D | C | Rotating Shaft Min-1 | Rotatng Outer Ring Min-1 |
| |||
|
|
| ||||||||
mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | ||||
HF | ||||||||||
3 | HF0306KF |
| 0.9 | 3 | 6.5 | 6 | 0.2 | 36000 | 7000 | HK0306TN |
4 | HF0406KF | -- | 1 | 4 | 8 | 6 | 0.34 | 34000 | 8000 | HK0408TN |
HF0406KFR | -- | 1 | 4 | 8 | 6 | 0.1 | 34000 | 8000 | HK0408TN | |
6 | HF0608KF |
| 2.8 | 6 | 10 | 8 | 1.5 | 20000 | 11000 | HK0608 |
HF0612KF | HF0612 | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
HF0612KFR | HF0612R | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
| HF061210 | 3.5 | 6 | 12 | 10 | 3 | 20000 | 13000 | HK061208 | |
8 | HF0812KF | HF0812 | 3.5 | 8 | 12 | 12 | 3.15 | 17000 | 12000 | HK0808 |
HF0812KFR | HF0812R | 3.5 | 8 | 12 | 12 | 4 | 17000 | 12000 | HK0808 | |
-- | HF061210 | 3.2 | 8 | 12 | 10 | 3 | 16000 | 12000 | HK0808 | |
-- | HF081410 | 3.6 | 8 | 14 | 10 | 4.6 | 15000 | 11000 | HK081410 | |
-- | HF081610 | 4.1 | 8 | 16 | 10 | 5.5 | 15000 | 11000 | HK081610 | |
-- | HF081412 | 4 | 8 | 14 | 12 | 5 | 16000 | 12000 | HK081410 | |
10 | HF1012KF | HF1012 | 4 | 10 | 14 | 12 | 5.3 | 14000 | 11000 | HK1010 |
HF1012KFR | HF1012R | 4 | 10 | 14 | 12 | 1.5 | 14000 | 11000 | HK1010 | |
12 | -- | HF1216 | 11 | 12 | 18 | 16 | 12.2 | 11000 | 8000 | HK1212 |
14 | -- | HF1416 | 13 | 14 | 20 | 16 | 17.3 | 9500 | 8000 | HK1412 |
16 | -- | HF1616 | 14 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | HK1612 |
18 | -- | HF1816 | 16 | 18 | 24 | 16 | 24.1 | 7500 | 7500 | HK1812 |
20 | -- | HF2016 | 17 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | HK2010 |
25 | -- | HF2520 | 30 | 25 | 32 | 20 | 66 | 5500 | 5500 | HK2512 |
30 | -- | HF3020 | 36 | 30 | 37 | 20 | 90 | 4500 | 4500 | HK3012 |
35 | -- | HF3520 | 40 | 35 | 42 | 20 | 121 | 3900 | 3900 | HK3512 |
|
|
|
|
|
|
|
| |||
1.Industry package: Plastic paper+Kraft paper,20pcs or 10pcs/roll
2.Plastic tube: 20pcs/tube or 10pcs/tube
3.Single box: plastic bag+single box, OEM supply
4.Carton: Standard export carton(380* 240*180mm) or as your need.
5.Pallet: Wooden or Iron pallet with plastic film against moisture.
FAQ
(1). How to extend the bearing’s lifetime?
a. Before you decide to purchase, please confirm the suitable bearing model
b. Before the installation, please make sure the bearing were put horizontally and preserved in original packing with antirust oil, away from moisture, dust and corrosive environment.
c. Ensure the correct installation, please use the suitable installation tools.
d. Cleaning the bearing regularly
e. Lubricating the bearing regularly
f. Please do no thump the bearing with heavy tools.
(2). What’s your generally delivery time?
For Ready goods: 3-4 days
For Bulk Order: 7-10 days
(3).Can your company ensure a timely delivery?
We have bearings in rich stock, and we can deliver the product timely according to your requirements.
(4).If we want to get a small order for testing, can you meet our needs?
Our company accepts small orders, and normally, free samples are available for clients' testing and evaluation.
