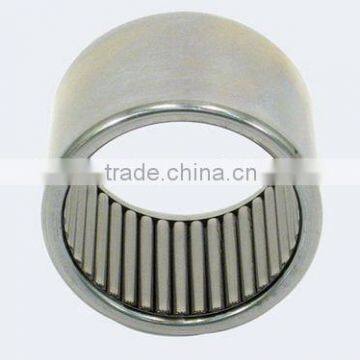

RC101410 Clutch Bearing for Textile machine , Needle Roller Clutch Bearing
- 0 per Month
You May Like
-
RC101410-FC Clutch Bearing for Textile machine , Needle Roller Clutch Bearing
-
RC101410-FC Bearing , Needle Roller Bearing for medical device
-
RC101410-FC One Way Needle Bearing for Medical device, Drawn Cup One Way Clutch
-
HFL1022 roller clutch bearing with pressed outer ring
-
HFL1022 one-way clutch bearing
-
HFL1022 single direction clutch bearing
Product Details
| Brand Name | LC | Model Number | RC101410 | |
| Place of Origin | Guangdong, China | Bore Size | 15.875, | |
| Outside Diameter | 22.225, | Precision Rating | ABEC1,ABEC3,ABEC5,ABEC7,ABEC9 | |
| Number of Row | Other |
Product Description
One Way Clutch Needle Roller Bearing Data
Shaft Diameter |
| Mass Approx |
| Torgue Ma | 1 |
| ||||
| Borndary Dimensions |
|
| |||||||
Clutch Designation |
| Limiting Speed | Suitable Drawn Cup Bearings | |||||||
|
| Fw | D | C | Rotating Shaft Min-1 | Rotatng Outer Ring Min-1 |
| |||
|
|
| ||||||||
mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | ||||
HF | ||||||||||
3 | HF0306KF |
| 0.9 | 3 | 6.5 | 6 | 0.2 | 36000 | 7000 | HK0306TN |
4 | HF0406KF | -- | 1 | 4 | 8 | 6 | 0.34 | 34000 | 8000 | HK0408TN |
HF0406KFR | -- | 1 | 4 | 8 | 6 | 0.1 | 34000 | 8000 | HK0408TN | |
6 | HF0608KF |
| 2.8 | 6 | 10 | 8 | 1.5 | 20000 | 11000 | HK0608 |
HF0612KF | HF0612 | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
HF0612KFR | HF0612R | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
| HF061210 | 3.5 | 6 | 12 | 10 | 3 | 20000 | 13000 | HK061208 | |
8 | HF0812KF | HF0812 | 3.5 | 8 | 12 | 12 | 3.15 | 17000 | 12000 | HK0808 |
HF0812KFR | HF0812R | 3.5 | 8 | 12 | 12 | 4 | 17000 | 12000 | HK0808 | |
-- | HF061210 | 3.2 | 8 | 12 | 10 | 3 | 16000 | 12000 | HK0808 | |
-- | HF081410 | 3.6 | 8 | 14 | 10 | 4.6 | 15000 | 11000 | HK081410 | |
-- | HF081610 | 4.1 | 8 | 16 | 10 | 5.5 | 15000 | 11000 | HK081610 | |
-- | HF081412 | 4 | 8 | 14 | 12 | 5 | 16000 | 12000 | HK081410 | |
10 | HF1012KF | HF1012 | 4 | 10 | 14 | 12 | 5.3 | 14000 | 11000 | HK1010 |
HF1012KFR | HF1012R | 4 | 10 | 14 | 12 | 1.5 | 14000 | 11000 | HK1010 | |
12 | -- | HF1216 | 11 | 12 | 18 | 16 | 12.2 | 11000 | 8000 | HK1212 |
14 | -- | HF1416 | 13 | 14 | 20 | 16 | 17.3 | 9500 | 8000 | HK1412 |
16 | -- | HF1616 | 14 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | HK1612 |
18 | -- | HF1816 | 16 | 18 | 24 | 16 | 24.1 | 7500 | 7500 | HK1812 |
20 | -- | HF2016 | 17 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | HK2010 |
25 | -- | HF2520 | 30 | 25 | 32 | 20 | 66 | 5500 | 5500 | HK2512 |
30 | -- | HF3020 | 36 | 30 | 37 | 20 | 90 | 4500 | 4500 | HK3012 |
35 | -- | HF3520 | 40 | 35 | 42 | 20 | 121 | 3900 | 3900 | HK3512 |
|
|
|
|
|
|
|
| |||
1.Industry package: Plastic paper+Kraft paper,20pcs or 10pcs/roll
2.Plastic tube: 20pcs/tube or 10pcs/tube
3.Single box: plastic bag+single box, OEM supply
4.Carton: Standard export carton(380* 240*180mm) or as your need.
5.Pallet: Wooden or Iron pallet with plastic film against moisture.
FAQ
(1). How to extend the bearing’s lifetime?
a. Before you decide to purchase, please confirm the suitable bearing model
b. Before the installation, please make sure the bearing were put horizontally and preserved in original packing with antirust oil, away from moisture, dust and corrosive environment.
c. Ensure the correct installation, please use the suitable installation tools.
d. Cleaning the bearing regularly
e. Lubricating the bearing regularly
f. Please do no thump the bearing with heavy tools.
(2). What’s your generally delivery time?
For Ready goods: 3-4 days
For Bulk Order: 7-10 days
(3).Can your company ensure a timely delivery?
We have bearings in rich stock, and we can deliver the product timely according to your requirements.
(4).If we want to get a small order for testing, can you meet our needs?
Our company accepts small orders, and normally, free samples are available for clients' testing and evaluation.
