PLC Control System Light Steel Keel Roll Forming Machine

PLC Control System  Light Steel Keel Roll Forming Machine

Technical parameter of production line

Workflow

Decoiling the sheet — Sheet guiding — Roll forming — Measure

length Cutting the panel— panels to the supporter

Key Specifications/Special Features:
· The light steel keel roll forming machine is used as keel for light steel building system
·

1).Automatic inner tight decoiler

il inner diameter 450mm-550mm

b. maximum width of coiling600mm

c. maximum weight of loading 2500kg

2). Main forming machine

a. number of forming steps 11rows

b. material of shaft   45# steel . Outer diameter  60mm

c.main motor power: 5.5kw

d.  The speed of forming: 0-50m/min

3).Hydraulic cutter

a. material of blade:Cr12 mould steel with quenched treatment 60-62

b. cutting system :adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(tracking cutting)

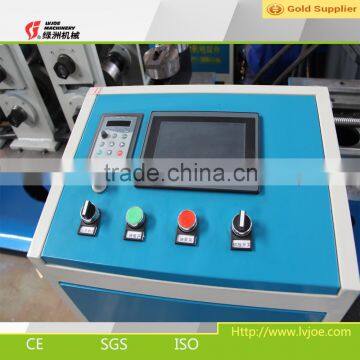

4).The electrical control system

a. The Brand of display: DELTA

b.The main computer (PLC): DELTA DVP14

5).Hydraulic system

a. Adopting advanced hydraulic system of Tai Wan

b. Power:3kw

6).The equipments coating , package

a.the coating adopt international general shade-guide

b.The package :simple waterproof package.

Main technology: we can design machine according to

your requirement
