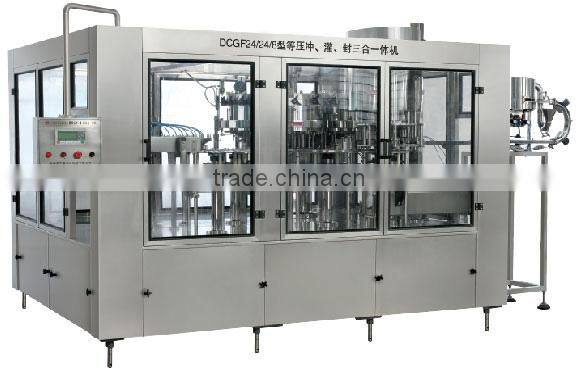

Carbon Dioxide Drink 3-In-1 Liquid Washing Filling Cappping Machine
- ShangHai
You May Like
-
Automatic 3-In-1 Automatic Table Carbonated Beverage Filling Machine/Bottling Equipment For Alcohol Drink
-
3-in-1 Carbonated Drink Filling Machine/carbonated Drink Production Line
-
Full Automatic DGF40-40-12 3-in-1 Carbonated Drink Filling Machine
-
Pet,glass Bottle 3-in-1 Carbonated Drink Filling Machine
-
6000BPH 3-in-1 Carbonated Drink Filling Machine
-
The Professional Product of 3-in-1 Carbonated Drink Filling Machine
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Automatic Grade | Automatic | |
| Driven Type | Electric | Voltage | 380V, OME | |
| Power | 6.58 | Place of Origin | Jiangsu, China | |
| Brand Name | KeYuan filling machine | Model Number | DGF24-24-8 | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.3-in-1 carbonated drink filling machine2.Production capacity:2000-32000BPH
3.Filling volume:330-1500ml
Carbonated drinks filling machine
Production Introduction:
1.The filling machine is used in producing all kind contained with polyester bottle.
2.Washing.filling,sealing can be carried out on the same machine.
3.The advanced technology from Germany and Italy are employed.
4.The filling device can be stopped automatically when there is no bottle or bottles are damaged.
5. The bottle outlet starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.
6.The whole machine is controlled by PLC with touch-screen as the interface between human and machine.The amount of the drinks in the drink tank can be controlled automatically.The filling and capping will be stopped automatically when there is no bottly.
Technical Parameters:
Model | DCGF12-12-6 | DCGF18-18-6 | DCGF24-24-6 | DCGF32-32-8 | DCGF40-40-10 |
Production Capability(b/h) | 4000 | 6000 | 10000 | 15000 | 18000 |
Applicable Bottle Type | Bottle Diameter:50-100mm;Height:150-320mm;Volume:330-1500ml | ||||
Applicable Cap Shape | Plastic Screw Cap | ||||
Gas Source Pressure(Map) | 0.6 | ||||
Total Power(kw) | 4.78 | 5.64 | 6.72 | 8.89 | 9.98 |
Total Weight(kg) | 2500 | 3000 | 4500 | 6500 | 8000 |
Dimension(L*W*H0mm | 2400*1700*2300 | 2450*1800*2300 | 2800*2100*2300 | 3500*2100*2300 | 4960*2280*2580 |
Production Detail:

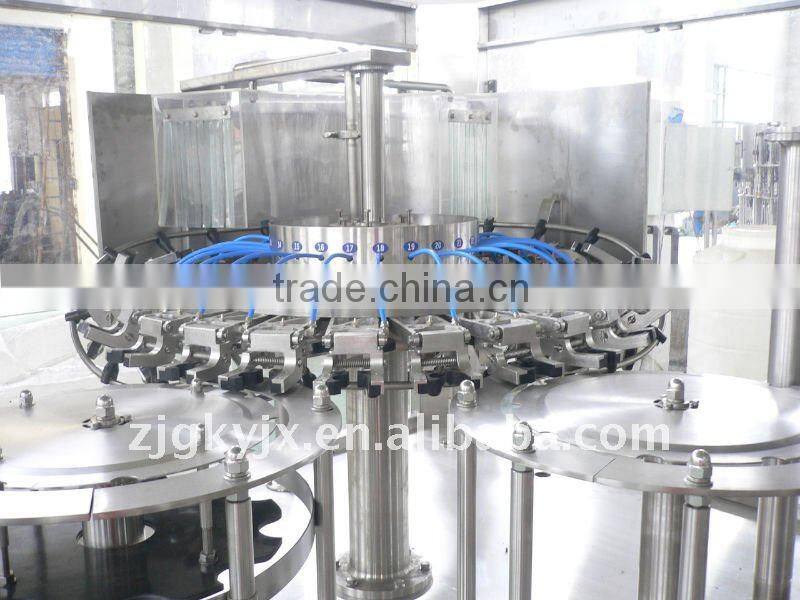

washing

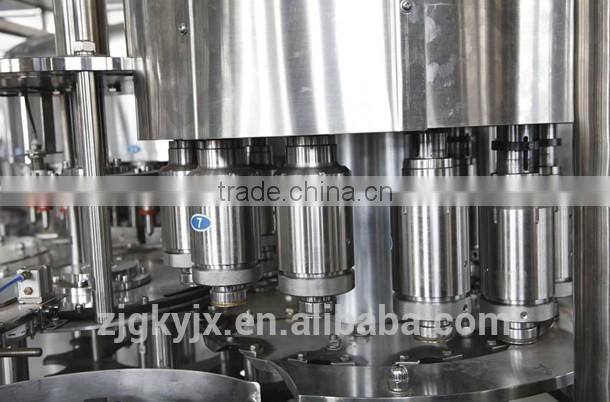

Filling
Capping
