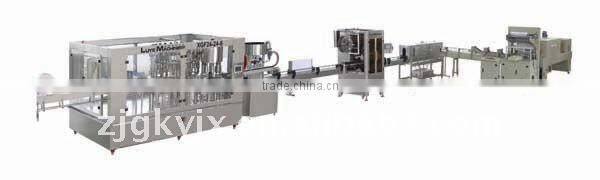

Soda Bottling Line
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | keyuan | |
| Model Number | DGF |
Product Description
Specifications
soda bottling line1.rinser/filling/capping
2.Warranty :1 year
3.capacity:4000-18000bph
Characteristics:
soda bottling line
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--bottleneck clamping and bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine.
4. Main electronic components are all from famous international enterprises, like Siemens or Mitsubishi.
5. All spare parts that may touch with water are made from high-quality stainless steel.
soda bottling line
Main Technical Specifications
Model: | DGF18/12/6 | DGF18/18/6 | DGF24/24/8 | DGF32/32/10 | DGF40/40/12 | DGF48/48/12 |
Production Capacity:500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
Suitable Bottle Standard:(mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
Suitable Cap Standard:(mm) | φ50-φ110 | |||||
Filling Pressure:(Mpa) | 0.2-0.3 | |||||
Filling Model: | by Gravity Constant pressure filling | |||||
Installed Capacity:(L) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
Overall SizeL×W×H(mm) | 2400×1670 | 2470×1970 | 2865×2170 | 3700×2570 | 3800×2950 | 4500×3400 |
Total Weight:(kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |
Our factory is specialized in beverage filling production line, such as carbonated beverage filling machine, hot juice filling machine, beer filling machine, as well as water production line. We can supply the whole project line for our customer, and also turn-key project.
For more information, please contact with me directly, then i will make a detailed offer for your reference.
soda bottling line
Carbonated beverage/soft drink filling machine production line soda bottling machine
