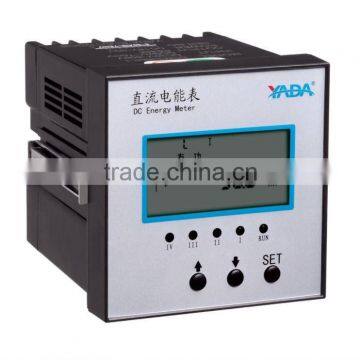

DC Energy meter
- 2000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | YADA | |
| Model Number | DCM3366P-1 | Display Type | Digital Only | |
| Phase | Single Phase | Accuracy Class | 1.0 | |
| Operating Temperature | -25~+55℃ | Dimensions | 92mm x 92mm |
Product Description
Specifications
1.RS485/232 port2.LCD display
3.Modbus-RTU & DL/T645-1997 double protocols
4.DC energy measurement
Electrical Characteristics | ||||
Measuring Characteristics | Single-loop DC power computation | |||
Measurement | current & voltage | |||
power | ||||
Accuracy |
DC energy |
1.0 | ||
Data Refreshing rate | 1s | |||
Input voltage characteristics |
Spec. |
DC1~60V, DC12~600V(customized) | ||
Measuring voltage |
Measuring: 0.2Umax ~1.2Umax | |||
Input consumption | ≤1W | |||
Input current characteristics | Input |
0~75mV or 4~20mA | ||
Measureing current | 0.75~75mV or 4~20mA | |||
Input power consumption | ≤0.1W | |||
Working power supply |
Auxiliary power supply | DC18~90V | ||
Power consumption | ≤1W | |||
Communication | ||||
Comms. protocol |
Modbus & DL/T645-1997 double protocols | |||
Comms. port | RS485 or RS232(RS485 and RS232 use the same power supply) | |||
Data Format | E-8-1 | |||
Baud rate | 1200,2400,4800,9600,19200,(Default )9600 | |||
Mechanical properties | ||||
Dimensions |
|
96mm x 96mm x 98 mm(with display) | ||
| 96 mmx 96 mmx 81 mm(installed behind the front pannel) | |||
