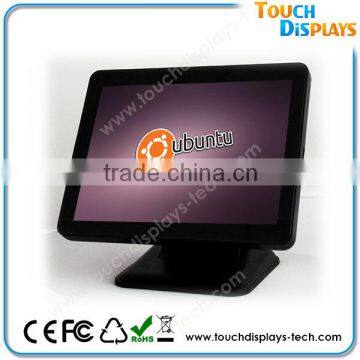

pos with label name sticker printer

Model

1515E-IDT

Case/Bezel Color

Black/Silvery/white(Cistomized)

Display Size

15.0"

Style

True Flat

Touch panel

Projected Capacitive touch screen (SAW touch screen optional)

Touch response time

8ms (PCT typical) and 10ms(SAW typical)

Touchcomputors Dimensions

372x 212 x 318 mm(with stand);372x 56 x 318 mm(without stand)

LCD Type

TFT LCD(LED backlight)

Useful Screen Area

304 mm x 228 mm

Aspect ratio

4:3

Optimal (native) Resolution

1024 x 768

LCD panel Pixel pitch

0.297 x 0.297 mm

LCD panel Colors

16.7 million

LCD panel Brightness

400 cd/m2 (high brightness customized upto 1000 cd/m2)

LCD panel Response Time

30 ms

Viewing Angle

(typical, from center)

Horizontal (left/right)

±80° or 160° total

Vertical (up/down)

±80° or 160° total

Contrast Ratio

800:1

output Video signal connector

Mini D-Sub 15-Pin VGA type and HDMI type

Input interface

usb 2.0*4(usb 3.0*2 optional)PCI-E(3G SIM card,wifi and bluetooth optional)

Earphone*1Mic*1Com*3RJ45*1

Extend interface

USB2.0*4Com*21*PLTHdd&SSD&CF Card external interface

Power Supply Type

Monitor input: +12VDC ±5%,4.0 A; DC Jack (2.5F)

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power Comsuption: 48W max

 ECM

(Embed Computer Modul)

ECM1: Intel® processor D2550 (Dual Core 1.86GHz,Fanless);

ECM2: Intel® processor D2700 (Dual Core 2.13GHz,Fanless);

ECM3: Intel® processor P7550 (Dual Core 2.26GHz,Fan-cool);

ECM4: Intel® processor i3 2310M(Dual Core 2.1GHz, Fan-cool);

ECM5: Intel® processor i5 2410M (Dual Core 2.3GHz/2.9GHz Turbo, Fan-cool);

ECM6: Intel® processor i7 2620M (Dual Core 2.7GHz/3.4GHz Turbo, Fan-cool);

HDD:320G(500G-1TB optional);SDD:32G(upto 128G optional);CF Card 32G(upto 128G Optional); Memory: DDR3 2G(upto 8G);

Operation System:Win7win8XpwinCEVistaLinux

ECM7: Android dual core 1.5G, Rom 1G,Flash 4G

ECM8: Android quad-core 1.2G,Rom 1G, Flash 4G

Operation System: 4.2.2

Temperature

Operating: 0°C to 40°C ;Storage -20°C to 60°C

Humidity (non condensing)

Operating: 20%-80%; Storage: 10%-90%

Shipping Carton Dimensions

556 x 206 x 456 mm(with stand);470 x 210 x 420 mm(without stand)

Weight (approx.)

Actual: 6.8 kg ;Shipping: 8.2 kg

Warranty Monitor

3 years(Except for LCD panel 1 year)

Backlight lamp life: typical 50,000 hours to half brightness

Agency Approvals

CE/FCC Rohs

Mounting Options

75 mm and 100mm VESA mount
