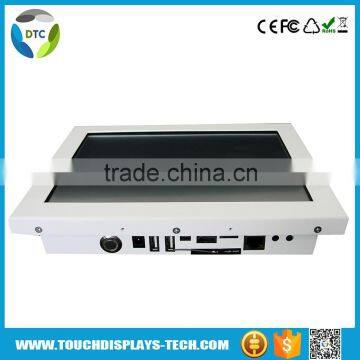

Hot selling 10.4" tft lcd open frame touch monitor (Factory)
US$ 156 - 316
/ Unit
1 Unit(Min. Order)
- China Port
- T/T L/C D/P D/A PayPal
You May Like
-
Hot selling 10" touch open frame touch screen monitor (Factory)
-
High Resolution all in one 17 inch tft lcd open frame touch monitor
-
High Resolution 17 inch Touch Screen open frame monitor
-
1731E-IOT Hot sale metal case open frame touch monitor 17inch
-
1731E-IOT Hot sale led all in one open frame touch monitor
-
Hot sale 17" all in one open frame touch monitor
Product Details
| Products Status | Stock | Screen Size | Other, 10.4" | |
| Type | Other, SAW/Resistive | Interface Type | D-Sub, DVI, Serial, USB | |
| Resolution | 1024 x 768 | Brand Name | Touch Displays | |
| Model Number | 1041E | Place of Origin | Sichuan, China |
Product Description
Hot selling 10.4" tft lcd open frame touch monitor (Factory)
Product Overview |
Features
1.Small footprint r retail-hardended r flexible touchcpmputers
2.400:1 contrast ratior and 400-nit brightness (LCD panel)
3. Long lasting product cycle-enclosure
4.Mounting options including rear-mount and VESA mount
5. High quality panel with 140° x 130° viewing angle
6. Optional front mount and rack mount bezels
7.Front bezel be sealed IP64 optional
8.Fully RoHS compliant
9. Resistive Single-touch and Projected Capacitive Multi-touch Technology
Applications
1. Countertop kiosk information systems
2. Gaming and amusement
3.Self-service Equipment
4. Point-of-information
Accessories
1.Power Cord (USr EU or UK type)
2.Power Brick
3.User Manual (English only)
Product Picture & Specification |
| Model | 1041E-IOT | |
| Case/Bezel Color | Black /white(Customized) | |
| Display Size | 10.4" | |
| Touch panel | Resistive touch screen or Projected Capacitive touch screen | |
| Touch response time | 5ms (PCT typical) or 8ms(PCT typical) | |
| Touchcomputors Dimensions | 271 x 52.2 x 205 mm | |
| Useful Screen Area | 213.2 mm x 160.4 mm | |
| Aspect ratio | 4:3 | |
| Optimal (native) Resolution | 800 x 600 (1024*768 optional) | |
| LCD panel Pixel pitch | 0.264 x 0.264 mm | |
| LCD panel Colors | 16.2 million | |
| LCD panel Brightness | 400 cd/m2 (high brightness customized upto 1000 cd/m2) | |
| LCD panel Response Time | 25 ms | |
| LCD panel Contrast Ratio | 800:1 | |
| Viewing Angle (typicalr from center) | Horizontal (left/right | ±70° or 140° total |
| Vertical (up/down | ±60°/±70° or 130° total | |
| output Video signal connector | Mini D-Sub 15-Pin VGA type and HDMI type | |
| Input interface | USB 2.0*4(USB 3.0*2 optional) PCI-E(3G SIM cardr WIFI and Bluetooth optional) | |
| Earphone*1Mic*1Com*3RJ45*1 | ||
| Extend interface | USB2.0*4Com*21*PLT HDD&SSD&CF Card external interface | |
| Power Supply Type | Monitor input: +12VDC ±5% r 4.0-6.0 A optional; DC Jack (2.5) | |
| AC to DC power brick input: 100-240 VACr 50/60 Hz | ||
| Power Consumption: 48W-72W optional | ||
| ECM (Embed Computer Modul) | ECM1: Intel® processor D2550 (Dual Core 1.86GHzrFanless); ECM2: Intel® processor D2700 (Dual Core 2.13GHzrFanless); ECM3: Intel® processor P8600 (Dual Core 2.4GHzrFan-cool); ECM4: Intel® processor i3 2310M (Dual Core 2.1GHzr Fan-cool); ECM5: Intel® processor i5 2415M (Dual Core 2.3GHz/2.9GHz Turbor Fan-cool); ECM6: Intel® processor i7 2620M (Dual Core 2.7GHz/3.4GHz Turbor Fan-cool); HDD:320G(500G-1TB optional); SDD:32G(up to 128G optional); CF Card 32G(up to 128G Optional); Memory: DDR3 2G(up to 8G); -peration System: Win7Win8XPWinCEVistaLinux ECM7: Android dual core 1.5Gr Rom 1GrFlash 4G ECM8: Android quad-core 1.2GrRom 1Gr Flash 4G -peration System: 4.4.2 | |
| Temperature | Operating: 0°C to 40°C ;Storage -20°C to 60°C | |
| Humidity (non condensing) | Operating: 20%-80%; Storage: 10%-90% | |
| Shipping Carton Dimensions | 420 x 210 x 470 mm(2 PCS) | |
| Weight (approx.) | Actual: 3 kg ;Shipping: 12 kg | |
| Warranty Monitor | 3 years(Except for LCD panel 1 year) | |
| Backlight lamp life: typical 50,000 hours to half brightness | ||
| Agency Approvals | CE/FCC RoHS | |
| Mounting Options | 75 mm and 100mm VESA mount | |
