Home > Products > open frame touch monitor-touch all in one > Touch All-In-One 21" open frame touch monitor

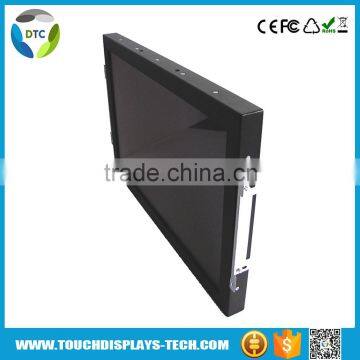

Touch All-In-One 21" open frame touch monitor
US$ 156 - 316
/ Unit
1 Unit(Min. Order)
- China Port
- T/T L/C D/P D/A PayPal
You May Like
-
China best cheap interactive touch screen smart tv all in one lcd led pc tv for sale
-
Open frame 21.5 inch touch screen LCD monitor with USB port
-
15 inch/17 inch/19 inch touch screen monitor/Open frame monitor
-
Hot selling All-in-one version 10'' open frame touch screen monitor
-
Hot selling 10.4"diy open frame touch monitor (Factory)
-
Hot selling 10.4" tft lcd open frame touch monitor (Factory)
Product Details
| Products Status | Stock | Screen Size | Other, 21.5" | |
| Type | Other, SAW/Resistive | Interface Type | D-Sub, DVI, Serial, USB | |
| Resolution | Other, 1920*1080 | Brand Name | Touch Displays | |
| Model Number | 2151E-OT-F | Place of Origin | Sichuan, China |
Product Description
Product Overview |
Features
1. Small footprint , retail-hardended , flexible touchcpmputers
2.1000:1 contrast ratio, and 250-nit brightness (LCD panel)
3.Long lasting product cycle-enclosure
4. Multilingual on-screen display (OSD)
5. High quality panel with 170° x 160° viewing angle
6. Optional front mount and rack mount bezels
7. optional Front bezel be sealed IP64
8.Fully RoHS compliant
9. Mounting options including rear-mount and VESA mount
10. Resistive and Surface Acoustic Wave Single-touch Technology
Applications
1.Countertop kiosk information systems
2.Gaming and amusement
3. Self-service Equipment
4. Point-of-information
Accessories
1. Power Cord (US, EU or UK type)
2.Power Brick
3.User Manual (English only)
Product Picture & Specification |
| Model | 2151E-OT-F | |
| Case/Bezel Color | Blackwhite | |
| Display Size | 21.5" | |
| Touch panel | Projected Capacitive Touch Screen | |
| Touch points | 10ms | |
| Touch Monitor Dimensions | 520.6 x 38.8 x 312.1 mm | |
| LCD Type | TFT LCD(LED backlight) | |
| Useful Screen Area | 257 mm x 146 mm | |
| Aspect ratio | 16:9 | |
| Optimal (native) Resolution | 1920*1080 | |
| LCD panel Pixel pitch | 0.1875 x 0.1875 mm | |
| LCD panel Colors | 16.7 million | |
| LCD panel Brightness | 250 cd/m2 | |
| LCD panel Response Time | 25 ms | |
| Viewing Angle (typical, from | Horizontal | ±89° or 178° total |
| Vertical | ±89° or 178° total | |
| Contrast Ratio | 1000:1 | |
| Input Video signal connector | Mini D-Sub 15-Pin VGA type and DVI type (optional) | |
| Input Touch signal connector | USB or COM (optional) | |
| Power Supply Type | Monitor input: +12VDC ±5%,4.0 A; DC Jack (2.5) | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | ||
| Power dissipation: 30W max | ||
| On-screen display(OSD) | Controls(back): Power Menup Downuto | |
| Settings: contrast, brightness, H/V position; | ||
| RGB(color temp),clock, phase, recall; | ||
| Languages: English, German, French ,Spanish, Japanese | ||
| Temperature | Operating: 0°C to 40°C ;Storage -20°C to 60°C | |
| Humidity (non condensing) | Operating: 20%-80%; Storage: 10%-90% | |
| Shipping Carton Dimensions | 616 x 206 x 456 mm (2 PCS) | |
| Weight (approx.) | Actual: 5.8 kg ;Shipping: 14.2 kg(2 PCS) | |
| Warranty Monitor | 3 years(Except for LCD panel 1 year) | |
| Backlight lamp life: typical 50,000 hours to half brightness | ||
| Agency Approvals | CE/FCC RoHS | |
| Mounting Options | 75 mm and 100mm VESA mount | |
