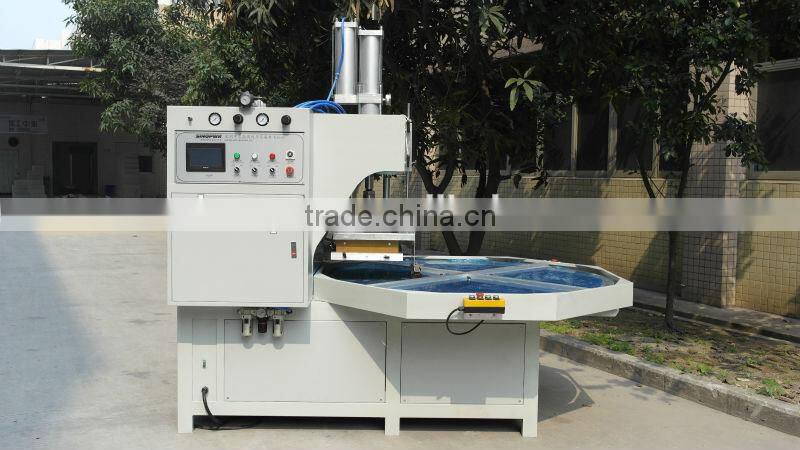

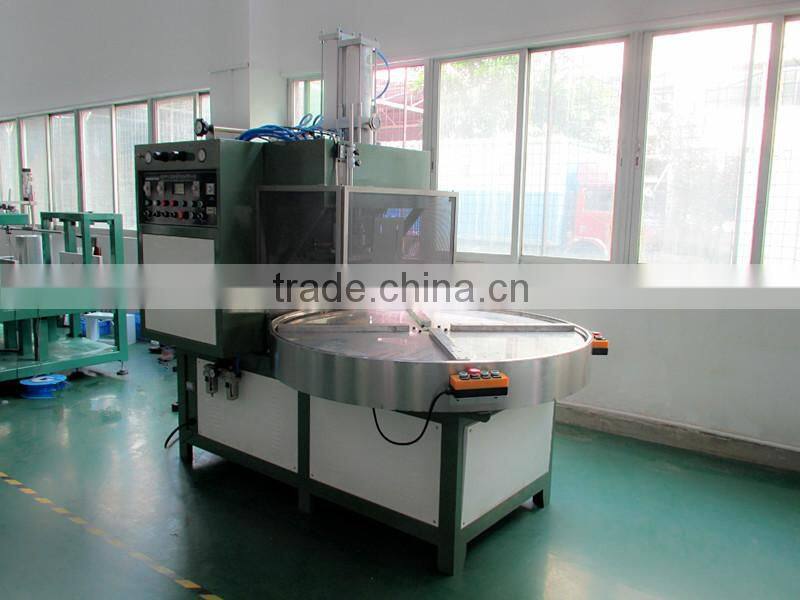

8kw Rotary 4 Positions HF Blister Welder

 8kw rotary 4 positions HF blister welder

HF Welder is designed specifically for production of small and large format tensile structures, membranes, tarpaulin, tents, oil booms, truck covers, swimming pool liners & covers, airline hangars, large billboards, fast doors, side curtains, etc. This basic design machine can be fitted with special impulse electrode for welding nonHF weldable fabrics made of PE and PP, as well as FlexEL ‘soft’ multilayer welding electrode and curved HF electrodes for sealing round window profiles made of clear PVC and any other shapes requiring precision welding.

We have divided our high frequency welding and cutting machines into several categories:
1.Automatic turntable high frequency welding or weld &cut  machine(with/without robot)
2.Automatic sliding way high frequency  welding or weld &cut machine
3.Manual shuttle/ push plate high frequency  welding or weld &cut machine
4.Double heads high frequency  welding or weld &cut machine.

Automatic weld cycles, optional preheated weld platen, pneumatic or hydraulic weld head drive, electronic motion and weld cycle counter make this machine a perfect tool for high end production facility where precision, durability and strength are the key.

Functions:
1. Steady frequency:
High frequeny blister packing machine strictly adopts industrial wave band 27.12/40.68 MHz according to the provision of nations "radio interference committee"(CISPR) with steady frequency device and prevent the leak of magnetism, have no interference about the outside environment.
2. Spark restrains system:
High frequency blister packing machine has high sensitive Spark restraint electro-circuit can check out the imbalance current which can bring spark and cut it off, meanwhile alert the operator.
3. Vibrate current setting:
Hgh frequency blister packing machine the output can be adjusted by adjuster according to thickness of material and the size of products, which ensure the quality of welding and promote production.
4. Security protection:
High frequency blister packing machine has security protection system of exceed voltage and electric current.

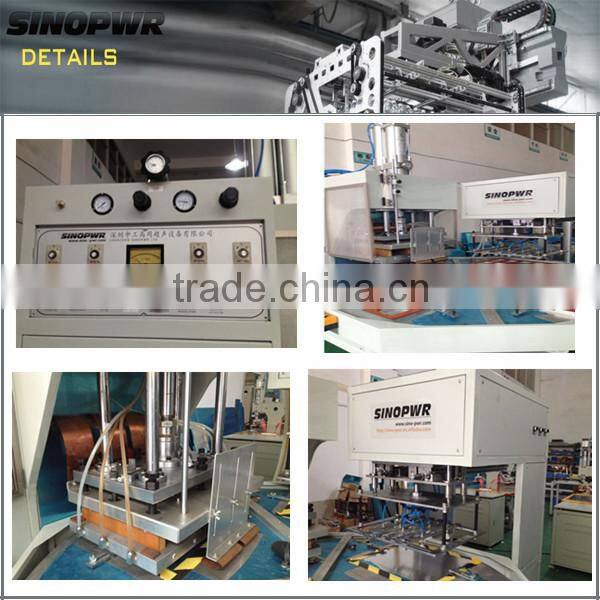

Features:

1.Adopt splitting device by motor,which the working position can be rotating alternating work.

2.3-5 working positions available, which also can be matched with robot instead of labor feeding or removing material.

3.Equipped with oil pressure supercharging device make the output larger, also finishing the whole process with welding and cutting scraps one-time.

4.American NL-5557 sparkle protector device, which make the mold & products to minimize the damage degree.

5.Adopt Europe type high frequency coaxial resonators when current overloaded then automatically cut off the pressure to protect the oscillation tubes and rectifier.

6.Custom size work tables and welding platen is available

Application:

Used for APET,PETG,PVC,PET,etc material usage of double blister sealing, blister paper card packing, toothbrush packing, with EVA cloth leather, leather,PU material welding and fusing,also be used in PVC, APET, PETG, PP sheet of soft crease box production line (SK)

Parameters:

ShenZhen Sinopwr Ltd is specialized to manufacture plastic welding machines .Our machine consists of stationary and movable high frequency welding machines, ultrasonic plastic welding machine, heat plate welding machine, automatic blister packaging machine line.We have also designed and manufactured a great number of welding machines according to specific customer's needs.

It's our honor to produce the machine for our customer, We are ready to be your partners for the win-win cooperation and mutual benefits. The constantly growing family of customers is the result of making their expectations come true.
