Factory Price Flotation Tank, Flotation Cell, Flotation Machine
- Shanghai Qingdao Dalian Port for Factory Price Flotation Tank Flotation Cell Flotation Machine Export
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Efficient Factory Price Dry and Wet Magnetic Separator
-
High Quality Best Price Sawdust Biomass Wood Chips Rotary Drum Dryer
-
China Wide Application Manufactory Price Dry and Wet Ball Mill
-
Energy Saving PE-250 x 400 Small Mini Jaw Stone Crusher
-
BV SGS Approved Best Price PFW Series Stone Impact Crusher
-
Widely Used Rotary Silica Sand Dryer, Three Triple Drum Dryer
Product Details
| Condition | New | Type | Flotation Separator | |
| Production Capacity | 0.2-8 m³/min | Place of Origin | Shanghai, China | |
| Brand Name | LIPU | Model Number | SF, BF, KYF series | |
| Voltage | In accordance with local voltage | Power(W) | 1.1-45 kw | |
| Dimension(L*W*H) | According to different models | Weight | 0.4-10.3 t | |
| Certification | ISO, BV, CE | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Export standard container or as customers' requirements.(Factory Price Flotation Tank, Flotation Cell, Flotation Machine)
Product Description

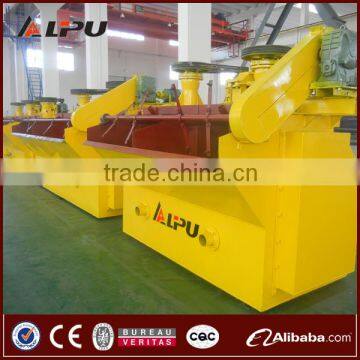

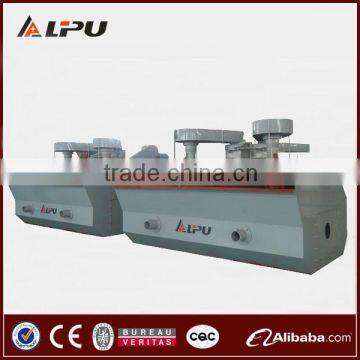

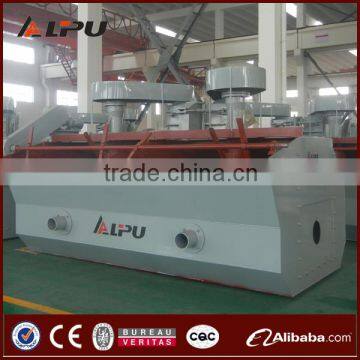

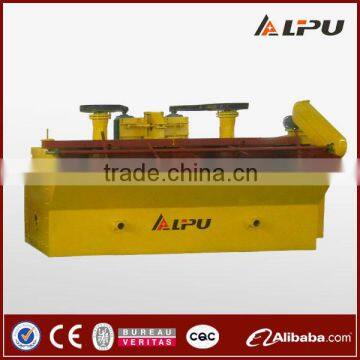

Factory Price Flotation Tank, Flotation Cell, Flotation Machine
Flotation Machine is suitable to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mineral, chemical rough and etc. It can be used in roughing, scavenging, concentration or reverse flotation. In flotation machine, the slurry mixed with drugs would be stirred and inhaled air, so that valuable minerals adhere to bubbles, float to slurry surface and then scraped off, other minerals still stay in the slurry, thus valuable minerals are separated out.
1. Large inhaling capacity and low consumption;
2. Process is easy to be changed;
3. Complete flotation circuit with inhaling air and slurry, no auxiliares are needed;
4. Reasonable circulation of slurry decreases coarse sand sedimentation;
5. Automatic controlling device makes adjustment more convenient.
*Technical Parameters-SFseries of Flotation Machine
Modle | Cell volume(m³) | Impeller diameter(mm) | Impeller speed | Capacity (m³/min) | Main motor power(kW) | Scraper motor power(kW) | Weight |
SF0.37 | 0.37 | 300 | 442 | 0.2-0.4 | 1.5 | 1.1 | 0.4 |
SF0.7 | 0.7 | 350 | 400 | 0.3-1 | 3 | 1.1 | 0.9 |
SF1.2 | 1.2 | 450 | 312 | 0.6-1.2 | 5.5 | 1.1 | 1.4 |
SF2.8 | 2.8 | 550 | 268 | 1.5-3.5 | 11 | 1.1 | 2.2 |
SF4 | 4 | 650 | 235 | 2--4 | 15 | 1.5 | 2.6 |
SF8 | 8 | 760 | 191 | 4--8 | 30 | 1.5 | 4.3 |
SF16 | 16 | 850 | 190 | 5--16 | 45 | 1.5 | 7.4 |
*Technical Parameters-BFseries of Flotation Machine
Model | Cell volume (m³) | Impeller diameter(mm) | Impeller speed (r/min) | Air inflow (m³/m2.min) | Capacity (m³/min) | Power (kW) | Weight (t/cell) |
BF2.8 | 2.8 | 550 | 278 | 0.9-1.1 | 1.4-3 | 11 | 2.1 |
BF4 | 4 | 650 | 235 | 0.9-1.1 | 2.4-4 | 15 | 2.6 |
BF6 | 6 | 700 | 205 | 0.9-1.1 | 3--6 | 18.5 | 3.3 |
BF8 | 8 | 760 | 188 | 0.9-1.1 | 4--8 | 22 | 4.1 |
BF10 | 10 | 760 | 188 | 0.9-1.1 | 5--10 | 22 | 4.5 |
BF16 | 16 | 850 | 195 | 0.9-1.1 | 8--16 | 37 | 8.3 |
BF20 | 20 | 850 | 195 | 0.9-1.1 | 10--20 | 45 | 8.7 |
BF24 | 24 | 920 | 181 | 0.9-1.1 | 12--24 | 45 | 9 |
*Technical Parameters-KYF series of Inflatable Flotation Machine
Model | Cell volume (m³) | Impeller diameter (mm) | Impeller speed (r/min) | Air pressure of air blower (kPa) | Max. Air inflow (m3/m2.min) | Capacity (m3/min) | Main motor power (kW) | Scraper motor power (kW) | Weight (t/cell) |
KYF1 | 1 | 340 | 281 | ≥12.6 | 2 | 0. 2-1 | 4 | 1. 1 | 0. 8 |
KYF2 | 2 | 410 | 247 | ≥14.7 | 2 | 0. 4-2 | 5. 5 | 1. 1 | 1. 5 |
KYF3 | 3 | 480 | 219 | ≥19.8 | 2 | 0. 6-3 | 7. 5 | 1. 5 | 1. 9 |
KYF4 | 4 | 550 | 200 | ≥19.8 | 2 | 1. 2-4 | 11 | 1. 5 | 2. 2 |
KYF8 | 8 | 630 | 175 | ≥21.6 | 2 | 3. 0-8 | 15 | 1. 5 | 4. 2 |
KYF16 | 16 | 740 | 160 | ≥25.5 | 2 | 4. 0-16 | 30 | 1. 5 | 6 |
KYF24 | 24 | 800 | 150 | ≥30.4 | 2 | 4. 0-24 | 30 | 1. 5 | 7. 5 |
KYF38 | 38 | 880 | 138 | ≥34.3 | 2 | 10-38 | 37 | 1. 5 | 10. 3 |
| FAQ |
| Q: How about the quality of your products? |
|---|
| A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection. |
| Q: How about the price? |
| A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount. |
| Q: Do you provide after-sale service? |
| A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems. |
| Q: Do you provide equipment operation training? |
| A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports. |
| Q: Can you test our samples? |
| A: Yes. You can send your samples to us for test and analysis. |
| Q: Do you provide beneficiation flow chart? |
| A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc. |
Company Profile

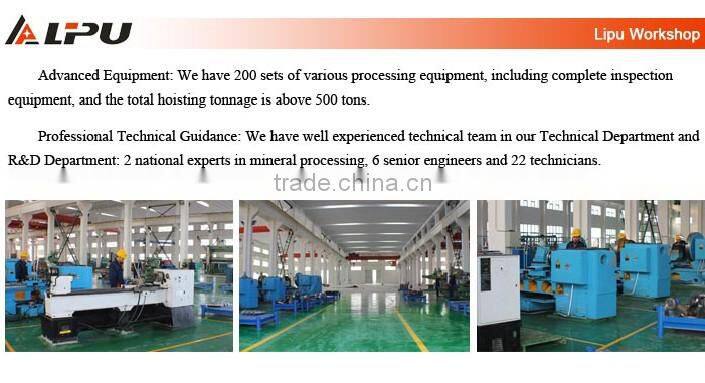

Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants. We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance. While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions. Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
