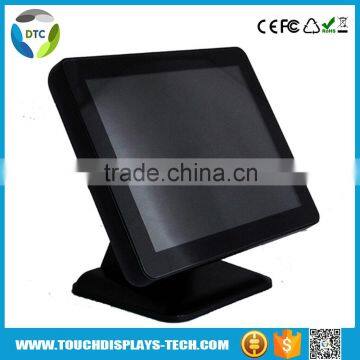

800:1 contrast ratio 15 inch Desktop true Flat touch Monitor

Case/Bezel Color

Black/Silvery/White/Customize

Display Size

15.0"

Style

True Flat

Aspect ratio

4:3

Useful Screen Area

304 mm x 228 mm

Touch panel

Projected Capacitive touch screen (SAW and Resistive touch screen optional)

Touch response time

8ms (PCAP typical)

Touch Monitor Dimensions

372x 212 x 318 mm(with stand)
372x 56 x 318 mm(without stand)

Optimal (native) Resolution

1024 x 768

LCD panel Pixel pitch

0.297 x 0.297 mm

LCD panel Colors

16.7 million

LCD panel Brightness

400 cd/m2 (brightness customized from 250 ~ 1000 cd/m2)

LCD panel Response Time

30 ms

Viewing Angle

(typical, from center)

Horizontal (left/right)

±80° or 160° total

Vertical (up/down)

±80° or 160° total

Contrast Ratio

800:1

Input Video signal connector

Mini D-Sub 15-Pin VGA type and HDMI type or DVI type optional

Input Touch signal connector

USB or COM

Net interface

1*RJ45,1*wifi and bluetooth,3G Card(optional)

Power Supply Type

Monitor input interface: +12VDC ±5%,4.0 A;

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power Consumption: 20W

On-screen display(OSD)

Controls(back):Power, Menu, Up, Down, Auto;
Settings: Contrast, Brightness, H/V position;
RGB(color temp),Clock, Phase, Recall;
Languages: English, German, French ,Spanish, Japanese, Italy, Chinese;

Temperature

Operating: 0°C to 40°C ;Storage -20°C to 60°C

Humidity (non condensing)

Operating: 20%-80%; Storage: 10%-90%

Shipping Carton Dimensions

556 x 206 x 456 mm(with stand)
470 x 210 x 420 mm(without stand)

Weight (approx.)

Actual: 5.8 kg ;Shipping: 7.2 kg(with stand)
Actual: 2.8 kg ;Shipping: 4.2 kg(without stand)

Warranty Monitor

3 years(Except for LCD panel 1 year)

Backlight lamp life: typical 50,000 hours to half brightness

Agency Approvals

CE FCC RoHS(UL or GS Customized)

Mounting Options

75 mm and 100mm VESA mount
