Home > Products > Ball Mill&Grinding Machines > China High Effciency Wet Grinding Ball Mill
China High Effciency Wet Grinding Ball Mill
- Shanghai qingdao dalian for ball mill classifier export
- T/T
You May Like
-
Mineral Processing Equipment Vibration Ball Mill
-
Lipu Brand Ore Grinding Ball Mill With Competitive Price
-
LIPU Wet Type Raw Material Grinding Tube Mill
-
LIPU Professional and Advanced Tube Mill for Cement Production Line
-
Cheapest Rod Mill With Good Quality
-
Ore Powder Grinding Small Ball Mill Machine, Energy Saving Small Ball Mill for Sale
Product Details
| Condition | New | Type | Other, Ball Mill, ball mill classifier | |
| Motor Type | AC Motor | Power(W) | 15000-2250000 | |
| Capacity(t/h) | 0.4-60 | Place of Origin | Shanghai, China | |
| Brand Name | LIPU | Model Number | various | |
| Dimension(L*W*H) | According to different capacities | Weight | 4.2-300 | |
| Certification | CE BV ISO9001, CE,ISO9001:2000 | Warranty | One Year, 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Standard container or as customers' requirements.(ball mill classifier)
Product Description
China High Effciency Wet Grinding Ball Mill
Brief Introduction of Wet Grinding Ball Mill:
LIPU ball mill is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc.When ball mill works, certain water and other liquid will be added into materials to increase flowability of materials, so the capacity is increased.
Features of Wet Grinding Ball Mill:
1. Large application range, simple structure and convenient maintenance.
2. Large capacity and continuous work are very obvious.
3. Barrel lining and grinding media can apply various abrasive materials.
4. Installation and adjustment are very convenient and easy to be operated.

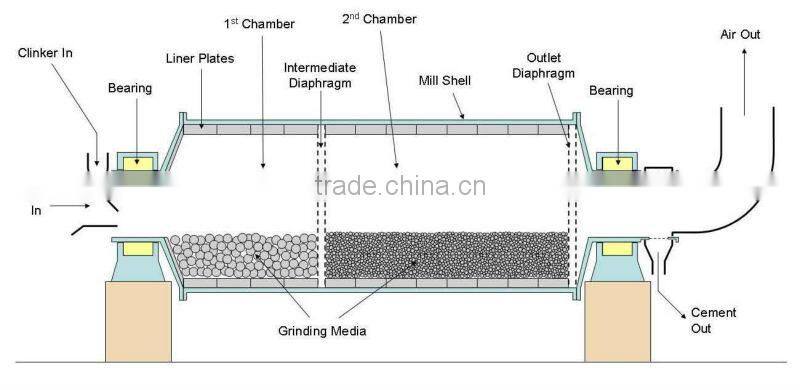

Working Principle of Wet Grinding Ball Mill:
When the Ball Mill works, motor and speed reducer transmit torque force to big and small gears of Ball Mill, so the barrel rotates. When the barrel rotates, Steel balls or other grinding media in the barrel are lifted to a certain height and fall down freely, so materials in the barrel are impacted. Grinding media mixing with materials impact and grind materials continuously. The grinding media and materials impact and grind each other when the Ball Mill rotates continuously. The final product will be discharged from outlet when it meets the request, so the grinding process is finished.
Technical Parameters of Wet Grinding Ball Mill:
Model | Effective volume(m3) | Max. steel ball load (t) | Capacity (t/h) | Power(kW) | Rotary speed(rpm) | Weight (t) | ||||
MQG | MQY | MQS | MQG | MQY | MQS | |||||
φ900×1800 | 1 | 1.3 | 1.7 | 2 | 0.9-1.6 | 1.7-3.2 | 2-3.7 | 15 | 37 | 4.2 |
φ900×2100 | 1.1 | 1.5 | 1.9 | 2.3 | 1-1.9 | 2-3.7 | 2.3-4.3 | 18.5 | 37 | 4.9 |
φ900×3000 | 1.6 | 2.2 | 2.8 | 3.3 | 1.4-2.7 | 2.9-5.4 | 3.3-6.2 | 30 | 37 | 7.6 |
φ1200×2400 | 2.4 | 3.3 | 4.1 | 4.9 | 2.2-4 | 4.3-8 | 5-9.2 | 30 | 35 | 8.7 |
φ1200×3000 | 3 | 4.1 | 5.2 | 6.2 | 2.7-5 | 5.4-10 | 6.2-12 | 37 | 35 | 13 |
φ1200×4500 | 4.4 | 6.2 | 7.7 | 9.3 | 4-7.5 | 8.1-15 | 9.3-17 | 55 | 35 | 14 |
φ1500×3000 | 4.8 | 6.6 | 8.3 | 10 | 4.3-8 | 8.6-16 | 10--19 | 75 | 29 | 15 |
φ1500×4500 | 7.1 | 10 | 12 | 15 | 6.5-12 | 13-24 | 15-28 | 110 | 29 | 16 |
φ1500×5700 | 9 | 13 | 16 | 19 | 8.2-15 | 16-31 | 19-35 | 130 | 29 | 24 |
φ1830×3000 | 7.1 | 10 | 12 | 15 | 6.4-12 | 13-24 | 15-28 | 130 | 24.5 | 28 |
φ1830×4500 | 10.6 | 15 | 18 | 22 | 10--18 | 19-36 | 22-41 | 155 | 24.5 | 32 |
φ1830×6500 | 15.3 | 21 | 27 | 32 | 14-26 | 28-52 | 32-60 | 210 | 24 | 35 |
φ1830×7000 | 16.5 | 23 | 29 | 34 | 15-28 | 30-56 | 35-64 | 245 | 24 | 37 |
φ2100×3000 | 9.4 | 13 | 16 | 20 | 9--16 | 17-32 | 20-37 | 155 | 23.5 | 42 |

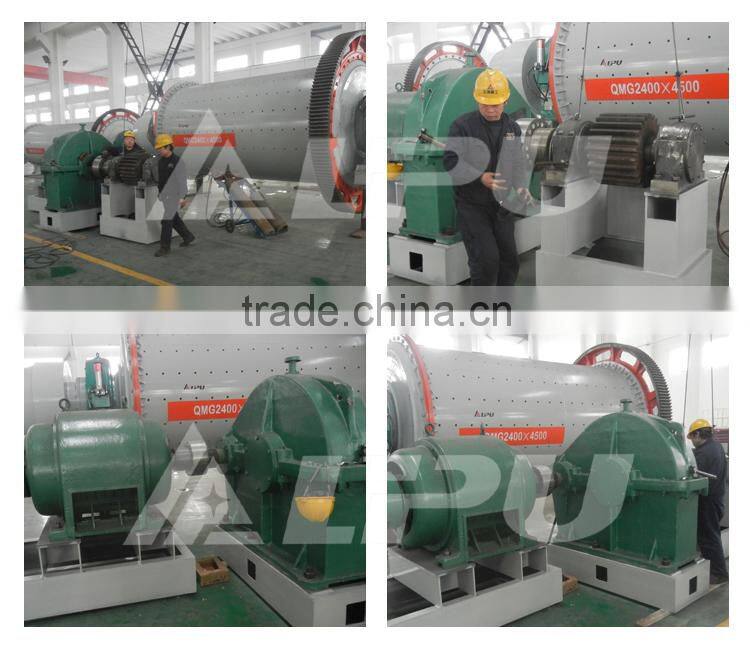

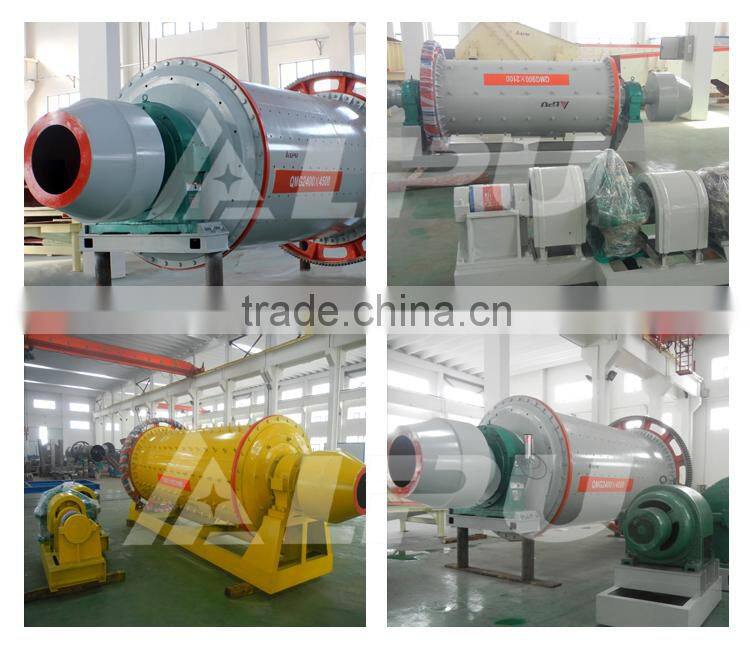

Producing Process of Wet Grinding Ball Mill:

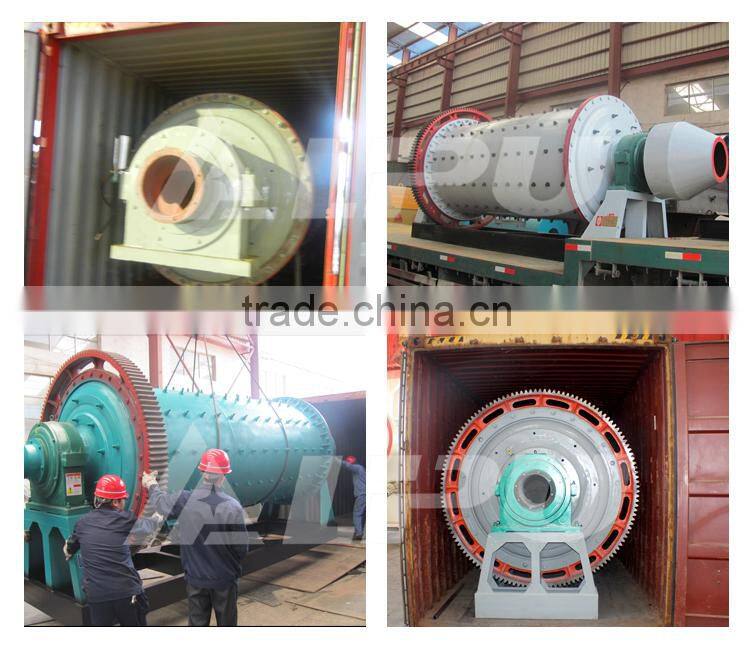

Delivery Site of Wet Grinding Ball Mill:
Work Site of Wet Grinding Ball Mill:
Company Profile
Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants. We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance. While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions. Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
