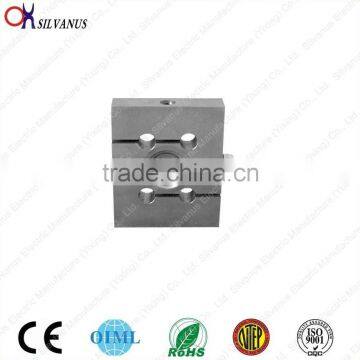

S Type Load Cell for Electronic Crane Scale(TSD)

FOB Price

US$ 30 - 45 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

S Type Load Cell for Electronic Crane Scale

s type load cell Dimensions(mm)

s type load cell Specifications

Emax(Max. capacity)	lb	50~10k
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/2000	Emax/3000
Combined error	%F.S	≤±0.020	≤±0.015
Creep	%F.S/30min	≤±0.020	≤±0.015
Temperature effect on sensitivity	%F.S/10°C	≤±0.02	≤±0.017
Temperature effect on zero	%F.S/10°C	≤±0.02	≤±0.017
Zero balance	%F.S	±1.0
Input resistance	Ω	380±10Ω
Output resistance	Ω	350±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP66/IP68
Load cell material		Alloy steel
Cable length	m	3;5
Cable outer caliber	mm	Φ5

s type load cell Features

lS type load cell , tension and compression

lGood output symmetry , compact structure , simple to install , full range of capacities

lSuitable for electromechanical scale , crane scale ,hopper scale and various special scales

to electronic hook scales and various special weighing apparatus

s type load cell Application

Suitable for electromechanical scale ,crane scale, force measuring systems,hopper scale and various special scales
