Home > Products > Load Cells > pancake loadcell 1t 5t 10t 15t 20t 30t.100t (LFA)(1~100t)

pancake loadcell 1t 5t 10t 15t 20t 30t.100t (LFA)(1~100t)

FOB Price

USD $79 - $149 / Set

1 Set(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	SILVANUS
Model Number	LFA	Usage	Pressure Sensor
Theory	Resistance Sensor	Output	Analog Sensor

Product Description

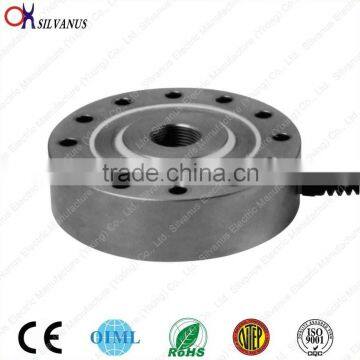

Spoke Type Load Cell(LFA)(1~100t)

Load Cell(LFA) Features

1.Wheel shaped load cell , shear beam

2.Good rigidity , strong side force resistance, overload self-locking

3.Potted sealed or hermetically sealed , IP67 or IP68

4.Widely used in truck scale , railroad scale ,tester ,crane scale ,etc.

Load Cell(LFA) Application

Widely used in truck scale,railroad scale,tester,crane scale,etc.

Load Cell(LFA) Dimensions(mm)

Load Cell(LFA) Specifications

Emax(Max. capacity)	t	1~100
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/2000	Emax/3000
Combined error	%F.S	≤±0.020	≤±0.015
Creep	%F.S/30min	≤±0.020	≤±0.015
Temperature effect on sensitivity	%F.S/10°C	≤±0.02	≤±0.017
Temperature effect on zero	%F.S/10°C	≤±0.02	≤±0.017
Zero balance	%F.S	±1.0
Input resistance	Ω	760±10Ω
Output resistance	Ω	700±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP66/IP68
Load cell material		Alloy steel
Cable length	m	6
Cable outer caliber	mm	Φ5

Packaging & Delivery

PACKAGE:

DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
