4-20ma Weight Transmitter Sw01B
- shanghai
- T/T Money Gram Credit Card PayPal
You May Like
-
Alloy Steel Ball Head Components for Load Cell JX-1F
-
Alloy Steel Ball Head Components for Load Cell JX-2F
-
Steel Ball Head Components for XBB Load Cell Quality Choice
-
Adapting Piece for Shear Beam Weighing Xba,xbc Load Cell SP
-
Load Cell Current Board Sw322
-
Load Cell Pad for Electronic Platform Scale Load Cell
Product Details
| Place of Origin | Jiangsu, China | Brand Name | silvanus | |
| Model Number | SW01B | Power Supply | 24v |
Product Description

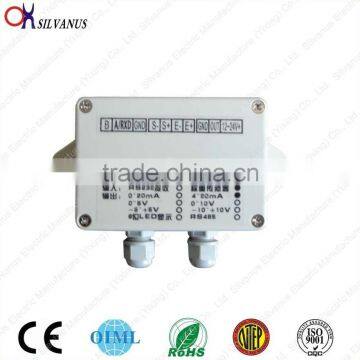

4-20ma weight transmitter sw01B
Full digital processing, multifunction weight transimitter, adapt SMT reflow soldering process to achieve the analog signal of weighing sensor, RS232 or RS485 digital signal transofrm into a standard analog signals and switch output, can be easily connected to the PLC and other industrial equipment support.
Specification:
1)12~24v power supply
Supply power 12v: drive 350Ω 4pcs Load cell ,750Ω 8pcs Load cell
Supply power 24v: drive 350Ω 1pcs Load cell ,750Ω 2pcs Load cell
2)Weight transform use 24 bit Σ-Δintegration ADC chip
3) full digital conversion, don’t have potentiometer and other simulate adjust parts
4) analog quantity output two keys adjust, only need one time to adjust zero point and full value
5)Over width zero.tare rang(0~8mv)
6)Over width full capacity signal rang(1~15mv)
special order ,max supply 400MV)
7) load:4~20mA, 0~20mA :≤550Ω;
0~5V, 0~10V: ≥10KΩ;
8)size:85×58×33mm;
9) operate by key, supply any weight calibrate
RS232 or RS485 support any point to calibrate
10) Voltage analog output , short circuit protection
Packaging & Delivery
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
Our Company:
Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
LETTER OF PATENT:
Transportation | Routine |
| By car | 3 hours from Shanghai to Yixing |
| By high speed railway | 2 hour from Shanghai(or Shanghai Hongqiao) railway station to YiXing railway station,then we will pick you up.It will take 10 mins by car from Yixing railway station to our company. |
Contact Us
- Silvanus Electric Manufacture (Yixing) Co., Ltd.
- Contact nameJacky Zhang Chat Now
- Phone86-510-87298977
- AddressChuanbu Village, Dingshu Town, Wuxi, Jiangsu
