Home > Products > Load Cell Accessories > crane overload limiter hoisting device (QCX)
crane overload limiter hoisting device (QCX)
- 1000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Silvanus | |
| Model Number | QCX | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

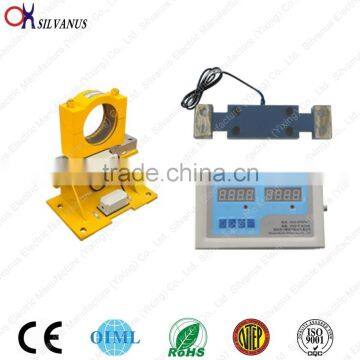

hoist load limiter
is applied to crane. It is a special safe protect device. it make up with load cell, wire rope ,indicator and connection box.
---.High-quality overload limiter
---Structure, convenient to install and maintenance
---Good ability for overload protect
main technical index
- application:0.5~63t
- sensitivity:±5%(F.S)
- error:±5%
- safe load limit:150%
- work environment:-10~60°C,90%RH
- mains voltage: ~380V±10% 50HZ
- relay contact capacity:380v 5A
- load cell protect class:IP65
- electric control box protection class:IP54
- set up warning point
1) warning forecast---90% of the rated load(red glint, buzzer warning sound intermittently. but don’t cut off power supply )
2) warning delay----105% of the rated load(delay 1~2 seconds red light, buzzer sound warning continuously. then cut off power supply)
3) warning immediately----130% of the rated load(red light, buzzer sound warning continuously .then cut off power supply at
once)
Contact Us
- Silvanus Electric Manufacture (Yixing) Co., Ltd.
- Contact nameJacky Zhang Chat Now
- Phone86-510-87298977
- AddressChuanbu Village, Dingshu Town, Wuxi, Jiangsu
