high temperature QSA load cell (QSA)(40t~50t)
- 10000 Piece / Pieces per Month
- SHANGHAI
- T/T
You May Like
-
High temperature sensor for weighing scales(XBA)(0.3~25t)
-
high temperature LoadCell for bench scale
-
electronic platform scale 2000kg
-
PUS stainless steel u type electronic weighing scale with computer interface
-
portable electronic Weigh beams platform scale
-
Wireless transmission and high-temperature thermal insulation digital hook weighing scale crane scale OCX-XS2H
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SILVANUS | |
| Model Number | QSA-H | Usage | Temperature Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

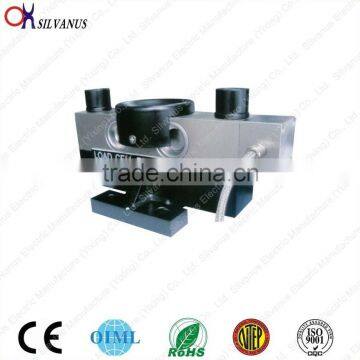

Double Ended Shear Beam Load Cell high temperature load cell (QSA)(40t~50t)
Load Cell(QSA) Features
1.Bridge type double shear beam, unique floating bearing structure
2.Self-resetting , good side force resistance and shock resistance
3.Moisture-proof sealed , ideal for hostile environment
4.Simple to install , easy to use , good interchangeability
Load Cell(QSA) Application
truck scales,rail scales,bin and hopper scales,etc.
Load Cell(QSA) Dimensions(mm)
Load Cell(QSA) Specifications
Emax(Max. capacity) | t | 40/50 | |
Sensitivity | mV/V | 2.0±0.002 | |
Accuracy class |
| C2 | C3 |
Maximum number of verification intervals | nmax | 2000 | 3000 |
Minimum load cell verification interval | Vmin | Emax/5000 | Emax/10000 |
Combined error | %F.S | ≤±0.030 | ≤±0.020 |
Creep | %F.S/30min | ≤±0.024 | ≤±0.016 |
Temperature effect on sensitivity | %F.S/10°C | ≤±0.017 | ≤±0.011 |
Temperature effect on zero | %F.S/10°C | ≤±0.023 | ≤±0.015 |
Zero balance | %F.S | ±1.0 | |
Input resistance | Ω | 750±10Ω | |
Output resistance | Ω | 703±5Ω | |
Service temperature range | °C | -30...+70 | |
Safe overload | %F.S | 150 | |
Ultimate overload | %F.S | 250 | |
Recommended excitation voltage | V | 5…15 | |
Insulation resistance | MΩ/50V | >5000 | |
Protection class |
| IP67;IP68 | |
Load cell material |
| Alloy steel | |
Cable length | m | 16 | |
Cable outer caliber | mm | Φ5 | |
Packaging & Delivery
Delivery Usually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.
