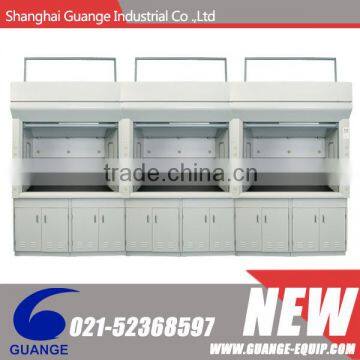

Laboratory chemical fume hood Model No.SHGG-T57118

a. General description

Standard :BS EN 14175

Width: 1200mm/1500mm/1800mm

Depth:800/900 mm

Heigh:2350 mm

Worktop Material: various according to customer’s requirement

Worktop Height:900mm from the ground

Cabinet Style: Floor stand style or mobile under cabinet

Sash : Clear toughened glass/safe glass ,can hover at any height

Light source: Fluorescent light

Electronic power source: Multifunctional socket

Cup sink: PP material

Cock: gas / water valve

Optional: Auto sash closer/ water supply system/VAV system.

b. The advantages

1)the gas and water valves are positioned on the external vertical side airfoils and outlet nozzles are located on the side wall of the internal chamber.

2)the sash run in concealed tracking designed to facilitate smooth operation and is counter balanced using stainless steel cables, lead balancing weight and a twin ball race pulley arrangement. In the event of suspension wire failure it is not be possible for the sash to drop.

3)the bell-shape exhaust collar, designed with rectangular air entrance and round-shape air outlet.

4)low aerofoil, located on the frontal edge of the worktop under the sash, providing smooth air passage and preventing turbulence.

c. certificate

The BS EN14175-3 Standard Includes:

Inner plane SF6 tracer gas containment test

Outer plane SF6 tracer gas containment test

ROBUSTNESS CONTAINMENT test

AIR EXCHANGE EFFICIENCY test, PRESSURE DROP test

SASH test

d.Extensive product line:

Standard fume hood

High performance fume hood

Distillation and walk in fume hood

HF acid fume hood

Perchloric acid water wash fume hood

Radio isotope fume hood

ADA fume hood

 PP sash handle,resisting chemical cossive

Sash rail with good design that make sure the sash frame won't be shaked left or right direction in moving process

Three baffles setted in low,middle and high position inside fume hood,clearing out the air which is with different density ,Baffles Material:wood or stainless steel

Under beneath cabinet ,adjustable shelves ,air make up holes

Multifunctional controlling panel :Power switch,Light switch,Fan switch

Cock reserved space

Select accessory for your fume hood

Select suitable PP Fan for your fume hood

Select suitable Air flow regulator for your fume hood

Select suitable PP sink for your fume hood

1.Middle size sink Model No. SHGG-5102

2.Oval Cup Sink Model No. SHGG-5201

3.Square Cup Sink Model No. SHGG-5202

4.Round Cup Model No. SHGG-Sink 5203

5.Oval Cup Sink Model No. SHGG-5204
