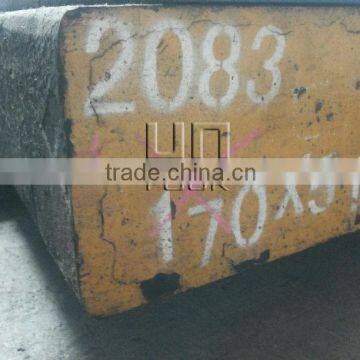

Stainless steel S136/1.2083/4Cr13/SUS420

FOB Price

USD $1,300 - $2,500 / Ton

10 Tons(Min.Order)

Port SHENZHEN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	AISI, DIN, GB, JIS, Other, AISI, DIN, GB, JIS, ASSAB	Grade	SUS420,1.2083,4Cr13,s136
Thickness	16mm~305mm	Place of Origin	Guangdong, China
Brand Name	Circle Four	Model Number	SUS420,1.2083,4Cr13,s136
Type	Steel Plate	Technique	Hot Rolled
Surface Treatment	Other, Black or machined	Application	Other, mould making
Special Use	High-strength Steel Plate	Width	205mm~810mm
Length	2000~5800mm

Product Description

Specifications

Stainless steel
1.Main application
For plastic moulds with high wear resistance and corrosion resistance repuirements

Quick Details

Standard:	AISI,DIN,GB,JIS	Grade:	1.2083/S136/4Cr13/SUS420	Thickness:	16-305mm
Place of Origin:	China (Mainland)	Brand Name:	Circle Four	Model Number:	Plastic mould steel
Type:	Steel Plate	Technique:	Hot Rolled	Surface Treatment:	Black or machined
Application:	Mould making	Special Use:	High-strength Steel Plate	Width:	205-810mm
Length:	2000-5800mm

Packaging & Delivery

Packaging Detail:	Raw packing or customer require
Delivery Detail:	3-7days

Specifications

Stainless steel SUS440/1.2083/S136
Large stock with good price
1.Diameter:16-300mm
2.Thickness:16-400mm
3.Length:2000-5800mm

Detailed Product Description

Stainless steel SUS440/1.2083/S136

1. Steel Grade:

ASSAB

AISI

DIN

JIS

4Cr13

S136

420

X40Cr14

(1.2083)

SUS420

2.Reference Size:

Round	Diameter	Length
	16mm-300mm	2000mm-5800mm
Steel plate	Thickness	Width	Length
	16-305mm	205-810mm	2000mm-5800mm

Or as per customer's requested cutting or sawing.

3.Delivery condition:

Hot rolled or forged ,black surface or milled surface,pre-hardened to 30-36.HRC or annealed ≤ 229HB. EAF or ESR.
100% UT test

4.Chemical composition:

C%	Mn%	Si%	Cr%	Mo%	P%	S%	Ni%
0.3-0.4	0.3-0.6	0.3-0.6	13-15	0.5-0.7	≤0.03	≤0.03	0.3-0.55

5.Applications :

Mould steel use for Injection die, extrusion die, blowing die etc. Application to hot-plastic forming have good nitridting performance; Nitriding treatment can significantly the die performance; They also are often used in important mechanical parts.

6.Characteristics
Smelted by using vacuum degassing method, so that the steel quality is more purified.
Has superior mirror polishing property.
Good etching workability and EDM spark workability.
Delivered in pre-hardened state; Allowable for direct mold cutting without further heat treatment.
Distress annealing and surface nitriding treatment, with very slight change in size and hardness
