Home > Products > UV/Xenon test chamber > Better Safety Feature UV Test Equipments
Better Safety Feature UV Test Equipments
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ASLI | |
| Model Number | UV-230 | Power | Other, Electronic, AC220V 1&3 lines, 50HZ | |
| Usage | Other, UV climate ageing tests, UV climate ageing tests |
Product Description
Specifications
UV test equipments1.Simulate sun spectrum
2.Operation easy
3.OEM service
4, Fast Delivery

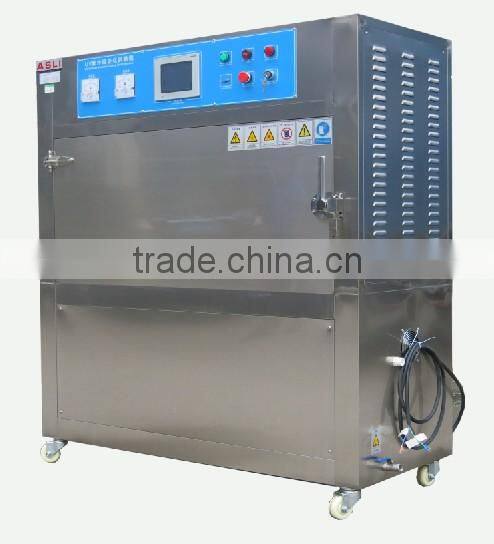

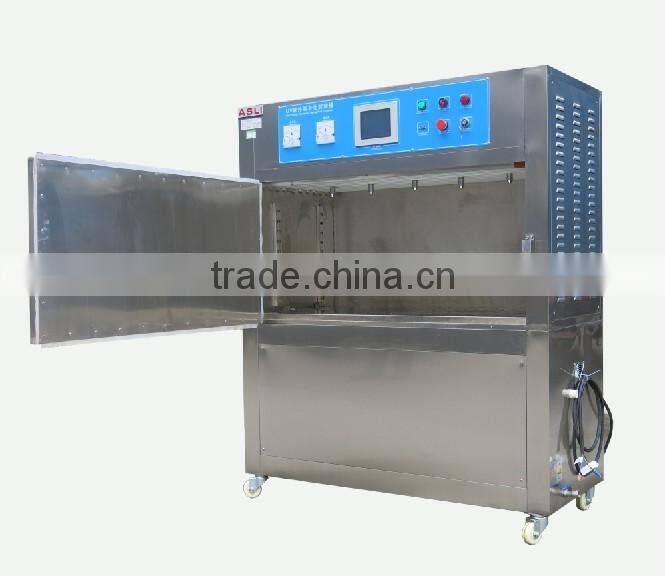

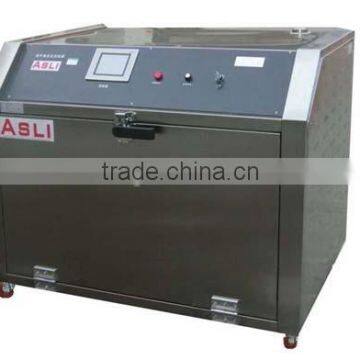

Better safety feature UV test equipments
UV test equipments
1.Simulate sun spectrum
2.Operation easy
3.OEM service
4, Fast Delivery
UV test equipments specific sheet:
| Model | UV-230 | |
| Internal Dimension WxHxD (mm) | 1150x500x400 | |
| External Dimension WxHxD (mm) | 1500x1500x550 | |
| ApplicableStandard | GB/T16422,GB/T5170.9 | |
| TemperatureRange | R.T.+10℃~+70℃ | |
| Temperature Fluctuation | ±0.5℃ | |
| HumidityRange | ≥95%R.H. | |
| Environmental Temperature for Use | +5℃~+35℃ | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) | 280~400 | |
| Center Distance between Sample and Tube (mm) | 50±2 | |
| Center Distance Between Tubes (mm) | 75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating the Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, touch the ground protection | |
| Power | AC220V 1&3 lines, 50HZ | |
Application:
UV climate resistant ageing tests machine is the world's most widely used weathering tester to test types of damages include color change, gloss loss, chalking, cracking, crazing, hazing, blistering, strength loss and oxidation. This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.
Features:
The damage of material durability is mainly caused by the sun's ultraviolet ray. We use UV lamps to simulate sunlight in the ultraviolet part of the short-wave, it produces very little visible or infrared spectral energy. We can choose according to different testing requirements of different wavelengths of UV ultraviolet light, because each lamp in the total energy and wavelength of UV radiation are not the same. Usually, UV lamp can be divided into two kinds of UVA and UVB.
Our other products:
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc
Our Service:
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
About our company:
Established in 1988, ASLi (China) Test Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Programmable constant Temperature & Humidity Test Chamber, High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, aging tester, drying oven, xenon lights resistant to climate testing machine, UV resistant to climate testing machine, ozone aging test machine, sand and dust testing machine, tension tester, high and low temperature testing machine , servo carton compression tester, mechanical vibration tester and other quality testing instruments. Thanks to several decades of R&D efforts, the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
Pictures of our Company:
Welcome to contact with us:
Contact Us
- Dongguan ASLi Test Instrument Co., Ltd.
- Contact nameRachel Lee Chat Now
- Phone0086-769-23164266
- AddressJinHui Industrial Park, LiXin town,East City district, Dongguan, Guangdong
