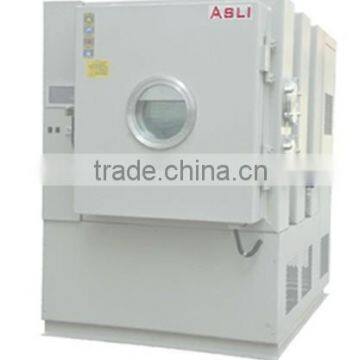

Combined Temperature High Altitude Chamber

Model

HLP-408(D~F)

HLP-1000(D~F)

Internal Dimensions WxHxD (mm)

600x850x800

1000x1000x1000

External Dimensions WxHxD (mm)

1400x1900x1900

1600x2050x2350

Pressure Range

Atmospheric pressure(101 Kpa)~0.5 Kpa

Pressure Deviation

Pressure 50 Kpa ~10 Kpa, ±3 Kpa;   pressure 10 Kpa ~50 Kpa, ±1.0 Kpa;  pressure  1 Kpa ~10 Kpa, ±0.1 Kpa

velocity of Depressurization

Atmospheric pressure ~1kpa≤40min (Room temperature situation);

Low Air Pressure Mode

Vacuum pump

Temperature Range

Low Temperature( D:-40ºC    F:-70ºC)

High Temperature 150ºC

Analytic Accuracy of Temperature

0.1 ºC

Distribution Uniformity of Temperature

When temperature≤100ºC, ±3.0ºC (Atmospheric pressure and no load),

When temperature>100ºC, ±5.0ºC (Atmospheric pressure and no load)

Control Accuracy of Temperature

±0.5ºC

Temperature Rising / Falling Speed Rate

Temperature rising approx.  0.2~1.2ºC/min / temperature falling approx.  0.2~1.2ºC/min;

Internal and External Material

Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.

Insulation Material

Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials

Cooling System

Wind cooling or water cooling / single segment compressor (-40ºC, double segment compressor -70ºC)

Protection Devices

Fuse-free switch, overloading protection switch for compressor,fault warning system, high and low voltage coolant protection switch,over-temperature protection switch, fuses

Compressor

French Tecumseh Brand, Germany Bizer Brand

Power

AC 380 V,3ø 5 Lines,50/60HZ
