Product Details
| Place of Origin | Guangdong, China | Brand Name | Dahua | |
| Model Number | HCVR7804/7808/7816S | Type | Analog Camera | |
| Style | Other, dvr | Sensor | CMOS | |
| Technology | NetWork | Special Features | Waterproof / Weatherproof |
Product Description

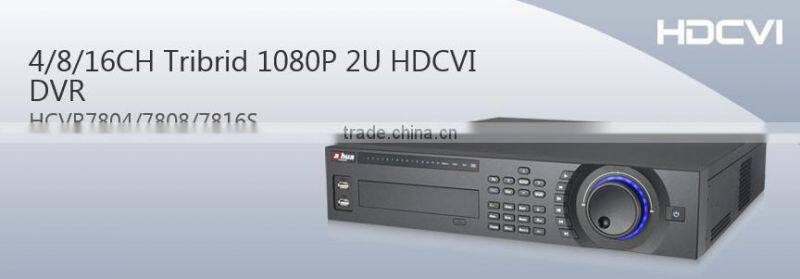

dahua dvr,hd dvr 1080P realtime recording,2u 8hdd 8 SATA ports dvr
To Know,To Trust,your reliable security partner!
Skype:nickyzhou688668
Email:nicky(at)
Whatsapp:0086 131 4599 7168
Best service for you~
DH-HCVR7804S
Features

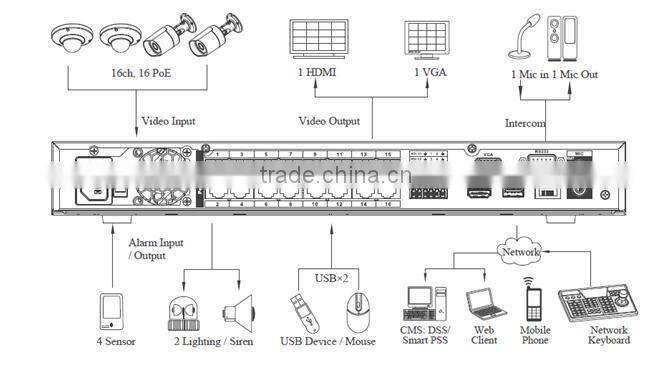

>Tribrid: Each channel supports HDCVI/Analog/IP Video input
> 1HDMI/VGA/TV simultaneous video output,1 HDMI separate output
> HCVR7804/7808/7816S:All channel 1080P realtime recording
> H.264 dual-stream video compression
> 4/8 channel synchronous realtime playback, GRID interface & smart search
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
> ONVIF Version 2.4 conformance
> 3D intelligent positioning with Dahua PTZ camera
> Support 8 SATA HDDs up to 32TB, 1 eSATA, 4 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Specifications
| Model | DH-HCVR7804S | DH-HCVR7808S | DH-HCVR7816S | ||
| System | |||||
| Main Processor | Embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Video | |||||
| Input | 4 channel | 8 channel | 16 channel | ||
| Video Standard | HDCVI | 1080P/720P HDCVI Camera | |||
| Analog | NTSC/PAL | ||||
| IP | All channels support 1080P/720P IP Camera | ||||
| Audio | |||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | ||
| Output | 1 channel, BNC | ||||
| Two-way Talk | 1 channel input,1channel output, BNC | ||||
| Display | |||||
| Interface | 2 HDMI, 1 VGA, 1 TV | ||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 | ||
| Privacy Masking | 4 rectangular zones (each camera) | ||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Video/Audio Compression | H.264/G.711 | ||||
| Record Rate | Main stream | 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) | |||
| Extra stream | CIF/QCIF(1~25/30fps) | ||||
| Bit Rate | 48~6144Kb/s | ||||
| Recording Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||||
| Recording Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||
| Video Detection & Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||||
| Motion Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Alarm Input | 4 channel | 8 channel | 16 channel | ||
| Relay Output | 6 channel | ||||
| Playback & Backup | |||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | ||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||
| Backup Mode | USB Device/eSATA Device/Internal SATA burner/Network | ||||
| Network | |||||
| Ethernet | 2RJ-45 port (10/100M/1000M) | ||||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, SNMP, P2P | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||||
| Storage | |||||
| Internal HDD | 8 SATA ports(8HDDs or 6HDDs+1CD/DVD-RW), up to 32TB | ||||
| External HDD | 1 eSATA port | ||||
| Auxiliary Interface | |||||
| USB | 4 ports(2 Rear), USB2.0 | ||||
| RS232 | 1 port, For PC communication & Keyboard | ||||
| RS485 | 1 port RS485 for PTZ control | ||||
| General | |||||
| Power Supply | AC 100~240 V, 50/60 Hz | ||||
| Power Consumption | 40W(without HDD) | ||||
| Working Environment | -10°C~+55°C/10%~90%RH/86~106kpa | ||||
| Dimension(W×D×H) | 2U, 440mm×460mm×89mm | ||||
| Weight | 6.5KG(without HDD) | ||||
