Home > Products > HDCVI DVR > Dahua HD CVI DVR Analog Dome/Bullet Camera Cctv Dvr

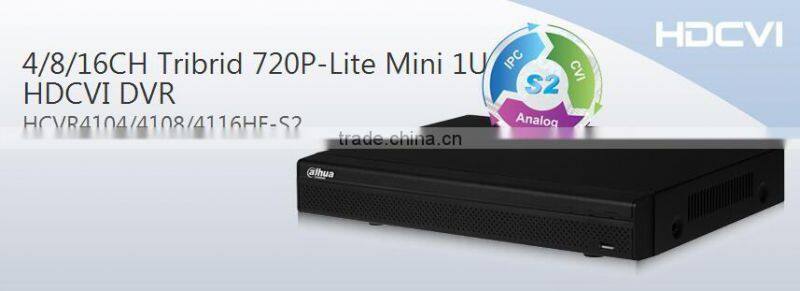

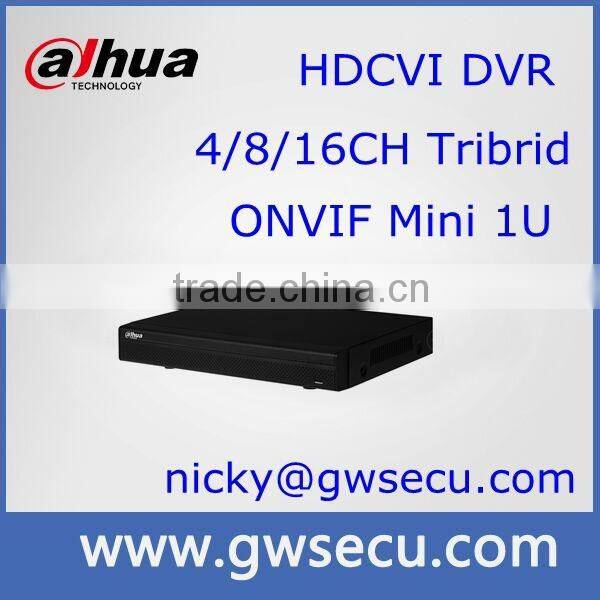

Dahua HD CVI DVR Analog Dome/Bullet Camera Cctv Dvr

FOB Price

US$ 1 - 80 / Piece

1 Piece(Min. Order)

Port SHENZHEN
Payment TermsT/T L/C Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Dahua
Model Number	HCVR4104HE-S2	Type	Analog Camera
Style	Other, dvr	Sensor	Other, Embedded processor
Technology	Infrared	Special Features	Waterproof / Weatherproof

Product Description

Dahua HD CVI DVR Analog Dome/Bullet Camera cctv dvr

To Know,To Trust,your reliable security partner!

Skype:nickyzhou688668

Email:nicky(at)

Whatsapp:0086 131 4599 7168

Best service for you~

HCVR4104/4108/4116HE-S2

Features

>Support HDCVI/Analog/IP Video input
>H.264 dual-stream video compression
>HCVR4104/4108/4116HE-S2: All channel 720P recording
>HDMI/VGA simultaneous video output
>4/8/16 channel synchronous playback, GRID interface & smart search
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.4 conformance
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>3D intelligent positioning with Dahua PTZ dome camera
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Specifications:

Model			DH-HCVR4104HE-S2	DH-HCVR4108HE-S2		DH-HCVR4116HE-S2
System
Main Processor			Embedded processor
Operating System			Embedded LINUX
Video
Input			4 channel, BNC	8 channel, BNC		16 channel, BNC
Standard	Analog		NTSC/PAL
	HDCVI		720P HDCVI Camera
	IP		Support 2ch 1080P/720P IP Camera
Audio
Input			4 channel, RCA
Output			1 channel, RCA
Two-way Talk			Reuse audio input/output channel 1
Display
Interface			1 HDMI, 1 VGA
Resolution			1920×1080, 1280×1024, 1280×720, 1024×768
Display Split			1/4	1/4/8/9		1/4/8/9/16
Privacy Masking			4 rectangular zones (each camera)
OSD			Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression			H.264/G.711
Record Rate		Main Stream:	720P/960H/D1(1~25/30fps)	1720P(1~25/30fps)+7(1~15fps)/960H/D1 (1~25/30fps)		1720P(1~25/30fps)+15(1~15fps)/960H/D1 (1~25/30fps)
Bit Rate			96~4096Kb/s
Record Mode			Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval			1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events			Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection			Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input			4 channel	8 channel		16 channel
Relay Output			3 channel
Playback & Backup
Sync Playback			1/4	1/4/9		1/4/9/16
Search Mode			Time/Date, MD & Exact search (accurate to second)
Playback Functions			Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode			USB Device/Internal SATA burner/Network
Network
Ethernet			RJ-45 port (10/100M)
Network Functions			HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access			128 users
Smart Phone			iPhone, iPad, Android, Windows Phone
Storage
Internal HDD			1 SATA port, up to 4TB
Auxiliary Interface
USB Interface			2 ports(1 Rear), USB2.0
RS485			1 port, For PTZ Control
General
Power Supply			DC12V/1.5A		DC12V/2A
Power Consumption			10W(without HDD)
Working Environment			-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension(W×D×H)			Mini 1U, 325mm×255mm×55mm
Weight			1.5KG(without HDD)

dahua

Software:

Showroom:

Welcome to visit our company

1. Our Factory detail:

A. Raw Materials

Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...

B. Assembling

we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.

C. Aging Products

24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.

D. OEM&ODM

Customer LOGO can be printed on goods/color box/labels upon confirmed.

E. Quality Test

Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.

3. Exhibitions:

We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …

FAQ:

1. Payment

What are the terms of payments you offer?

We accept payment via T/T, Paypal, West union etc

2. Shipment

(1)How long will it takes to deliver goods?

We will deliver your goods within 7-10 working days after an order confirmed

(2)What kind of packaging you offer?

We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.

(3)What kind of transportation methods you offer?

A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.

B. We also can deliver your goods by air and sea as your request.

3. Our Services

Warranty: We cover 2 Year warranty for all our products since shipment day.

For all your inquiries about our products, we will reply you in detail within 24 hours.
