Dahua Security Video Recorder h 264 Cctv Ahd Dvr Motorized Lens Cctv Camera

FOB Price

US$ 1 - 100 / Piece

1 Piece(Min. Order)

Port SHENZHEN
Payment TermsT/T L/C Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Dahua
Model Number	DH-HAC-HFW2221RP-Z-IRE6 -0722	Type	Analog Camera
Style	Bullet Camera	Sensor	CMOS
Technology	Infrared	Special Features	Waterproof / Weatherproof

Product Description

Dahua security video recorder h 264 cctv ahd dvr motorized lens cctv camera

To Know,To Trust,your reliable security partner!

Skype:nickyzhou688668

Email:nicky(at)

Whatsapp:0086 131 4599 7168

Best service for you~

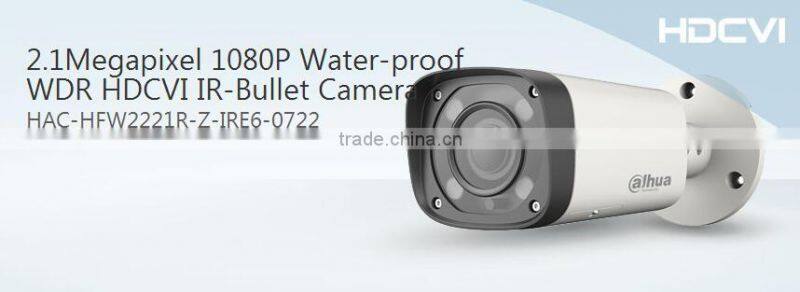

DH-HAC-HFW2221RP-Z-IRE6-0722

Features

>1/2.7" 2.1Megapixel CMOS
>25/30fps@1080P,25/30/50/60fps@720P
>High speed, long distance real-time transmission
>HD and SD dual-output
>OSD Menu, control over coaxial cable
>WDR(120dB), Day/Night(ICR), AWB, AGC, BLC, 3DNR
>7~22mm motorized lens
>Max. IR LEDs length 60m, Smart IR
> IP67, DC12V

Specifications:

Model	DH-HAC-HFW2221RP-Z-IRE6 -0722	DH-HAC-HFW2221RN-Z-IRE6 -0722
Camera
Image Sensor	1/2.7” 2.1Megapixel CMOS
Effective Pixels	1928(H)×1088(V)
Electronic Shutter	1.3s~1/30,000s	1s~1/30,000s
Video Frame Rate	25/30/50/60fps@720P; 25/30fps@1080P
Synchronization	Internal
Mini. Illumination	0.03Lux/F1.4, 0Lux IR on
Video Output	1-channel BNC HDCVI high definition video output & CVBS standard definition video output
Camera Features
Max. IR LEDs Length	60m, Smart IR
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	120dB True WDR
Noise Reduction	2D/3D
OSD Menu	Multi-language
Lens
Focal Length	7~22mm
Angle of View	H: 41º~18º
Lens Type	Motorized / Fixed Iris
Mount Type	Φ14
General
Power Supply	DC12V±25%
Power Consumption	Max 8.2W
Working Environment	-30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Ingress Protection	IP67
Dimensions(W×D×H)	213mm×80mm×72mm
Weight	0.55kg
Material	Metal

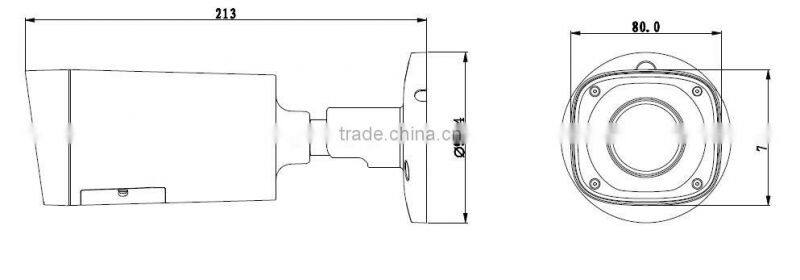

Dimension:

dahua

Software:

Showroom:

Welcome to visit our company

1. Our Factory detail:

A. Raw Materials

Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset and lens, we source from Sony, Ti and Aptina...

B. Assembling

we have a perfect management system in conformity with 6S methodology in manufacturing management to ensure that factory is really safe and clean.

C. Aging Products

24 hours aging testing precedure avoid defects, and make sure excellent performance of our products.

D. OEM&ODM

Customer LOGO can be printed on goods/color box/labels upon confirmed.

E. Quality Test

Company invests abundant capital in advanced testing equipments to ensure products quality. Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test, Salt spray test, etc.

3. Exhibitions:

We participate various of exhibitions every year, you can find us at CPSE in China, ISC in America, IFSEC
in Britain, INTERSEC in Dubai, SST in Russia, SECUREX in South Africa, …

FAQ:

1. Payment

What are the terms of payments you offer?

We accept payment via T/T, Paypal, West union etc

2. Shipment

(1)How long will it takes to deliver goods?

We will deliver your goods within 7-10 working days after an order confirmed

(2)What kind of packaging you offer?

We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.

(3)What kind of transportation methods you offer?

A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.

B. We also can deliver your goods by air and sea as your request.

3. Our Services

Warranty: We cover 2 Year warranty for all our products since shipment day.

For all your inquiries about our products, we will reply you in detail within 24 hours.
