PPGI Steel Coil/Sheet
US$ 700 - 1,100
/ Metric Ton
20 Metric Tons(Min. Order)
- Xingang port Tianjin China
- T/T
You May Like
Product Details
| Standard | ASTM, BS, DIN, GB, JIS | Steel Grade | Other, DX51D+Z,SGCC,TST01 etc. | |
| Thickness | 0.18-1.2mm | Place of Origin | Tianjin, China | |
| Technique | Cold Rolled | Surface Treatment | Color Coated | |
| Application | metal roof etc. | Brand Name | HYD | |
| Width | 1000mm,1200mm,1250mm or customized |
Product Description
Specifications
PPGI Steel Coil/Sheet1.thickness:0.18-1.2mm
2.width:600-1250mm
3.material:DX51D+Z,SGCC,etc.
4.base:cold rolled GI coil
Quality | Q/BQB 440-2003 | JIS G3312-1994 | EN 10326-2004 | ASTM A653-02a |
| EN 10327-2004 | (BASE PLATE) | |||
| (BASE PLATE) | ||||
| Commercial Steel | TDC51D | CGCC | DX51D+Z/AZ | CS Type A/B/C |
| Forming Steel | (TSt01,TSt02,TSt03) | CGCD1 | FS Type A, Type B | |
| Drawing | TDC52D /TDC53D | - | DX52D+Z/AZ | DDS TYPE A/C |
| Steel | DX53D+Z/AZ | |||
| Structural | TS280GD(TStE28) | CGC400 | S280D+Z/AZ | SS275 |
| Steel | TS350GD(TStE34) | CGC440 | S350D+Z/AZ | SS340 Class1 |
2) OUR SPECIFICATION OF (Prepainted galvanized steel coils) printed PPGI coils
Available Size:
| Manufacturer | Thickness | Width | Length of plate | Inner diameter of coil |
| Tianjin Haiyunda Metal Material Co.,Ltd. | 0.18-1.2mm | 800/914/1000/1200/1219/1250mm | 1000-6000mm | 508mm/610mm |
Coated Mass OF (Prepainted galvanized steel coils) printed PPGI coils:
| Base plate | Available Coated Mass(g/m^2) |
| Galvanized Steel | 80, 100, 120, 160, 180 |
| Galvalume Steel | 50, 70, 150 |
Available Painting OF (Prepainted galvanized steel coils) printed PPGI coils:
| Category of Painting | Item | Code | |
| Polyester | PE | ||
| High-durability polyester | HDP | ||
| Silicon modified polyesters | SMP | ||
| Polyvinylidene fluoride | PVDF | ||
| Easy-Cleaning | — | ||
| Painting Thickness | Top side: 20+5microns; | ||
| Bottom side: 5~7microns. | |||
| Color System | Produce according to RAL Color System or as per buyer’s color sample. | ||

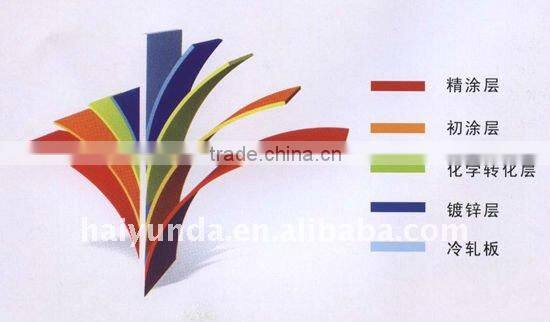

| Painting structure | Top surface | Bottom surface | |
| Primer coating | No coating | 1/0 | |
| Primer coating | Primer coating | 1/1 | |
| Primer coating + Finish coating | No coating | 2/0 | |
| Primer coating + Finish coating | Primer coating or single back coating | 2/1 | |
| Primer coating + Finish coating | Primer coating + Finish back coating | 2/2 | |
Note: Protect film available

3) APPLICATION OF OUR (Prepainted galvanized steel coils) printed PPGI coils

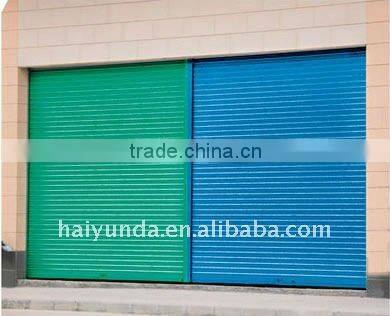

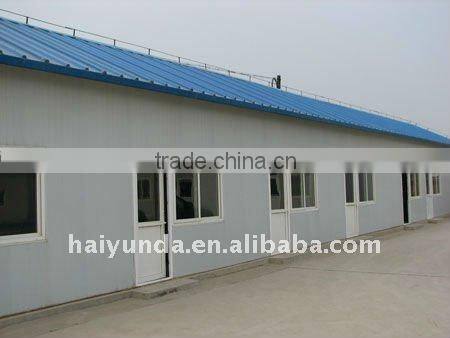

| Construction | Outside | Workshop, agricultural warehouse, residential precast unit, corrugated roof, roller shutter door, rainwater drainage pipe, retailer booth |
| Inside | Door, doorcase, light steel roof structure, folding screen, elevator, stairway, vent gutter | |
| Electrical appliance | Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker | |
| Furniture | Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf | |
| Carrying trade | Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board | |
| Others | Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment | |

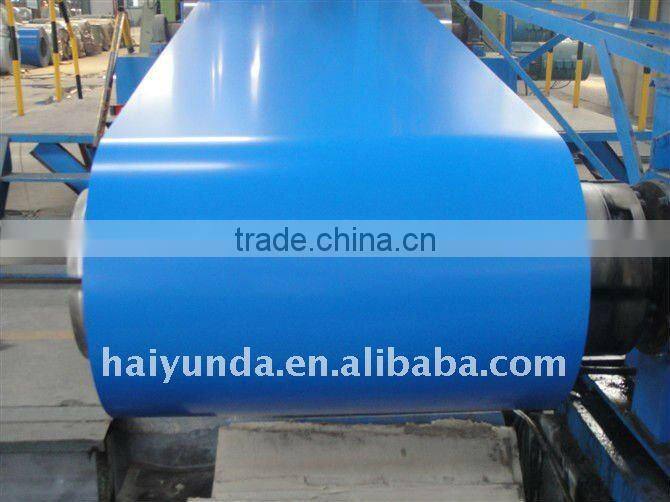

PREPAINT GALVANIZED COIL/SHEET

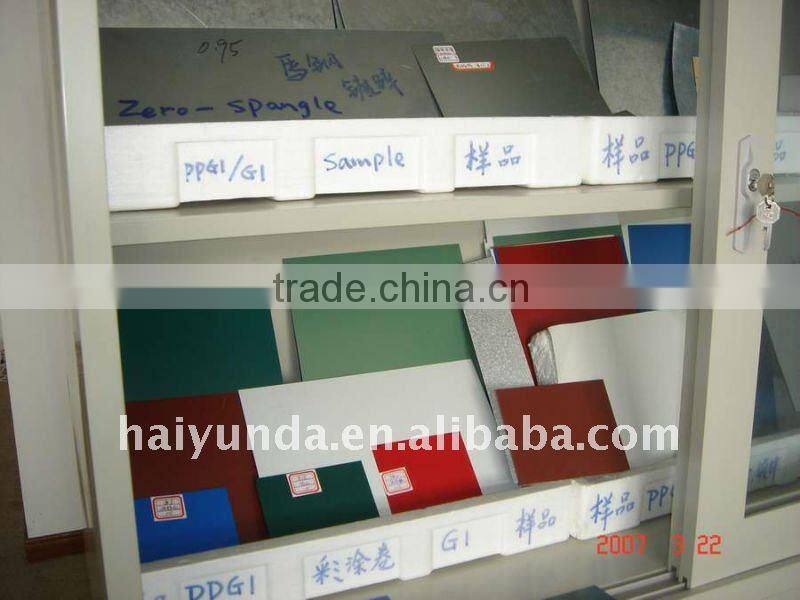

SAMPLE PIECE

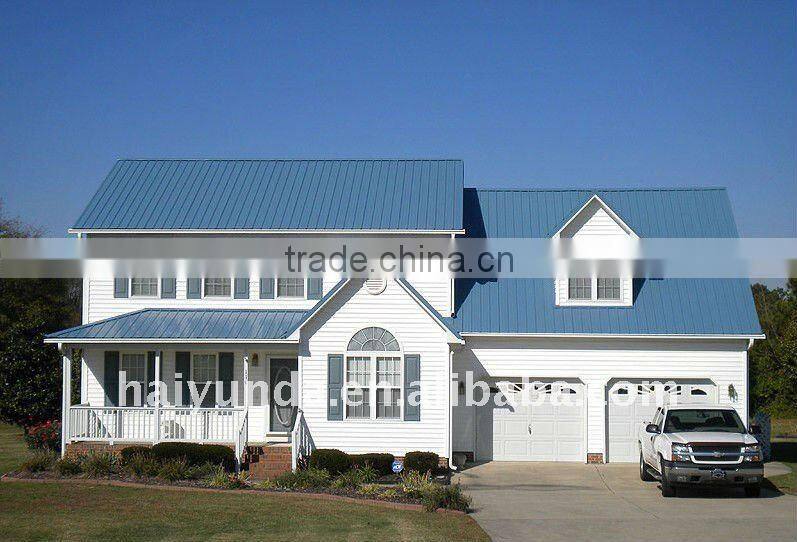

APPLICATION
