Home > Products > scaffolding system > Scaffolding Steel Plank Walk Board 420 * 45 * 1829mm

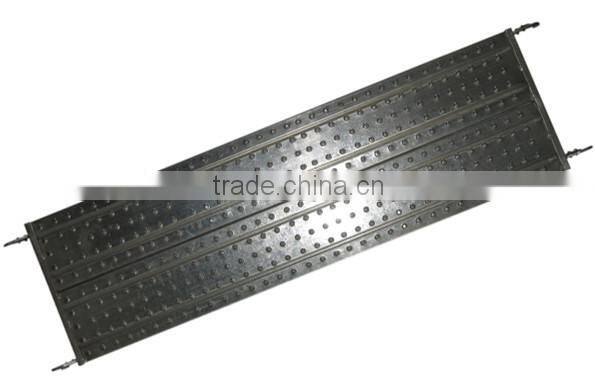

Scaffolding Steel Plank Walk Board 420 * 45 * 1829mm
- Tianjin China
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | JD | |
| Model Number | JD-RS34 |
Product Description
Cangzhou JinDi Hardware Products Co., Ltd has over 20 years of experience in the production of mental stamping parts.
Our Scaffolding system, Formwork system and Adjustable steel shoring prop system are all manufactured in accordance with the atandard of BS1139 and EN-74.
90% of our products are exported to overseas markets, mainly including Europe, America, South Asia, the Middle East and other areas.

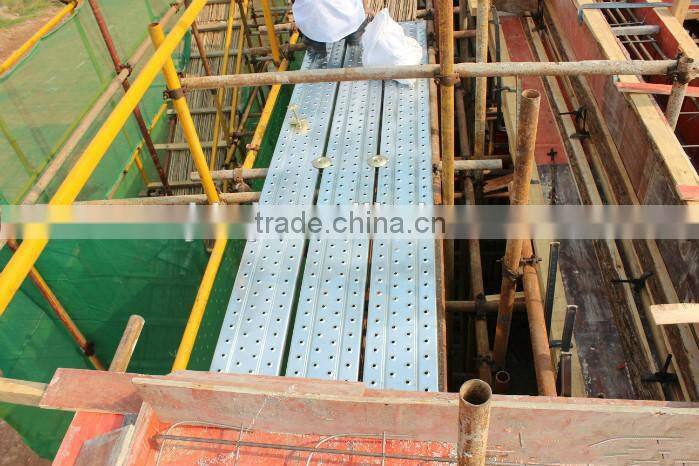

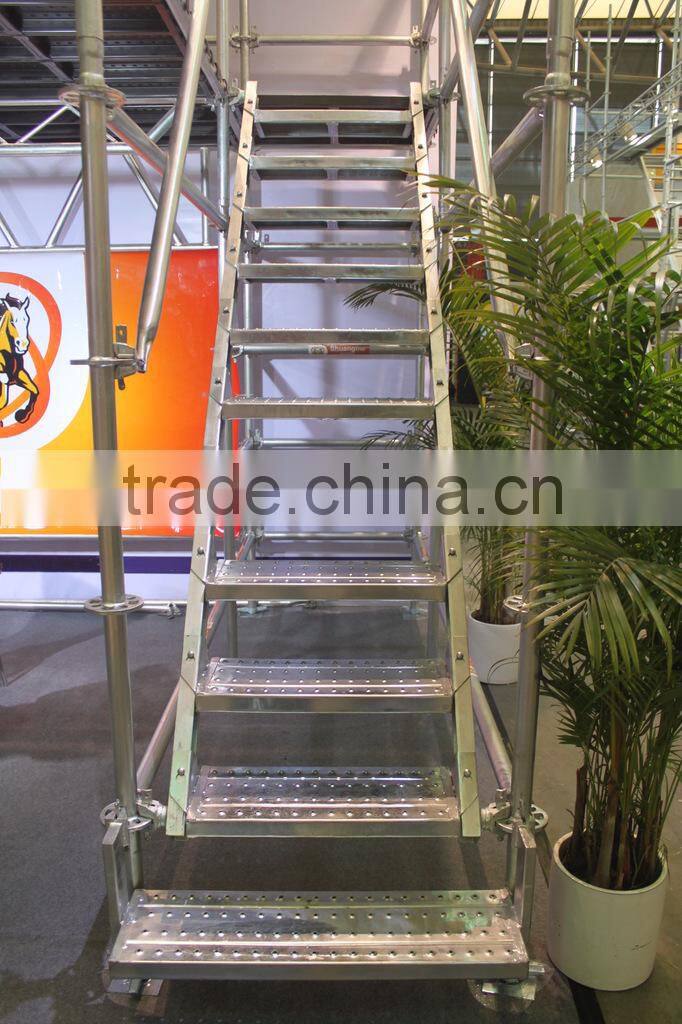

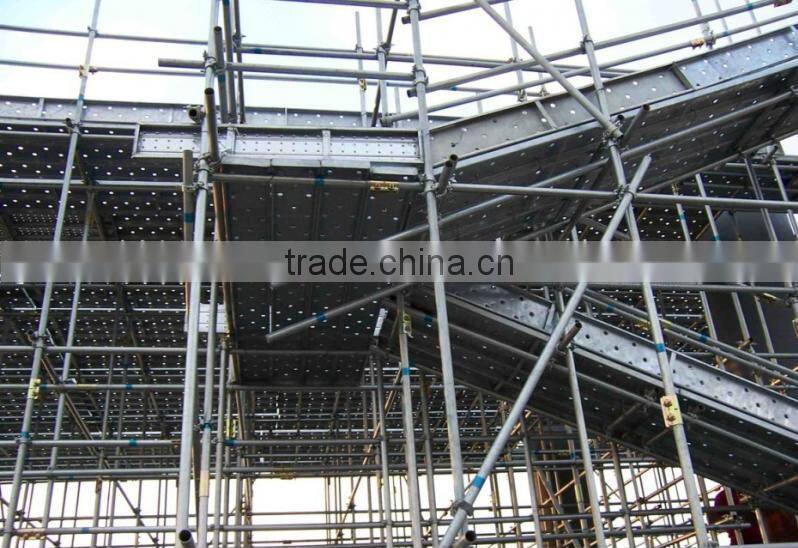

Galvanized steel board is widely used with scaffolding system in shipbuilding, repairing yard and building construction enterprises.
The latest international design scheme:
Reinforcement design, strengthen bearing capacity
500 mm in the brace spacing, effectively promote the springboard resistance to deformation ability from the Angle of mechanics Three strengthen supporting design, stronger support. 3 m will carry 600 kg weight,
Product Advantages

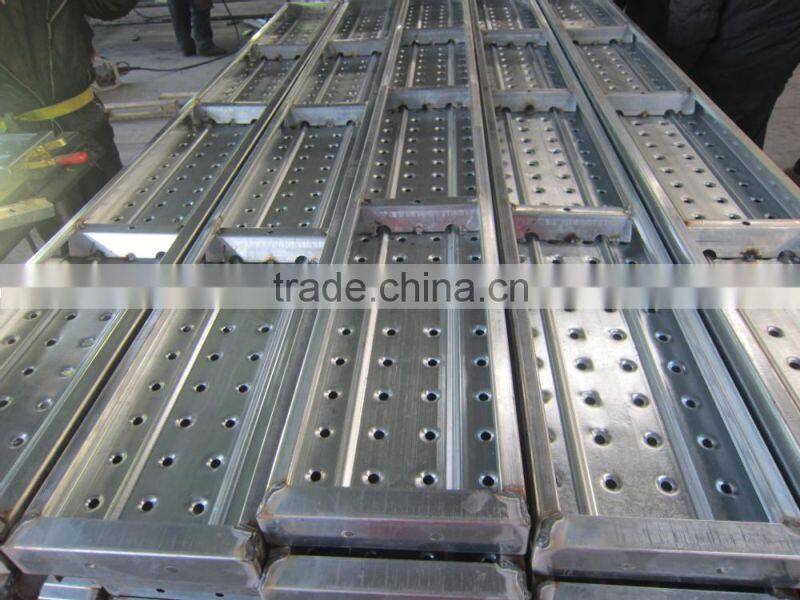

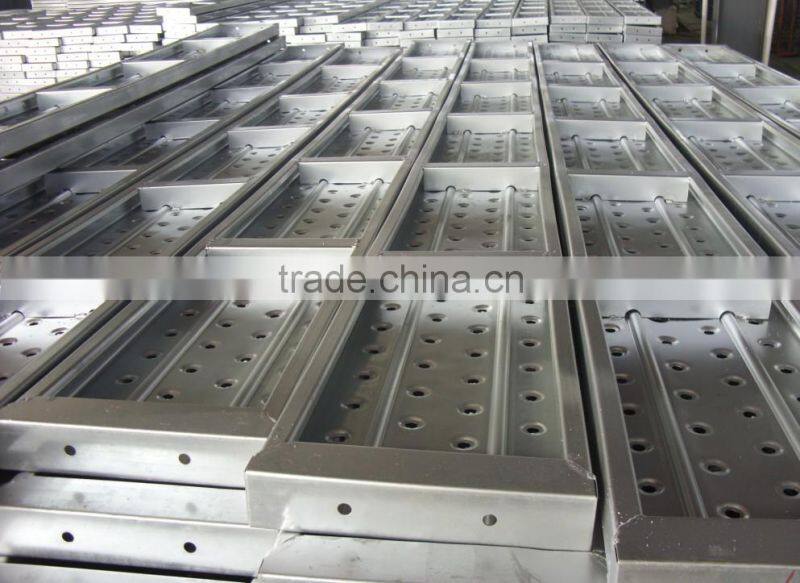

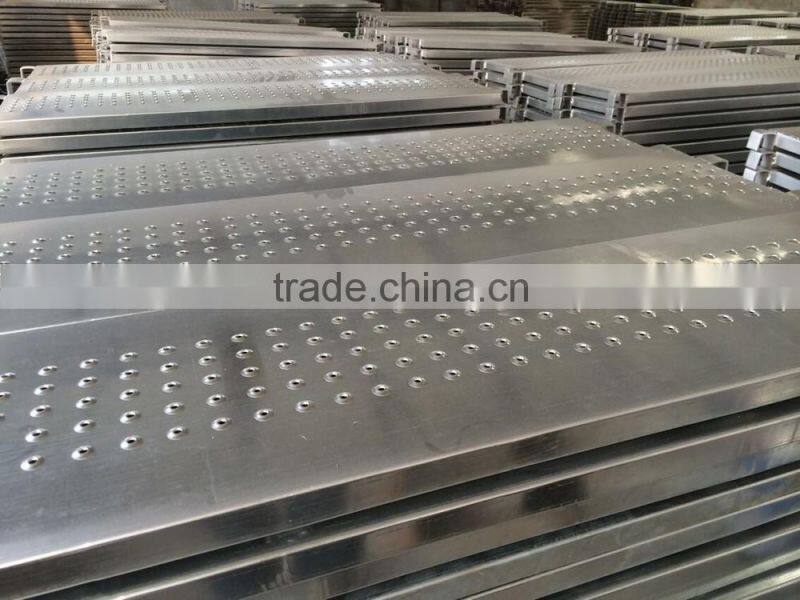

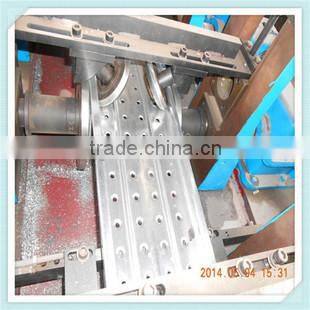

1.Punching design realizes the weight lose, water drainage, superfine non-slip performance.
2.Simple installation and strong smooth and steady during usage.
3.Suitable for any weather conditions, strong and durable.

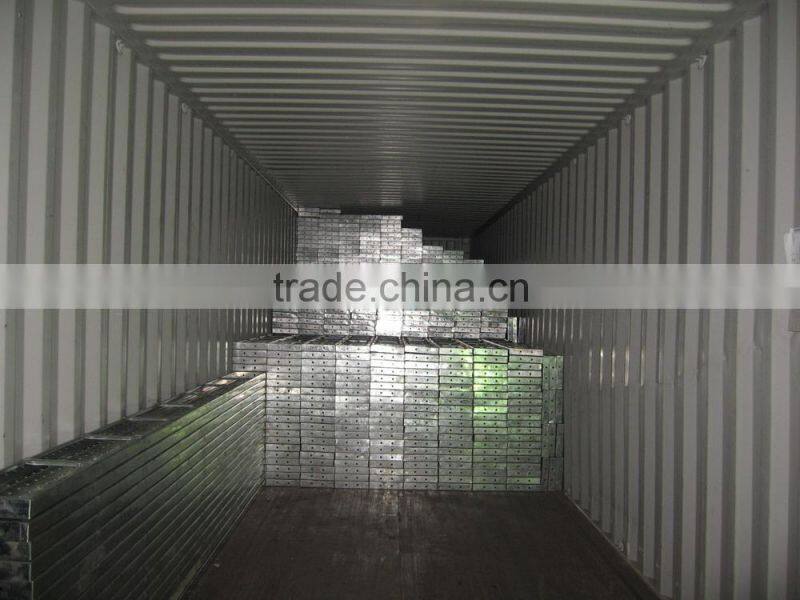

4.Convenient for transportation movement and warehousing
5.Long service life with hot dip galvanized surface, average of six to eight years
6.Beautiful appearance, high fire resistance and corrosion resistance
7.Low annual investment cost but high return

specification parameter
| Steel Walking Plank | |||
| Material | Q195 Q235 Q345 | ||
| Length | 1m 2m 3m 4m 5m | ||
| Width | 210/225/240/250/420/480/500mm | ||
| Height | 38/40/45/50mm | ||
| Thickness | 1.0mm-2.0mm(1.2/1.5) | ||
| Weight | 6kg-12kg | ||
| Uniform load | ≥7N/m2 | ||
| Best span | 1.2m-1.5m | ||
| Service life | 6-8 years | ||
| Normal size:width*height*length | ||||
| 210*45*1000mm | 225*38*1000mm | 240*45*1000mm | 250*50*1000mm | 420*45*1829mm |
| 210*45*1500mm | 225*38*1500mm | 240*45*1500mm | 250*50*1500mm | 450*45*1829mm |
| 210*45*2000mm | 225*38*2000mm | 240*45*2000mm | 250*50*2000mm | 480*45*1829mm |
| 210*45*2500mm | 225*38*2500mm | 240*45*2500mm | 250*50*2500mm | 500*50*1829mm |
| 210*45*3000mm | 225*38*3000mm | 240*45*3000mm | 250*50*3000mm | |
| 210*45*4000mm | 225*38*4000mm | 240*45*4000mm | 250*50*4000mm | |
| Thickness:1.0mm 1.2mm 1.5mm 1.8mm 2.0mm and others Weight:4kg-20kg  | ||||
| Reference weight | |
| Width*Height*Thickness*Length | Weight/pc |
| 210*45*1.2*4000mm | 14.32kg |
| 210*45*1.2*3000mm | 10.74kg |
| 210*45*1.2*2000mm | 7.16kg |
| 210*45*1.2*1000mm | 3.59kg |
| 240*45*1.2*4000mm | 15.7kg |
| 240*45*1.2*3000mm | 11.85kg |
| 240*45*1.2*2000mm | 7.85kg |
| 240*45*1.2*1000mm | 3.93kg |
| 250*50*1.2*4000mm | 17.01kg |
| 250*50*1.2*3000mm | 12.81kg |
| 250*50*1.2*2000mm | 8.53kg |
| 250*50*1.2*1000mm | 4.76kg |
Widely applied in: Temporary and permanent airlines, railroads construction. Building, bridge ,house construction and decoration, Shipyard, plant manufacturing, Bulk warehouse etc.


1. Best price could be offered within 24Hours after fully receipt of your sizes, material, quantity, as well as packing information.
2.Well-trained & experienced staff are to be of your service.
3.Your business relationship with us will be confidential to any third party.
4.Good after-sale service offered, please get back if you got question.
If you have a new product drawing or a sample, please send to us, and we can custom-made the hardware as your required. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
Any questions and requirements please contact me through Alibaba or directly talk to me.
