Home > Products > Plasma machine----metal cutting (normal type) > Plasma metal cutting machine G1313 100A China brand power supply
Plasma metal cutting machine G1313 100A China brand power supply
Negotiable
/ Set
1 Set(Min. Order)
- qingdao
- T/T Credit Card
You May Like
-
Plasma cutting machine G1313 100A China brand power supply
-
metal automatic cutting plasma machine G1313
-
plasma machine for steel aluminum stainless cutting with CE CERTIFICATE G1313
-
1300*1300mm plasma cutting cnc machine with 100A powe supply G1313
-
100A plasma cutting machine G1313
-
1300*1300mm plasma cutter G1313
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | GRACE | Model Number | G1313 | |
| Voltage | 220V | Certification | CE | |
| Warranty | 12 months |
Product Description

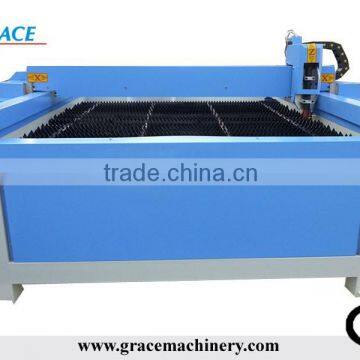

high quality metal cutting CNC Plasma Machine G1313
Product features:
- Working Area : 1300*1300mm
- Cutting Tickness : (ss steel) 0-15mm
- Cutting Speed : 0-8000mm/min
- Moving Speed :0-50000m/min
- Power :8.5KW-10.5KW
- Input Voltage :380V
- Power Frequency :50HZ
- Flies Transfer : USB Interface
- Arc :Untouched Arc Striking
- famous plasma power supply which with the high quality precision, more stable, and long life span.
- Multifuntional software support.It can convert CAD file to program file in computer, through USB flash drive transmits to machine to realize cutting allkinds’ graphs. And also can program and operate directly on the machine.
- Servo motors and step motors optional
- 4. Colors can choose, according to customers preferences
Application
tal cutting machine: professional metal cutting, drilling, can process on very tiny metals.
2.It can cut a lot of metal , like gold, silver , copper , iron , aluminum , steel , etc
Specifications:
Plasma Cutting Machine | ||||
Model | G6090 | G1225 | G1313 | G1530 |
Power supply | USA famous brand Hypertherm power supply or China brand power supply | |||
Voltage | 220±10%VAC 50/60Hz 220W | |||
Cutting mode | O2 | |||
Effective cutting range(mm) | 600×900 | 1200×2500 | 1300×1300 | 1500×3000 |
Track Holder Quantity | 2 | 3 | 3 | 3 |
Track Holder L×W×H(mm) | 500×80×40 | |||
Cutting speed(mm/min) | 0-3500 (Max 4000 available) | |||
Cutting thickness(plasma)(mm) | 2-8mm (O2) | |||
Move precision | ±0.2mm/m | |||
Torch | electric height adjustment(±60mm) | |||
Host weight(kg) | 19 | |||
Total weight(kg) | 350 | 630 | 850 | 950 |
Oxygen pressure(Mpa) | Max0.7 | |||
Emergency stop | Yes | |||
Working temperature | -5~45°C | |||
Relative humidity | ||||
Standard configuration is 2# cutting nozzle if no special requirement. | ||||
Tailor-made track if request. | ||||
Samples
Parts of machine photos
Other pictures:
Shipping terms
By sea
Payment terms
1. T/T(Telegraphic transfer)
2. L/C at sight
3. ESCROW
4. Western Union
5. shipping by sea, pay 50% in advance, the balance against copy of B/L.
Advantage
1.Competitive prices
2.Good reputation, Attentive service.
3.Excellent quality
4. Fast delivery
