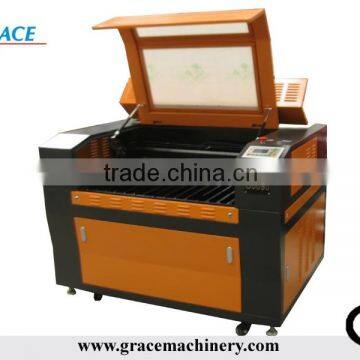

80w wedding paper box cutting laser machine G6090

Laser power :

80W (optional)

Laser tube type:

CO2 glass tube

Power supply:

AC220±10, 50 HZ/ or   AC110±10, 50 HZ

Cooling way:

Water cooled with protection system

Working area:

600mmx900mm

Max travel speed:

60000mm/min

Worktable:

Honey comb worktable (mainly engraving and small pieces cutting) /aluminum knife (engraving and cutting) /normal table (engraving) (optional)

Locating precision:

<0.01mm

Min shaping character:

Character:2mm,letter:<1mm

Operating temperature:

5°C-35°C

Working humidity

5%-95%(without condensed water)

Resolution ratio:

4500dpi

Control configuration:

DSP5.3

Data transfer interface:

USB(offline)

System environment:

WINDOWS 2000/WINDOWS XP/ windows 7

Graphic format supported:

The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) etc.

Compatible software

CorelDraw, AutoCAD, Photoshop, laser cut software

Cutting thickness

0-20mm also (depends on different material)

Color separation

Separation of cutting up to 256 colors

Sloping engraving

Yes, slope can be designed discretionarily

Cuts off the water supply the protection

yes

Whole machine dimension

1360*1010*1070(mm)

Gross weight

300kgs

packing

Plywood case (veneer wood case for export)

Optional parts

1. RECI type laser tube (8000-10000 hours life time)

2. Bigger power tubes (100w, 130w, 150w etc)

3. High-grade cooling system (from 100w or bigger than 100w better to choose this)

4. double-head or more heads

5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc)

6. irregular rotary clamp

7. servo motor

8. Red pointer

9. Ball screw transfer

10. Auto feeding system etc.

Note:Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks.
